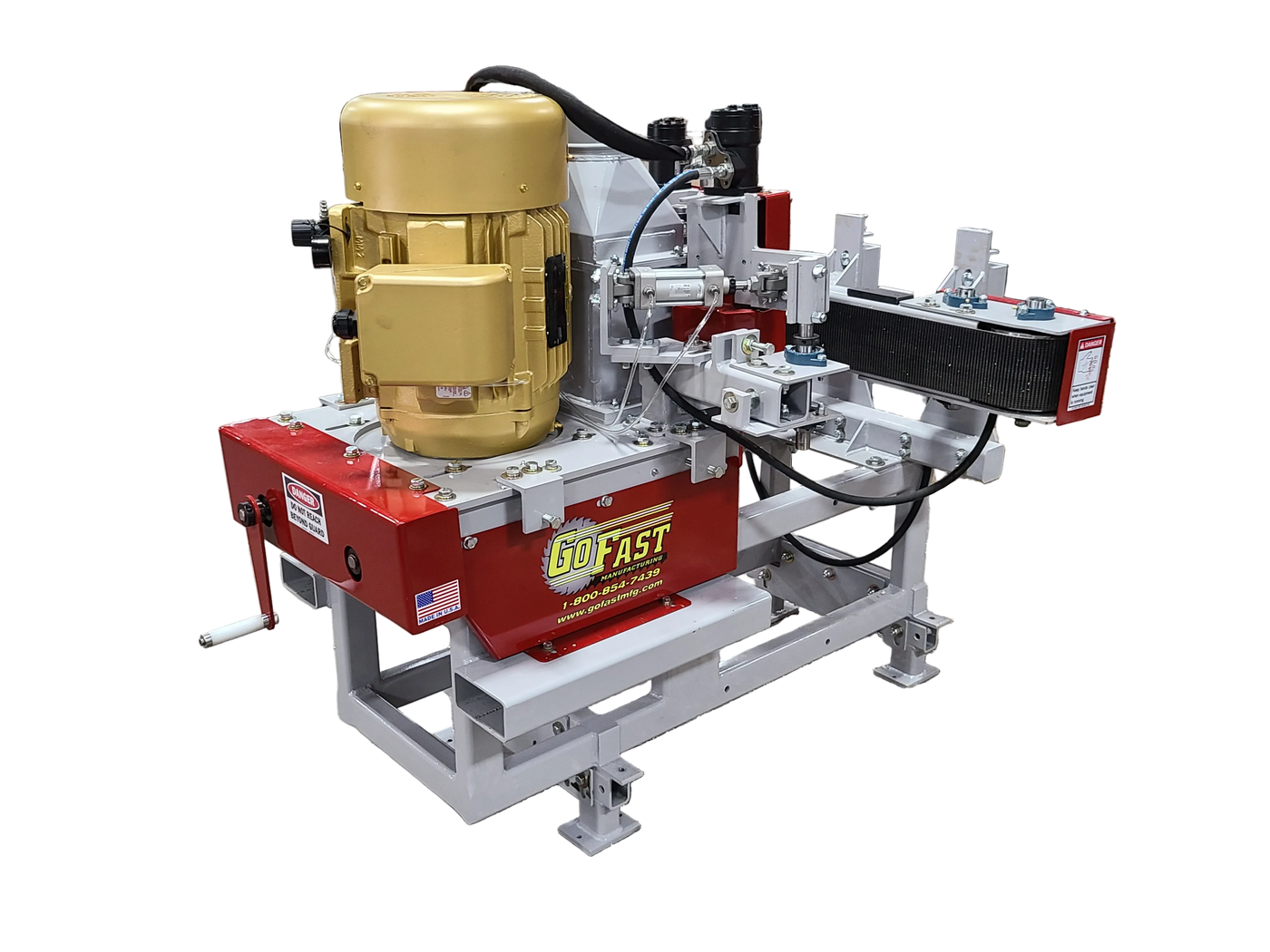

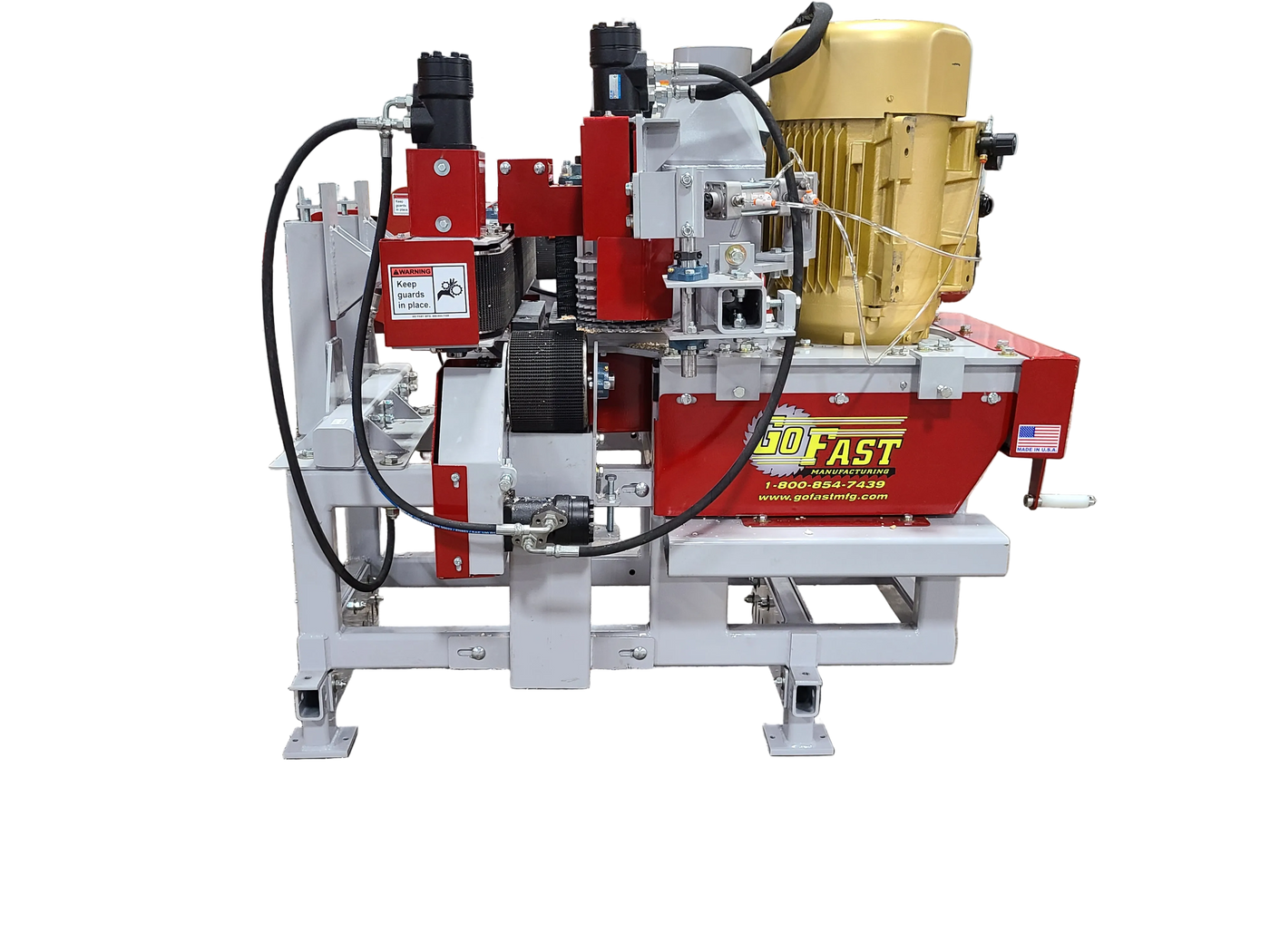

Vertical Sizer
Want a simple, compact, and cost-effective solution for sizing your material? The Go-Fast Sizer delivers reliable performance in a streamlined, heavy-duty design built for safety and easy maintenance. Powered by a 30 HP motor, it features a vertically mounted winged cutter head that efficiently removes excess material to bring cants or boards down to precise dimensional width. Capable of removing up to 1/4" x 8" of green hardwood at 90 FPM, it offers both power and productivity.
Commonly integrated into Go-Fast Resaw systems, these sizer heads can also be customized to fit virtually any cant cutting application—inside or outside your saw line. With a simple hand crank for quick depth-of-cut adjustments, the Go Fast Sizer keeps operation straightforward while maximizing throughput.
CLICK ON THE VIDEOS BELOW TO SEE OUR SIZERS IN ACTION
Overview
- Designed for consistent use and efficient material removal
- Engineered for optimal performance and seamless operation
machine details
6" Powered Belt Conveyor
Powered Hold-Over Sprocket Rollers
Top Mounted Steel Hold Down Wheel
Adjustable Depth of Cut via Hand Crank
Removes 1/4” x 8” of Green Hardwood at 90 FPM
30HP Motor 3PH (Standard)
4-Groove Belt & Pulley Drive
3,600 RPM, 2” Cutter Head Arbor
Hydraulic System w/ Variable Feed Speed
0 – 120 FPM
Adjustable Air Hold-Over System
50 – 150 PSI Input Pressure
(1) 6" Dust Port
1,300 CFM Recommended
Enclosed Cutter Head
Enclosed Conveyor Belt Drives
Belt Guards
Full-Perimeter Guarding
134" Long x 70" Wide x 57" Tall (Stand-Alone)
52" Long x 65" Wide x 52" Tall (Inline)
34" Feed Belt Height
3x2 & 6x2 Tubular Framing
Heavy-Duty 1/2" Steel Motor & Cutter Head Mounting
Dodge Industrial Arbor Bearings
0” – 3/4”
Up to 6"
18" Minimum
3/8" – 8" (Standard)
3,000–7,000 Chain Lug Cycles Per Hour
Rotating Board Kick-Off Fingers
Catch Hooks for Doubled Boards
Thickness Limiter Bar
Seamless Conveyor Surface
Flat-Top Design Minimizes Angular Transitions
5-Strand 2060 Infeed
Evenly Spaced Cogs
UHMW Wear Strips
See-Through Guarding
Quick-Access Doors
Optional E-Stop Door Interlock
2HP Electric Motor
Welded Steel Frame
3/8" Thick Steel Plate Pit
3x2 Structural Steel Framing
1/4" Thick Steel Side Plates
Taller Cutter Head (Increases Maximum Cut Height to 12")

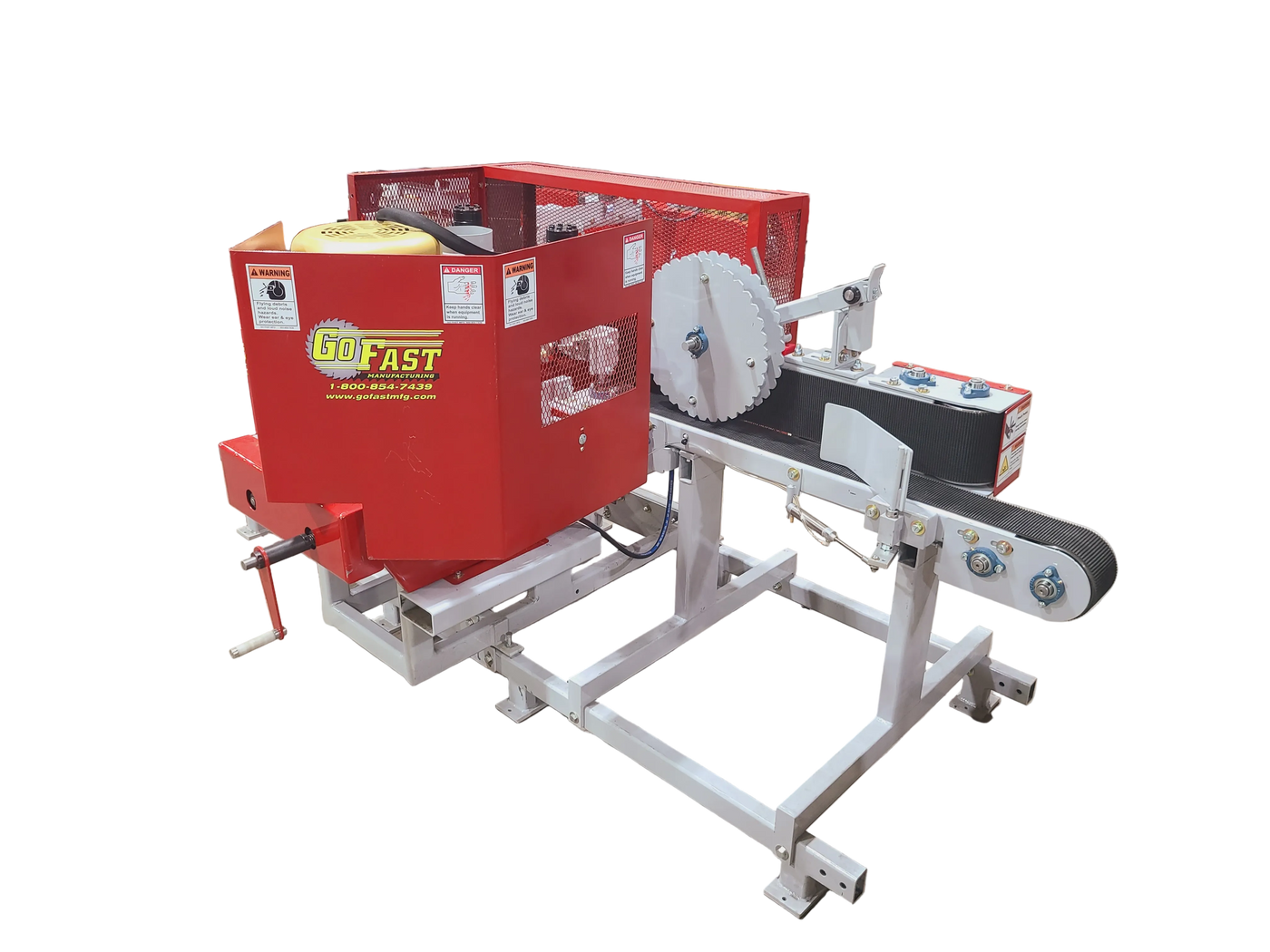

Stand-Alone Option:
4' Infeed & Outfeed Conveyors w/ Air Hold-Over Plates
8" Tall Vertical Side Feeder Conveyor Belt
Self-Contained Hydraulic Power Unit
Single or Multi-Head Resaw Systems
DeDusters
Infeed/Outfeed Powered Roll Cases
Tailing Belt
Custom Data Collection Reports
Accessible via HMI or Email
Interfaces with Go Fast Machinery
Supports Custom Add-On E-Stops, Buttons & Sensors
Remote Access for Go Fast Engineering
Advanced Off-Site Diagnostics
Live Troubleshooting Screen in HMI
Displays Faults & Sensor States
Quick Diagnostic Access.
Board Counts
Machine Hours
Production Reports
1/3HP Electric Motor
Actuated Transition Plates
Toggle Switch to Air Cylinders
Dual 2060 Cogged Chain Strands
Seamless UHMW Transitions
Smooth Transfer to Board Stackers
