Lumber Unscrambler Systems

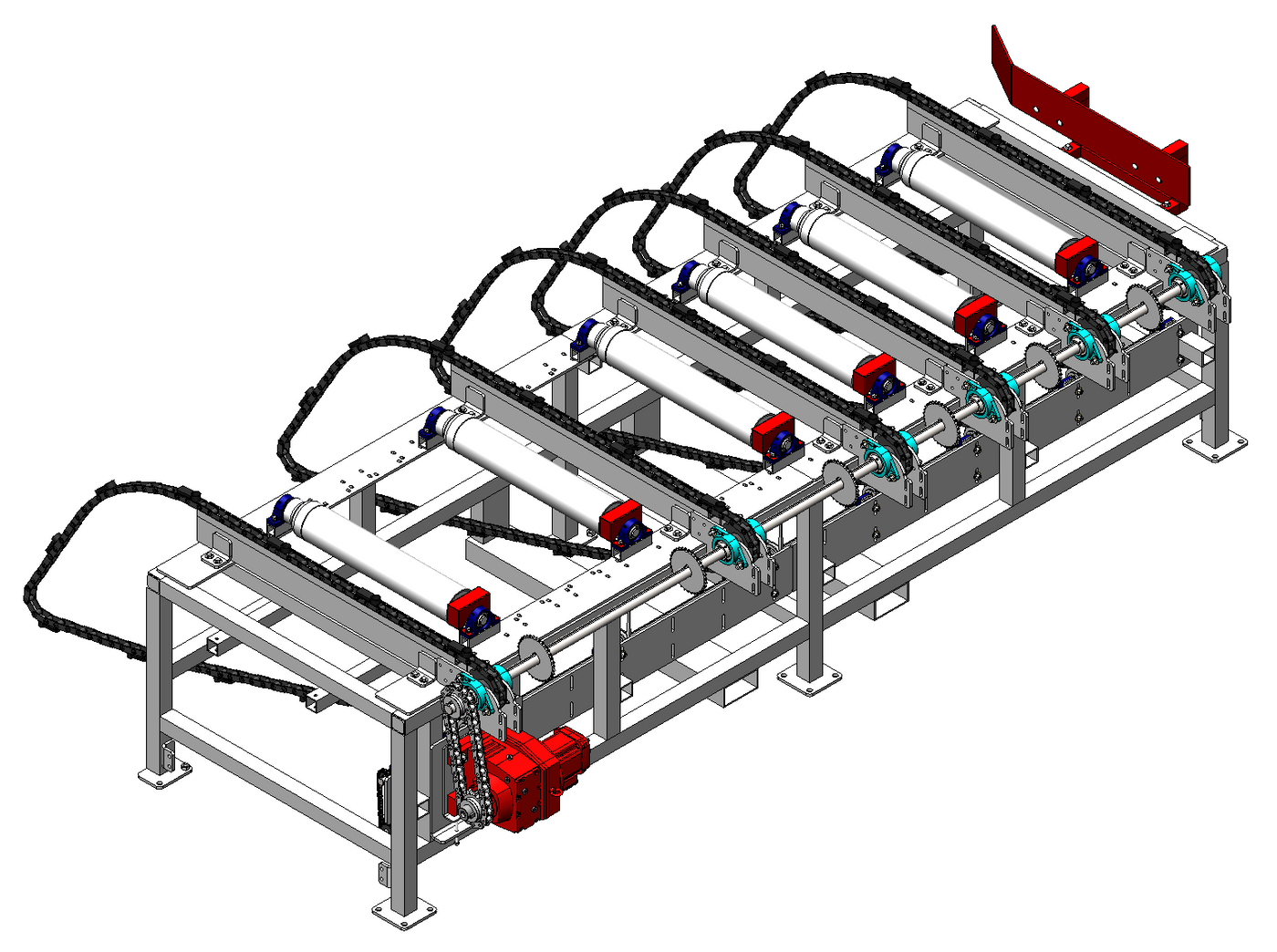

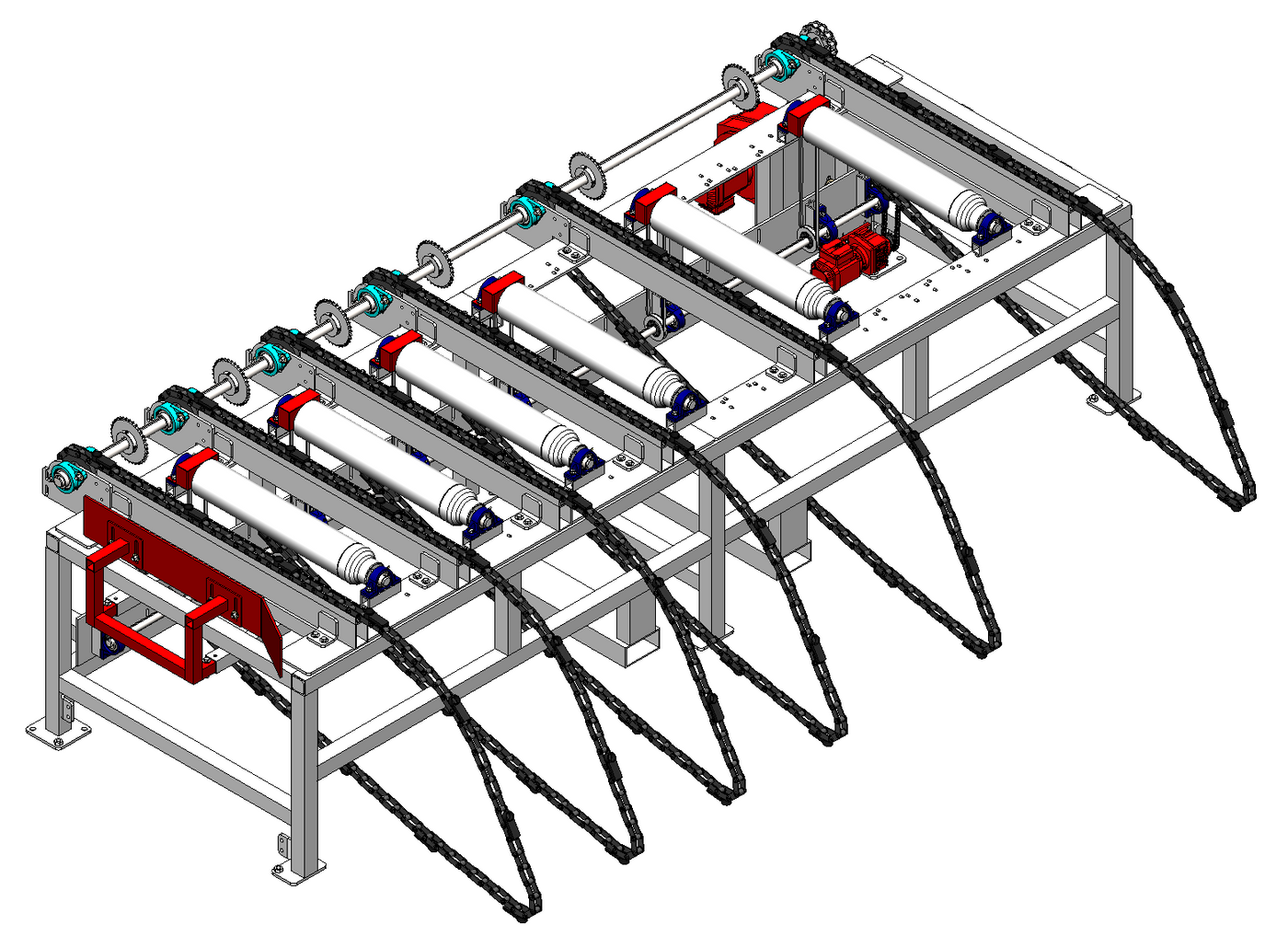

Even-End Rollers
The Even-End Roller Section is designed to square and align product ends before they enter the next stage of processing. By correcting orientation upstream, it ensures material is presented consistently to downstream equipment, improving feed accuracy and overall process stability.
This optional section helps reduce misfeeds, skewed loading, and operator intervention at downstream machines such as trim saws, notching equipment, or other processing stations. Proper alignment at this stage leads to smoother loading, more consistent results, and improved uptime across the system.
CLICK ON THE VIDEOS BELOW TO SEE OUR HD LUMBER UNSCRAMBLER SYSTEMS IN ACTION
machine details
3-Phase High Efficiency Helical Gearmotor
81X Heavy Mill Chain & H78 Welded Steel Sprockets
Heavy-Duty Chain Pusher Lugs
Heavy-Duty Modular Design
2" Drive Shaft
6.7" Heavy-Duty V-Belt Driven Modular Rollers
204" Long x 76" Wide x 52" Tall (20' Capacity Model)
Up to 24' (Smaller Capacities Available from 8' on up in 4' Increments)
Custom Data Collection Reports
Accessible via HMI or Email
Interfaces with Go Fast Machinery
Supports Custom Add-On E-Stops, Buttons & Sensors
Remote Access for Go Fast Engineering
Advanced Off-Site Diagnostics
Live Troubleshooting Screen in HMI
Displays Faults & Sensor States
Quick Diagnostic Access.
Board Counts
Machine Hours
Production Reports
3,000–7,000 Chain Lug Cycles Per Hour
Rotating Board Kick-Off Fingers
Catch Hooks for Doubled Boards
Thickness Limiter Bar
Seamless Conveyor Surface
Flat-Top Design Minimizes Angular Transitions
5-Strand 2060 Infeed
Evenly Spaced Cogs
UHMW Wear Strips
See-Through Guarding
Quick-Access Doors
Optional E-Stop Door Interlock
2HP Electric Motor
Welded Steel Frame
3/8" Thick Steel Plate Pit
3x2 Structural Steel Framing
1/4" Thick Steel Side Plates
Custom Frame Foot Risers (Increases Chain Infeed Height)
Additional Chain Strands & Custom Spacing (To Accommodate Varying Material Lengths)
Additional Rollers & Custom Spacing (To Accommodate Varying Material Lengths)
Even-End Rollers
Trim Saw Auto Feeder
Dealer Deck Stop Lever
Package Deck Extension
1/3HP Electric Motor
Actuated Transition Plates
Toggle Switch to Air Cylinders
Dual 2060 Cogged Chain Strands
Seamless UHMW Transitions
Smooth Transfer to Board Stackers
