Pallet Notchers

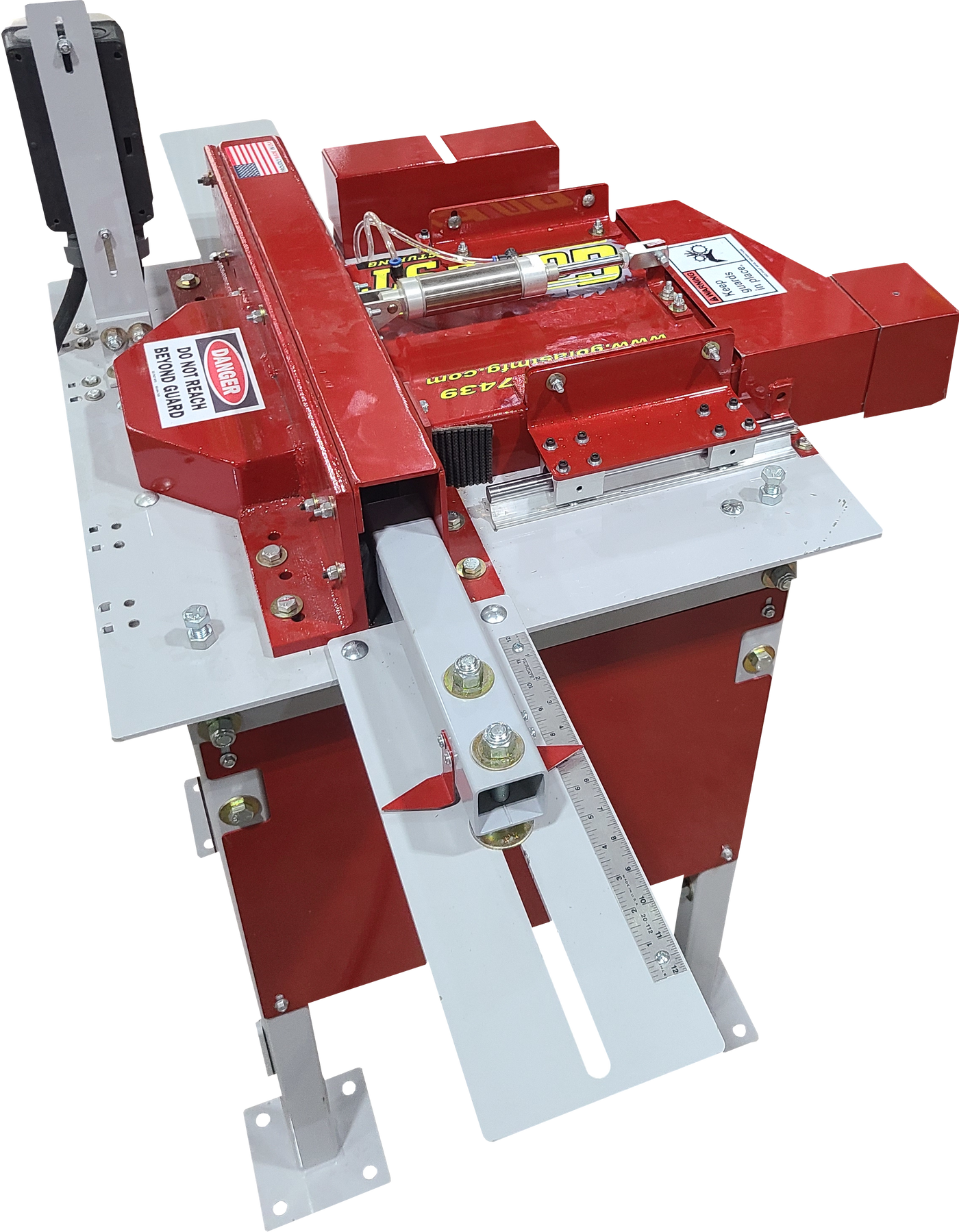

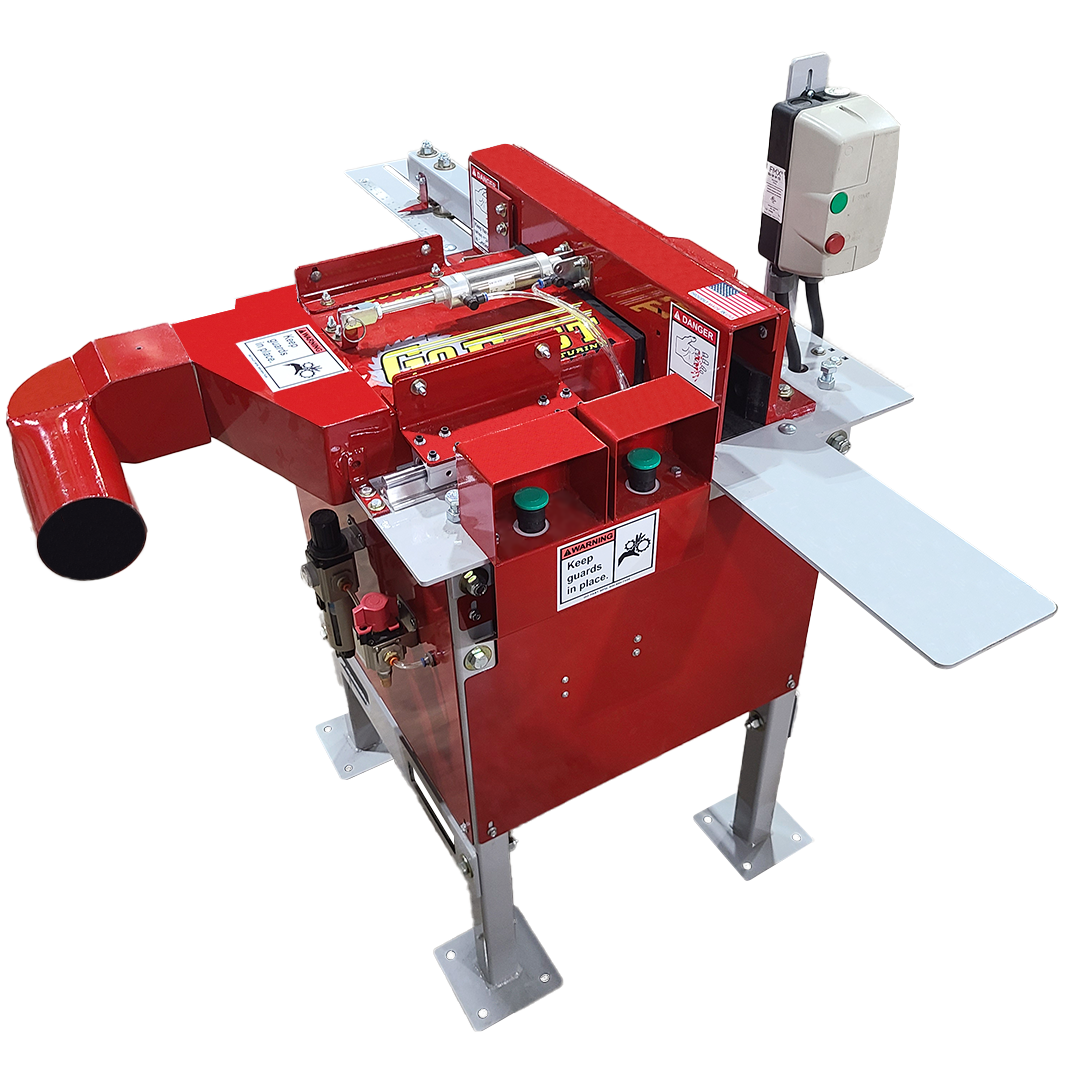

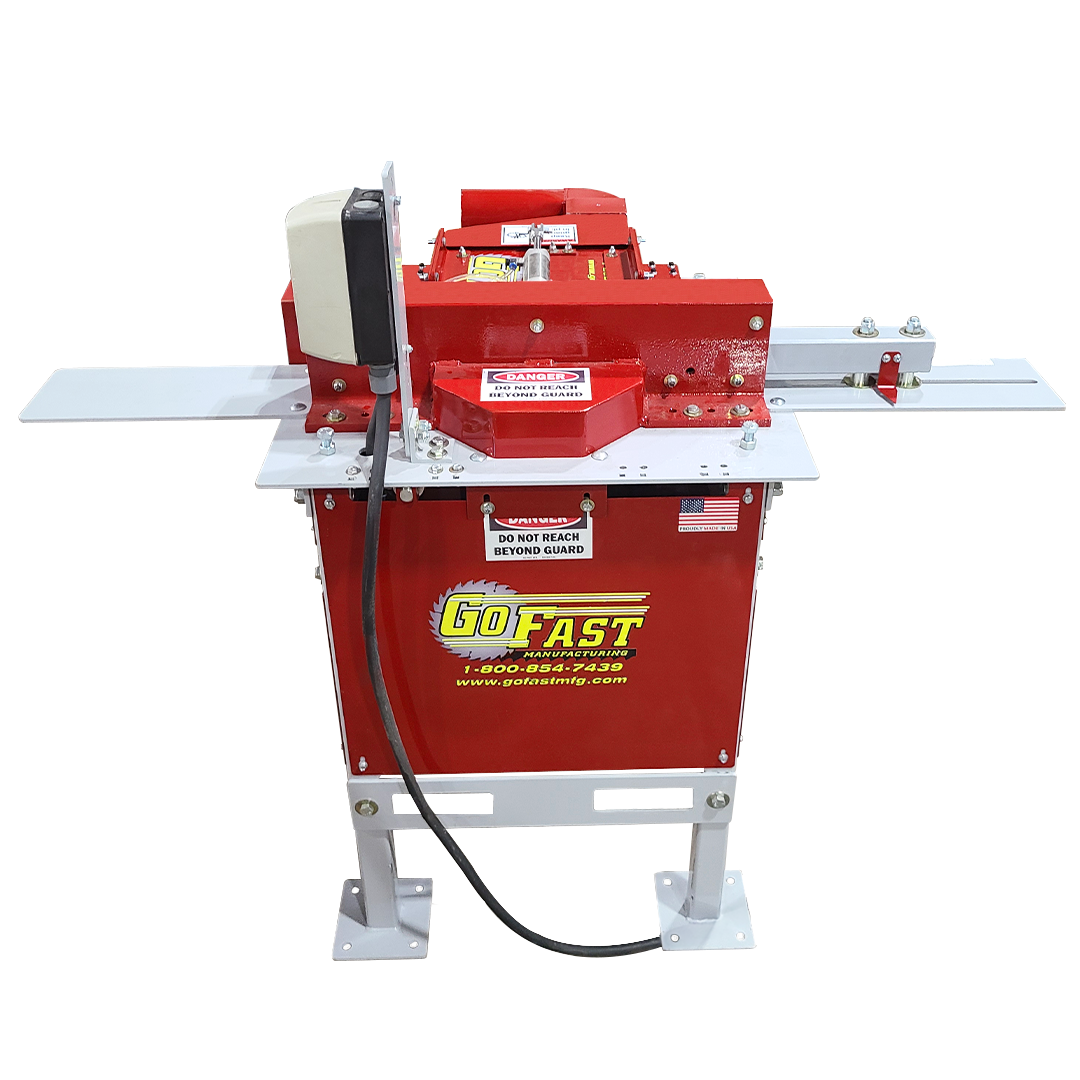

MN10 Notcher
The Go Fast MN10 Notcher is a compact, entry-level pneumatic notcher built for safe, low-volume notching.
The MN10 is effortless to operate, easy to adjust, and requires minimal maintenance. It can switch between material sizes quickly and accommodate longer-length material when needed.
With its stationary board design and non-exposed cutter, the MN10 keeps the notching process simple, comfortable, and easy for operators to learn.
CLICK ON THE VIDEO BELOW TO SEE OUR MN10 NOTCHER IN ACTION
Controls
- 2 Hand Button Controls
- Air Cylinders for Board Clamp & Notcher Head
- Adjustable Board Stop With Reference Ruler
machine details
9" Wide Indexable Carbide Notching Head
Mounted Directly to 10HP Electric Motor Shaft
Up to 240 Stringers per Hour
100 PSI Operating Pressure at 20 CFM
Includes the Following: Dual Hand Safety Controls, Lockout Valve, Regulator w/ Filter, Air Cylinders, & Meters
(1) 4” Dust Port
600 CFM Recommended
55" Long x 38" Wide x 55" Tall
36" Working Height
Heavy Duty 1/4" Thick Steel Table Top
1" Linear Bearings for Motor
5/8" Linear Bearings for Clamp
Hardened Linear Bearing Shafts
E-Stop
Dual Hand Safety Controls
Enclosed Cutter Head
1-1/2" Tall x 9" Wide
Up to 2"
Up to 72" (Longer Lengths Available)
Up to 5-1/2"
Custom Data Collection Reports
Accessible via HMI or Email
Interfaces with Go Fast Machinery
Supports Custom Add-On E-Stops, Buttons & Sensors
Remote Access for Go Fast Engineering
Advanced Off-Site Diagnostics
Live Troubleshooting Screen in HMI
Displays Faults & Sensor States
Quick Diagnostic Access.
Board Counts
Machine Hours
Production Reports
3,000–7,000 Chain Lug Cycles Per Hour
Rotating Board Kick-Off Fingers
Catch Hooks for Doubled Boards
Thickness Limiter Bar
Seamless Conveyor Surface
Flat-Top Design Minimizes Angular Transitions
5-Strand 2060 Infeed
Evenly Spaced Cogs
UHMW Wear Strips
See-Through Guarding
Quick-Access Doors
Optional E-Stop Door Interlock
2HP Electric Motor
Welded Steel Frame
3/8" Thick Steel Plate Pit
3x2 Structural Steel Framing
1/4" Thick Steel Side Plates
Single Phase or Three Phase Electric Setup
Starter Kit (Includes Cutter Maintenance Tools and Spare Teeth)
Board Length Extension Kit (96" & 120" Length Options)
Dust Collection Systems & Fittings
Locking Swivel Casters
1/3HP Electric Motor
Actuated Transition Plates
Toggle Switch to Air Cylinders
Dual 2060 Cogged Chain Strands
Seamless UHMW Transitions
Smooth Transfer to Board Stackers
Compare Our Notchers
Quick comparison to help you select the right machine for your operation.
| Machine name | ||||||
|---|---|---|---|---|---|---|
| Automation level | Fully Automated | Partially Automated | Partially Automated | Partially Automated | Partially Automated | Partially Automated |
| Cycle rate | Up to 7,000 Stringers Per Hour | Up to 4,000 Stringers per Hour | Up to 1,750 Stringers per Hour | Up to 800 Stringers per Hour | Up to 540 Stringers per Hour | Up to 240 Stringers per Hour |
| Material capacity | Up to 2-1/2" Wide X 4" Tall | Up to 8" Wide X 4" Tall | Up to 6" Wide X 4" Tall | Up to 6" Wide X 4" Tall | Up to 6" Wide X 4" Tall | Up to 2" Wide X 5-1/2" Tall |
| Power options | 30HP 3-Phase Standard | 20HP 3-Phase Standard | 20HP 3-Phase Standard | 20HP 3-Phase Standard | 20HP 3-Phase Standard | 10HP 3-Phase Standard |
