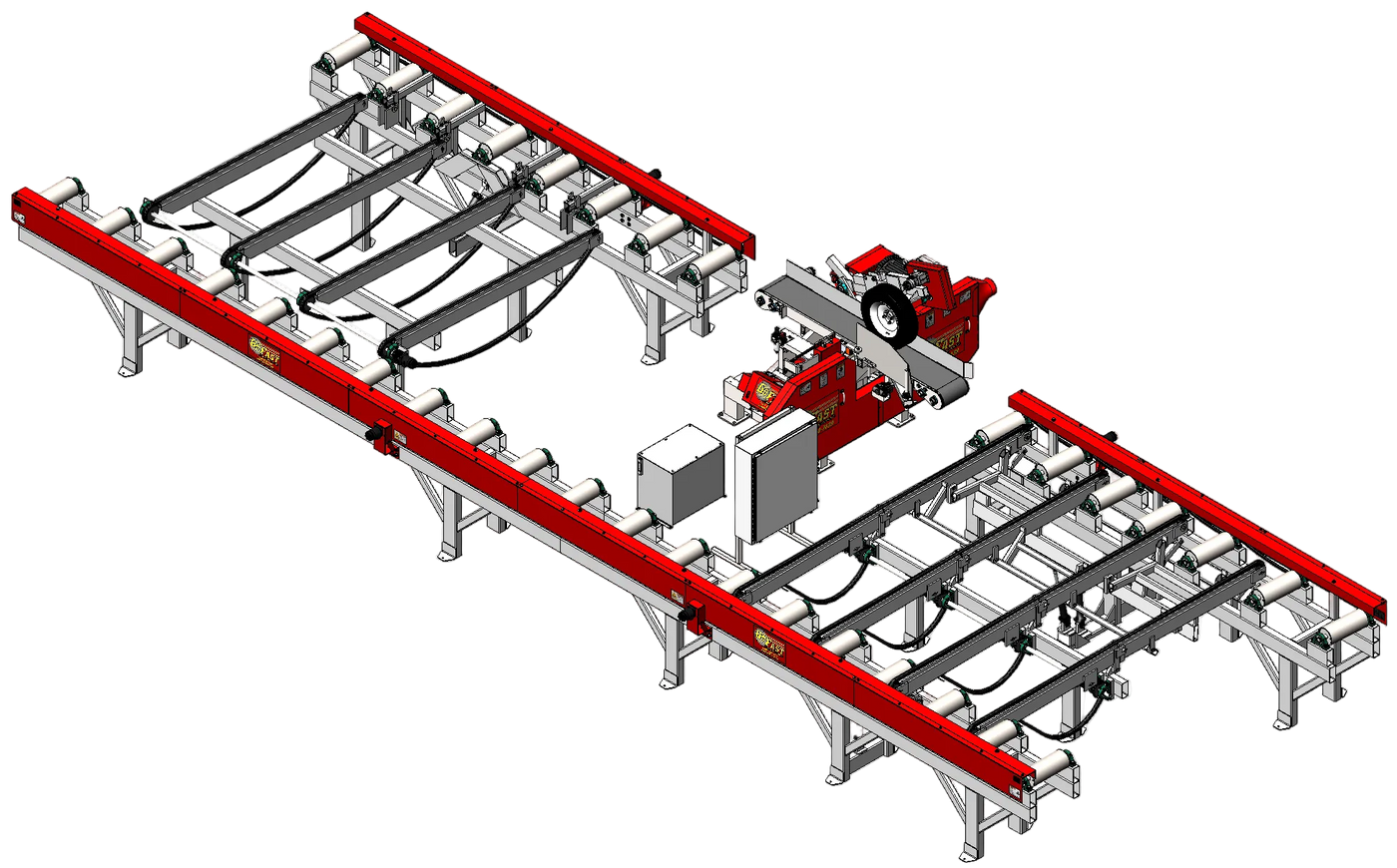

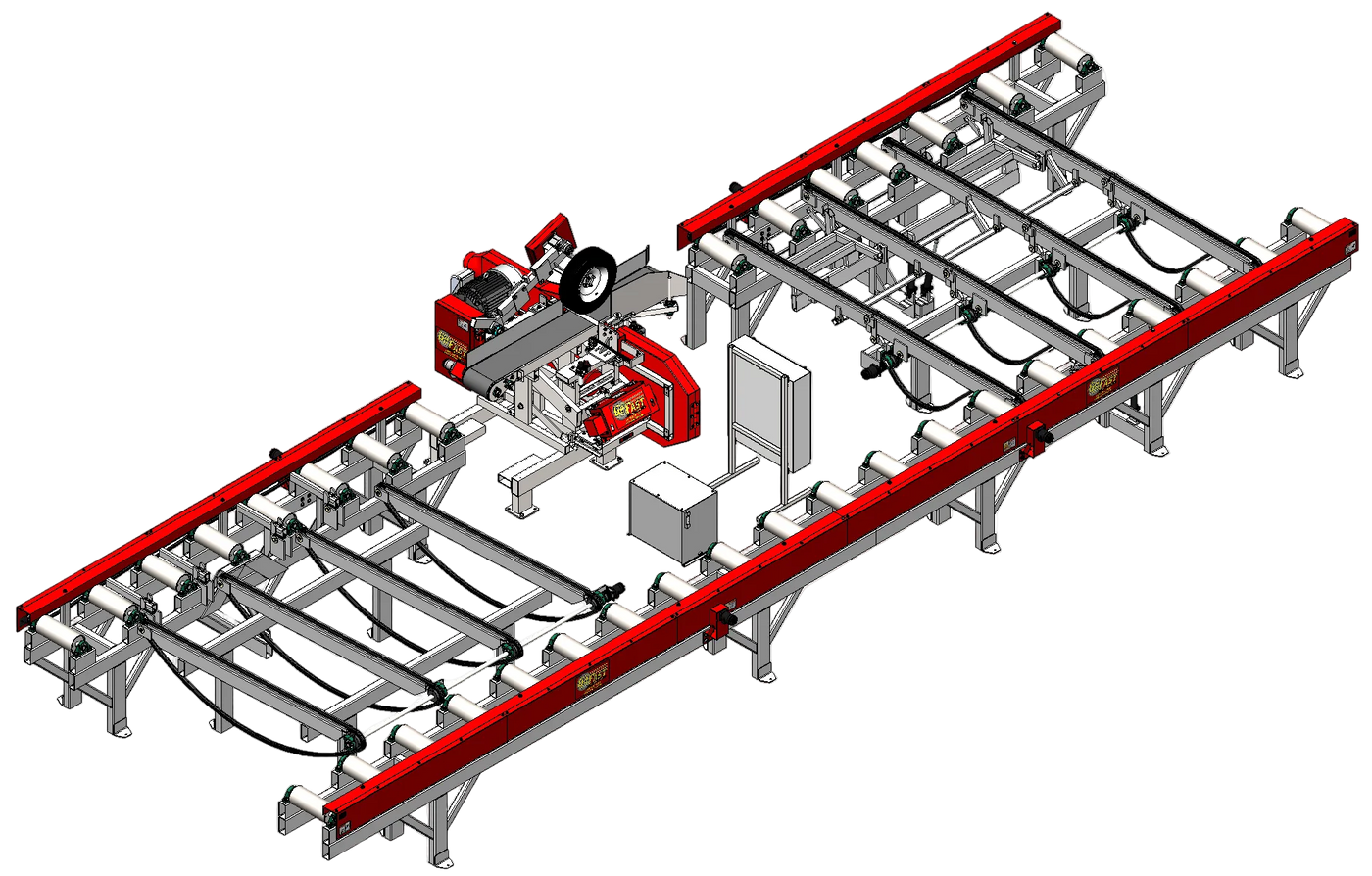

grade run around system
The Go-Fast Run Around Grade System is a high-capacity, robust, and cost-effective solution for all your grade sawing needs. Designed for simplicity and ease of use, it offers straightforward operation, making it perfect for those seeking efficiency with minimal complexity.
This comprehensive system includes a heavy-duty, low-profile grade saw, outfeed rolls with cant tipper, heavy-duty cross-chains, infeed chains with cant tipper, variable feed speed, quick-adjust blade tracking, and more—everything you need for seamless performance. The grade system is a thin Kerf sawing operation which offers up to 30% higher yield compared to traditional circle sawing methods, boosting productivity and maximizing efficiency.
CLICK ON THE VIDEOS BELOW TO SEE OUR RESAWS IN ACTION
Overview
- Designed for medium to high levels of production
- Engineered for optimal performance and seamless operation
machine details

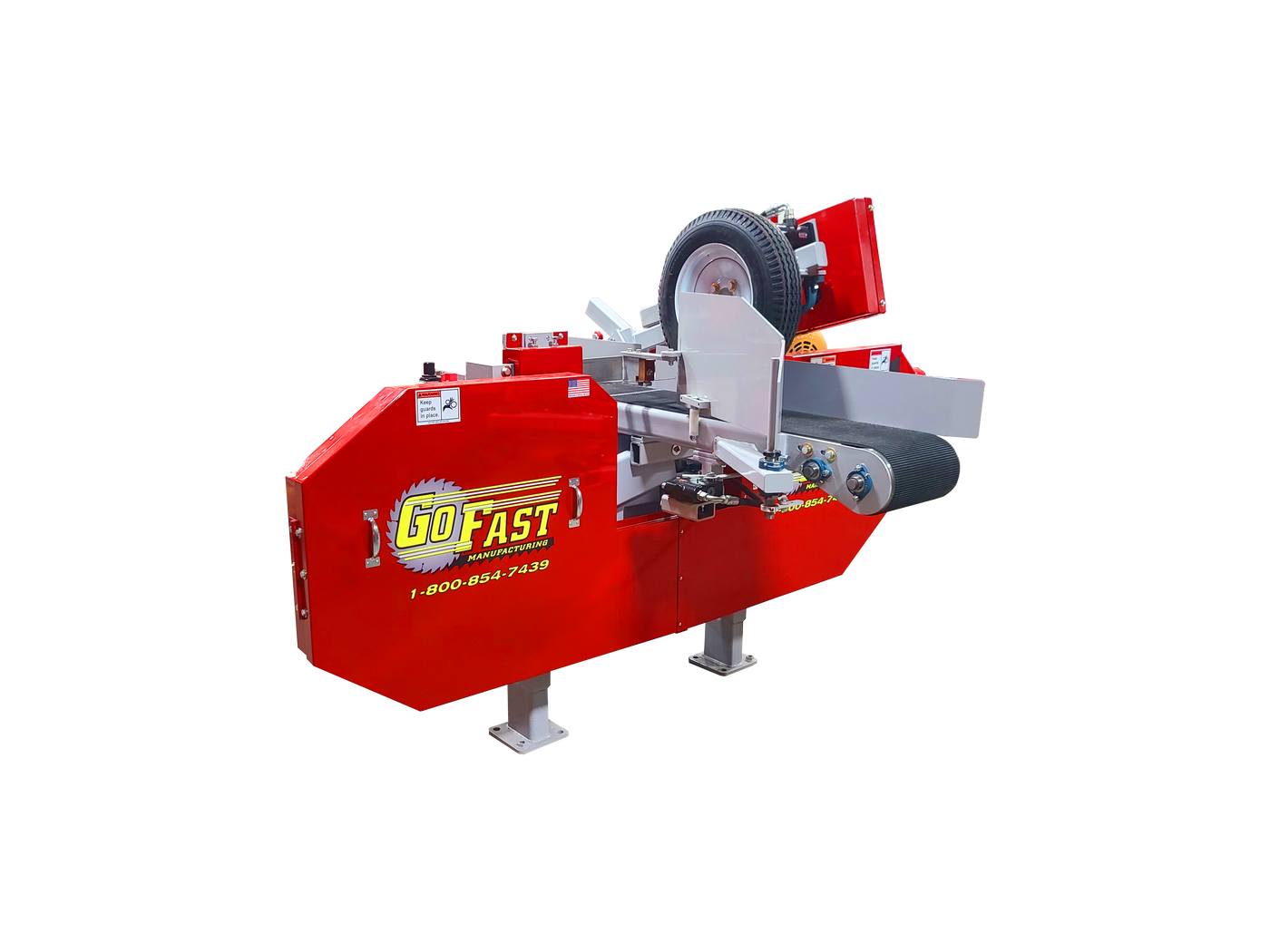

16" Master Grade Resaw
PLC Setworks and Controls
Cant Deck w/ Stops and Turners
Blade: 30HP Motor 3-Phase
Hydraulic Pump: 15HP Motor 3-Phase
Self Contained Hydraulic System w/ Variable Feed Speed
0 – 120 FPM
Adjustable Air Blade Tension System
80 – 150 PSI Input Pressure
(1) 6” Dust Port
900 CFM Recommended
Blade & Belt Guards
32' Long x 16' Wide
44" Feed Belt Height
6x3 Tubular Framing
Heavy-Duty 2-7/16" Arbors & Bearings
30" Solid Steel Dynamically Balanced Band Wheels
Up to 16"
Up to 16"
Up to 16' (Standard)
3/4" – 9-1/2" from Conveyor Belt
3,000–7,000 Chain Lug Cycles Per Hour
Rotating Board Kick-Off Fingers
Catch Hooks for Doubled Boards
Thickness Limiter Bar
Seamless Conveyor Surface
Flat-Top Design Minimizes Angular Transitions
5-Strand 2060 Infeed
Evenly Spaced Cogs
UHMW Wear Strips
See-Through Guarding
Quick-Access Doors
Optional E-Stop Door Interlock
2HP Electric Motor
Welded Steel Frame
3/8" Thick Steel Plate Pit
3x2 Structural Steel Framing
1/4" Thick Steel Side Plates
Single or Multi-Head Configurations
Band Lube System
Infeed/Outfeed Transfers
Smaller Capacities
20' Length Capacity
Infeed Package Deck
Longer Rollers & Transfer Chains
Bi-Directional Cant Flipper
Tailing Conveyors & Green Chains
Board Edger
Board Trimmer
Custom Data Collection Reports
Accessible via HMI or Email
Interfaces with Go Fast Machinery
Supports Custom Add-On E-Stops, Buttons & Sensors
Remote Access for Go Fast Engineering
Advanced Off-Site Diagnostics
Live Troubleshooting Screen in HMI
Displays Faults & Sensor States
Quick Diagnostic Access.
Board Counts
Machine Hours
Production Reports
1/3HP Electric Motor
Actuated Transition Plates
Toggle Switch to Air Cylinders
Dual 2060 Cogged Chain Strands
Seamless UHMW Transitions
Smooth Transfer to Board Stackers

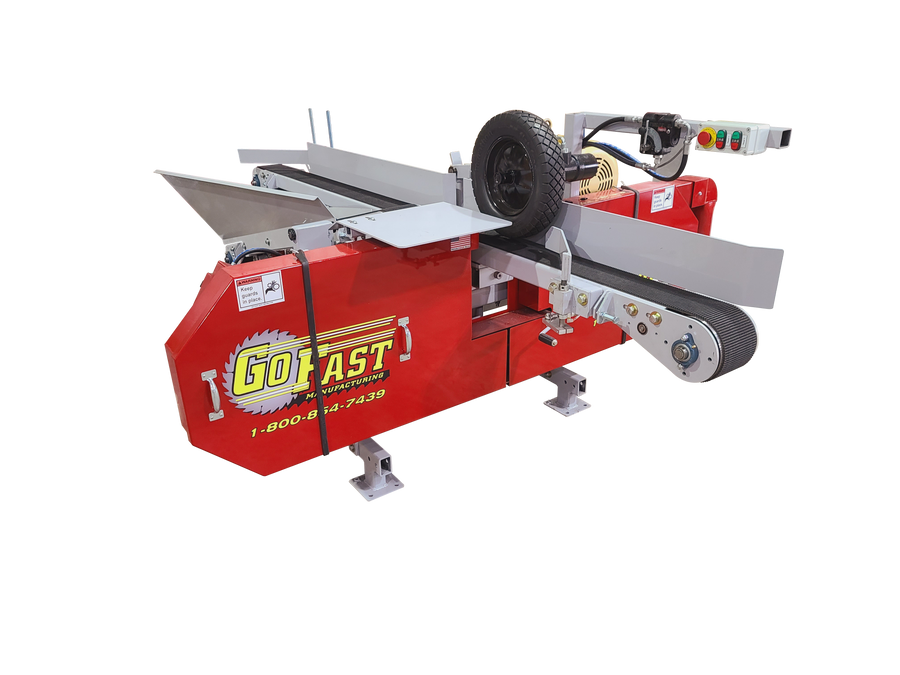

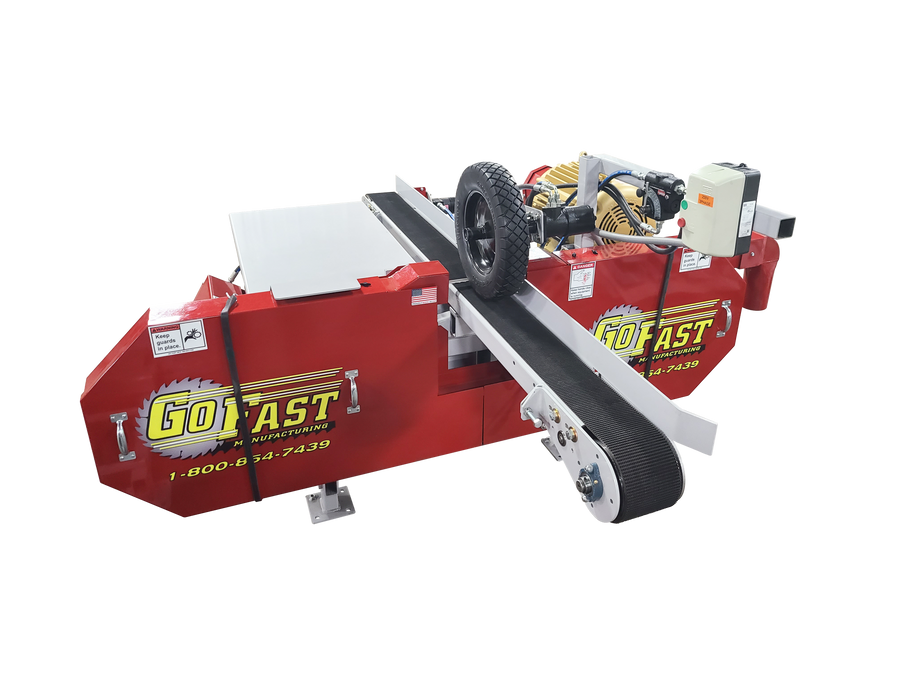

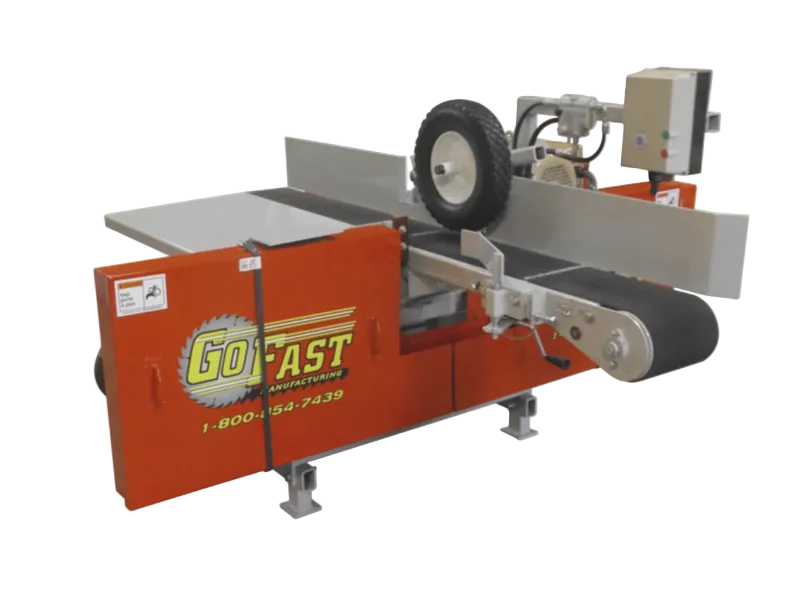

Compare Our Resaws
Quick comparison to help you select the right machine for your operation.
| Machine name | |||||
|---|---|---|---|---|---|
| Feed Rate | Up to 120 FPM | Up to 120 FPM | Up to 120 FPM | Up to 80 FPM | Up to 120 FPM |
| Material capacity | Up to 6" Wide | Up to 8" Wide | Up to 12" Wide | Up to 16" Wide | Up to 16" Wide |
| Power options | 15HP 3-Phase Standard | 15HP 3-Phase Standard | 20HP 3-Phase Standard | 20HP 3-Phase Standard | 30HP 3-Phase Standard |
| Typical material use | Low – Medium Volume Production | Low – Medium Volume Production | Low – Medium Volume Production | Low – Medium Volume Production | Medium – High Volume Production |
