Lumber Unscrambler Systems

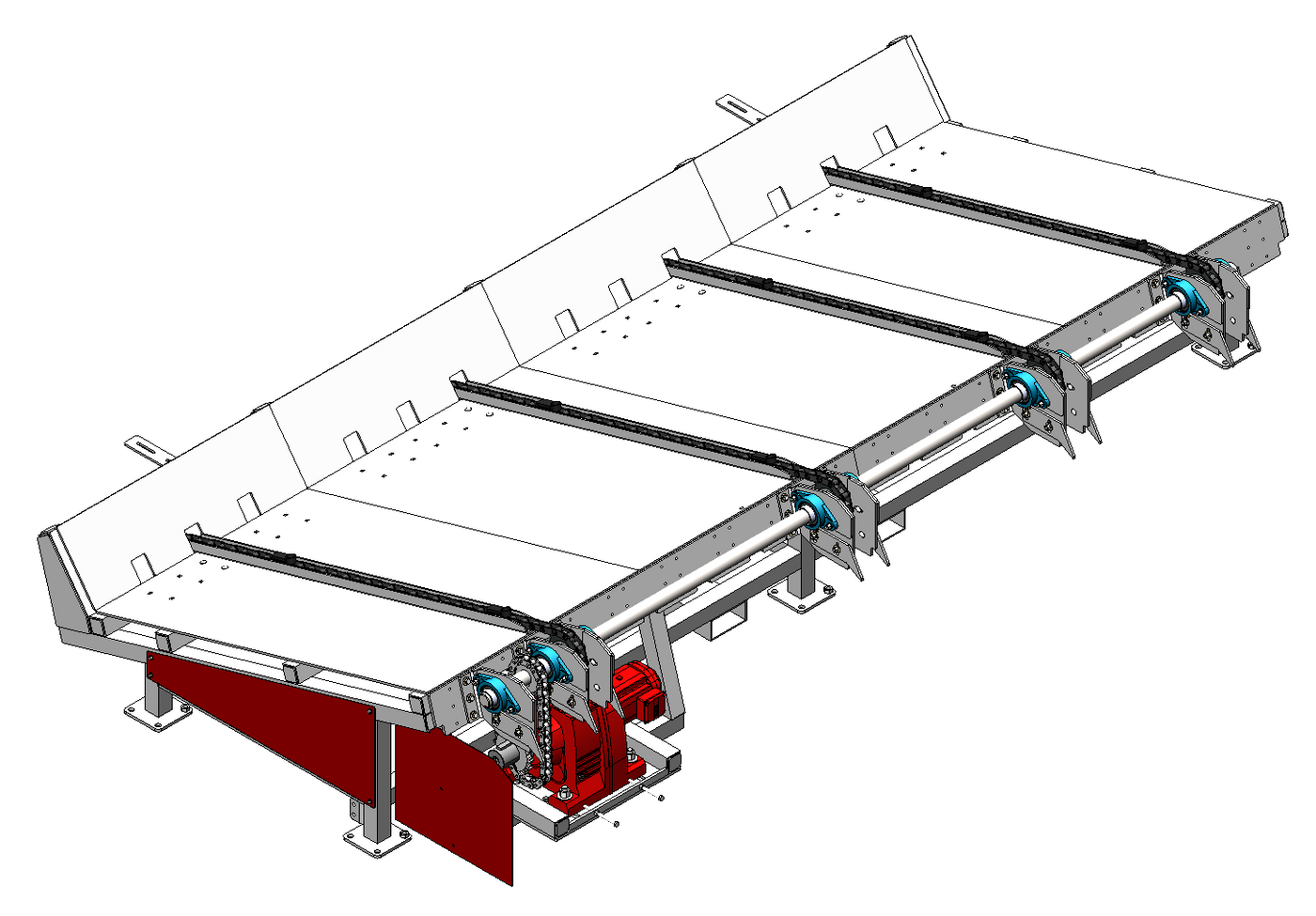

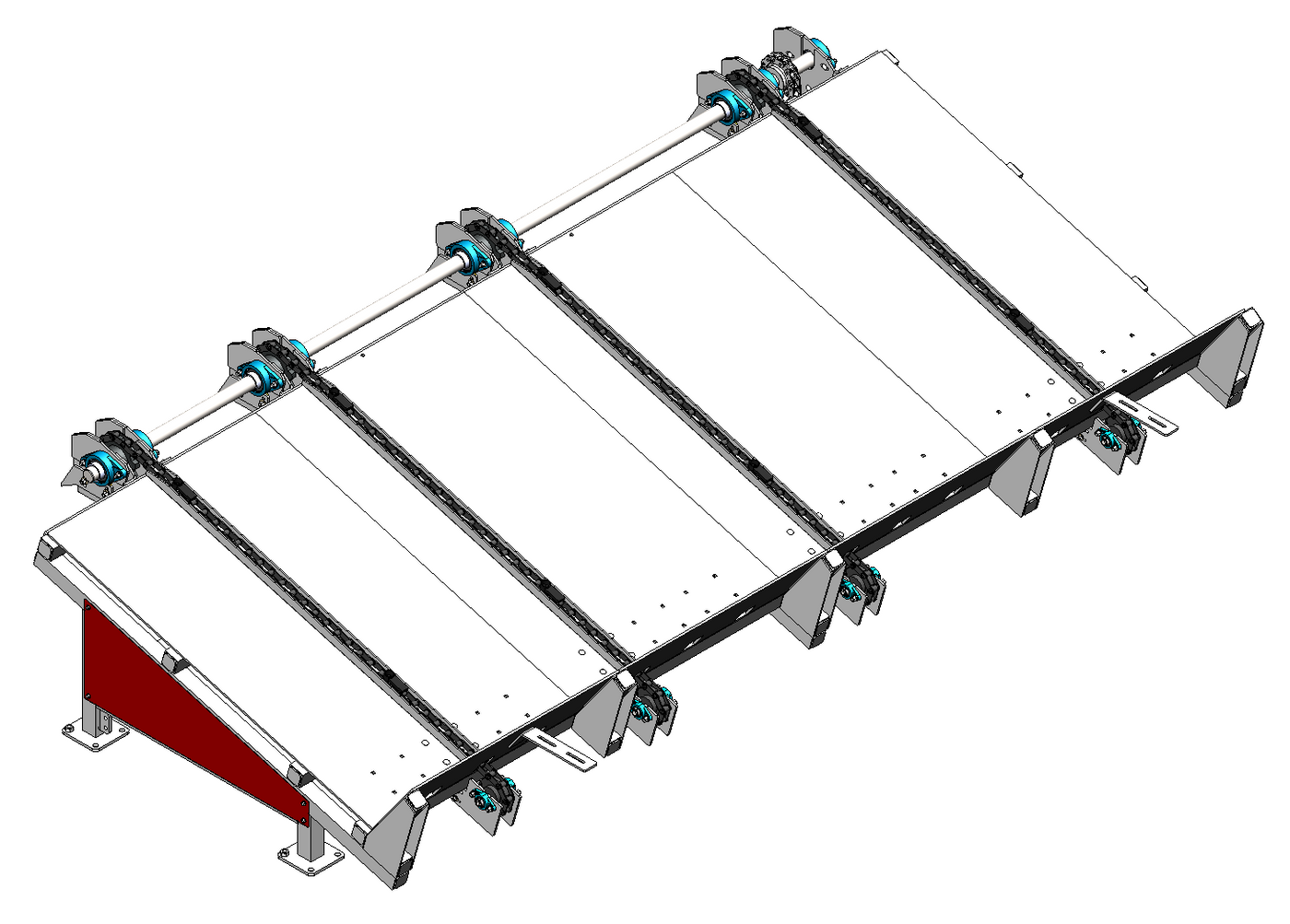

Break-Over Deck
The Break-Over Deck is a transitional deck that prevents over filling of the V-Pit. Using chain lugs and controlled motion, it feeds material steadily into the unscrambling system so boards arrive in manageable quantities in the V-pit.
By breaking up bundles before they reach the V-Deck, the Break-Over Deck reduces random movement, improves flow consistency, and minimizes jams ahead of the unscrambling stage. This results in smoother operations and more reliable V-Deck performance in high-throughput environments.
Optional but recommended, the heavy-duty Break-Over Deck is built to handle continuous production while reducing material damage and preventing problems before they start.
CLICK ON THE VIDEOS BELOW TO SEE OUR HD LUMBER UNSCRAMBLER SYSTEMS IN ACTION
machine details
3-Phase High Efficiency Helical Gearmotor
81X Heavy Mill Chain & H78 Welded Steel Sprockets
Heavy-Duty Chain Pusher Lugs
Heavy-Duty Modular Design
2-7/16" Drive Shaft
Four-Bolt Chain Idler Tensioners
197" Long x 102" Wide x 38" Tall (20' Capacity Model)
Up to 24' (Smaller Capacities Available from 8' on up in 4' Increments)
Custom Data Collection Reports
Accessible via HMI or Email
Interfaces with Go Fast Machinery
Supports Custom Add-On E-Stops, Buttons & Sensors
Remote Access for Go Fast Engineering
Advanced Off-Site Diagnostics
Live Troubleshooting Screen in HMI
Displays Faults & Sensor States
Quick Diagnostic Access.
Board Counts
Machine Hours
Production Reports
3,000–7,000 Chain Lug Cycles Per Hour
Rotating Board Kick-Off Fingers
Catch Hooks for Doubled Boards
Thickness Limiter Bar
Seamless Conveyor Surface
Flat-Top Design Minimizes Angular Transitions
5-Strand 2060 Infeed
Evenly Spaced Cogs
UHMW Wear Strips
See-Through Guarding
Quick-Access Doors
Optional E-Stop Door Interlock
2HP Electric Motor
Welded Steel Frame
3/8" Thick Steel Plate Pit
3x2 Structural Steel Framing
1/4" Thick Steel Side Plates
Custom Frame Foot Risers (Increases Chain Infeed Height)
Additional Chain Strands & Custom Spacing (To Accommodate Varying Material Lengths)
Automatic Lumber Conveying (Utilizes two Sensors to Keep the Break-Over Deck Full of Material)
Even-End Rollers
Trim Saw Auto Feeder
Dealer Deck Stop Lever
Package Deck Extension
1/3HP Electric Motor
Actuated Transition Plates
Toggle Switch to Air Cylinders
Dual 2060 Cogged Chain Strands
Seamless UHMW Transitions
Smooth Transfer to Board Stackers
