COMPLETE SYSTEM

AUTOMATED PALLET STRINGER PROCESSING SYSTEM

Pallet Manufacturing

Automated stringer production from lumber bundle to finished stacked pallet stringers. Engineered to reduce labor, increase throughput, and keep production flowing.

VIEW FULL PLAYLIST

System Overview

STRINGER PROCESSING SYSTEM

This system converts raw lumber bundles into finished stacks of notched pallet stringers with minimal manual handling. The line begins with a stringer tilt hoist that automatically breaks down lumber bundles, feeds material into the processing line, and prepares boards for notching. Boards are then processed by the 2NXP double head notcher before being automatically stacked by the UpSTAK board stacker.

PROCESS FLOW

From lumber bundle to finished stringer stacks.

  1. 1
    Bundle loading
    Forklift operators place bundles of lumber onto the stringer tilt hoist package deck.
  2. 2
    Automatic bundle breakdown
    The tilt hoist raises and tips the lumber bundle, feeding boards onto a break-over deck and into the V-pit unscrambler.
  3. 3
    Board singulation
    The unscrambler separates boards and meters them evenly onto the processing conveyors.
  4. 4
    Stringer notching
    Boards feed into the Go Fast 2NXP double head notcher where pallet notches are cut with high production efficiency.
  5. 5
    Automatic stacking
    Finished stringers convey to the UpSTAK board stacker where bundles are built automatically for forklift pickup.

SYSTEM COMPONENTS

Stringer Tilt Hoist
Automatically lifts and dumps lumber bundles to feed the system
2NXP Double Head Notcher
High production pallet stringer notching machine
UpSTAK Board Stacker
Automatically stacks finished stringers into uniform bundles

ENGINEERING HIGHLIGHTS

  • Bundle-to-stack automation dramatically reduces labor handling.
  • Heavy-duty Go Fast construction designed for continuous pallet plant production.
  • Integrated flow from tilt hoist to stacker keeps the line moving and increases throughput.
ENGINEERING DETAILS
SYSTEM LAYOUT PDF
Open PDF

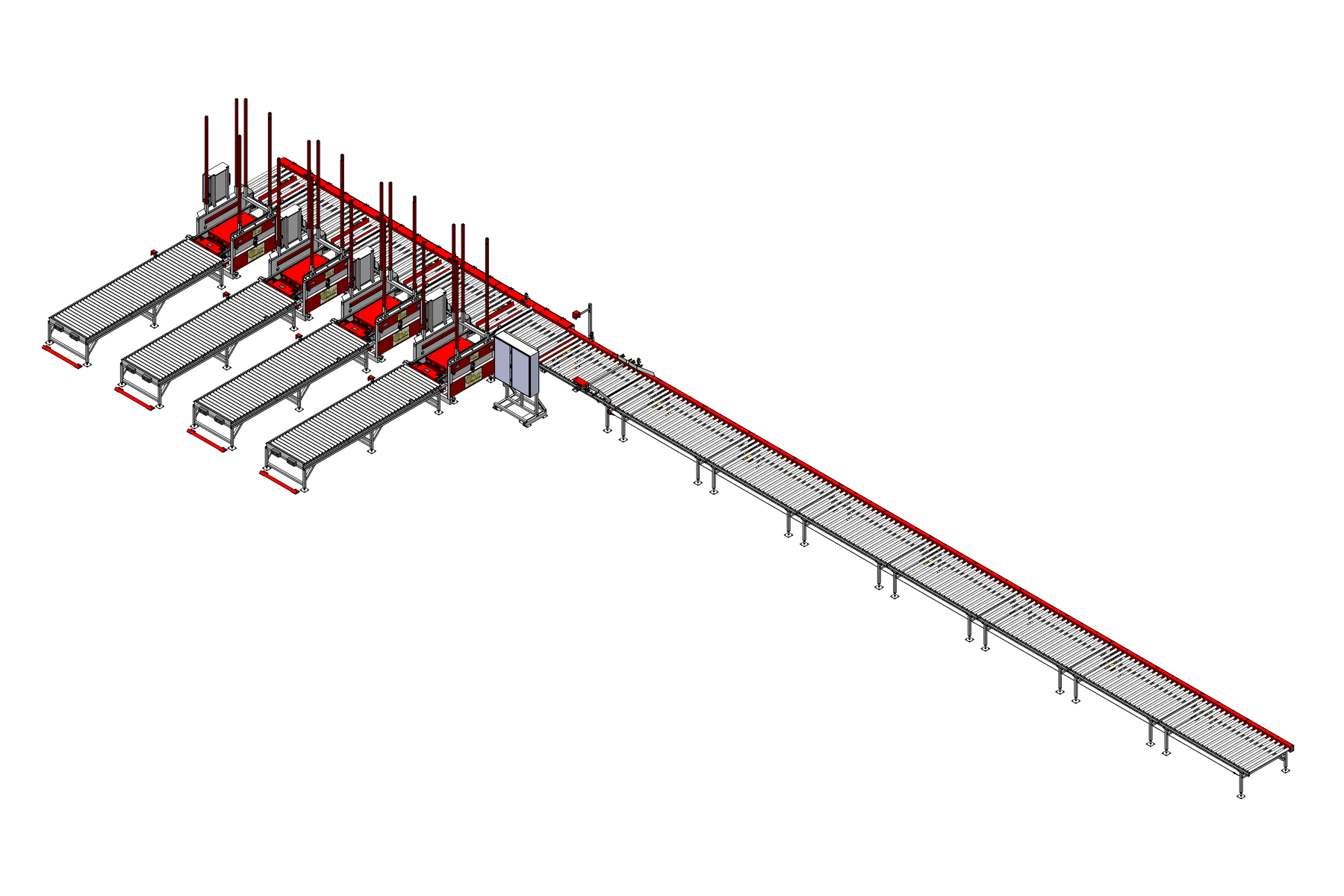

Example automated stringer processing line layout
Example automated stringer processing line layout
