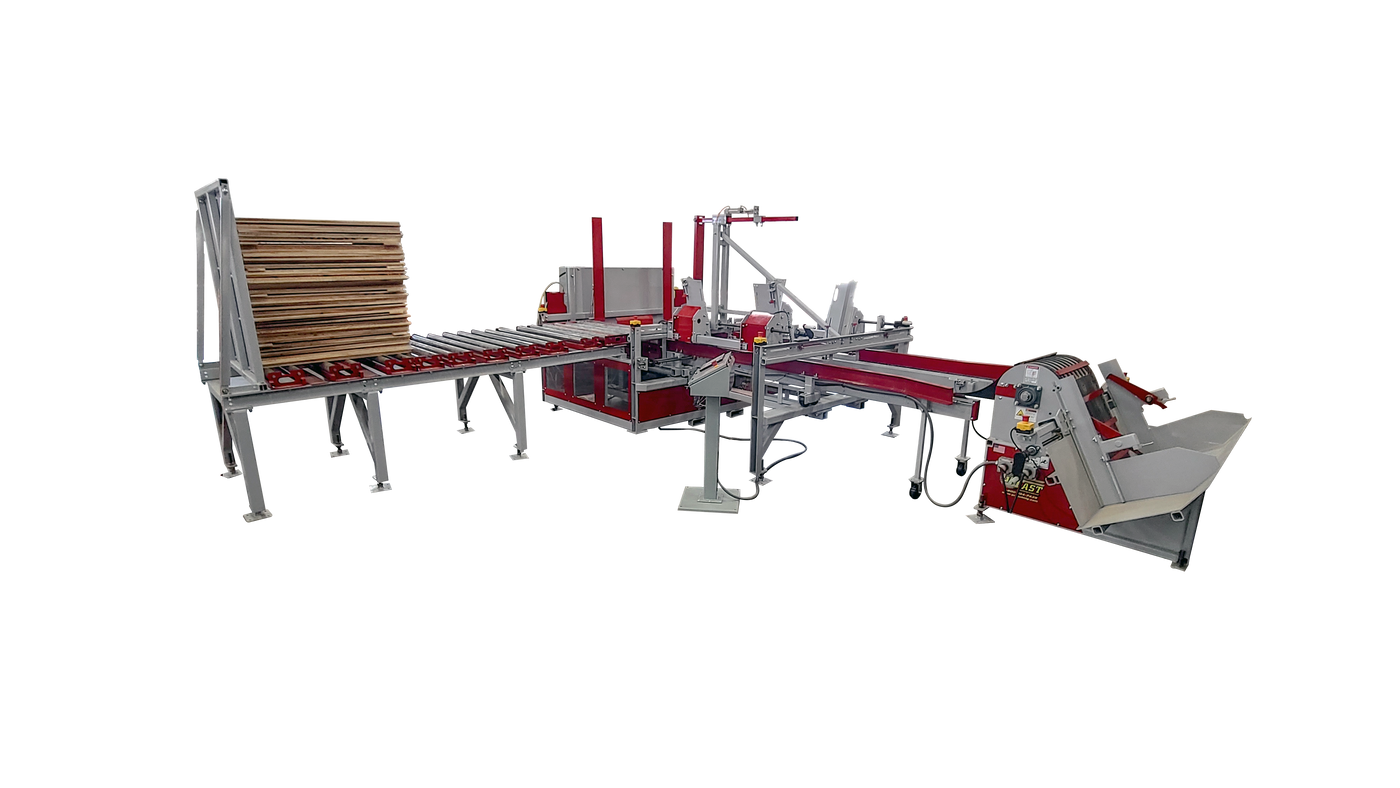

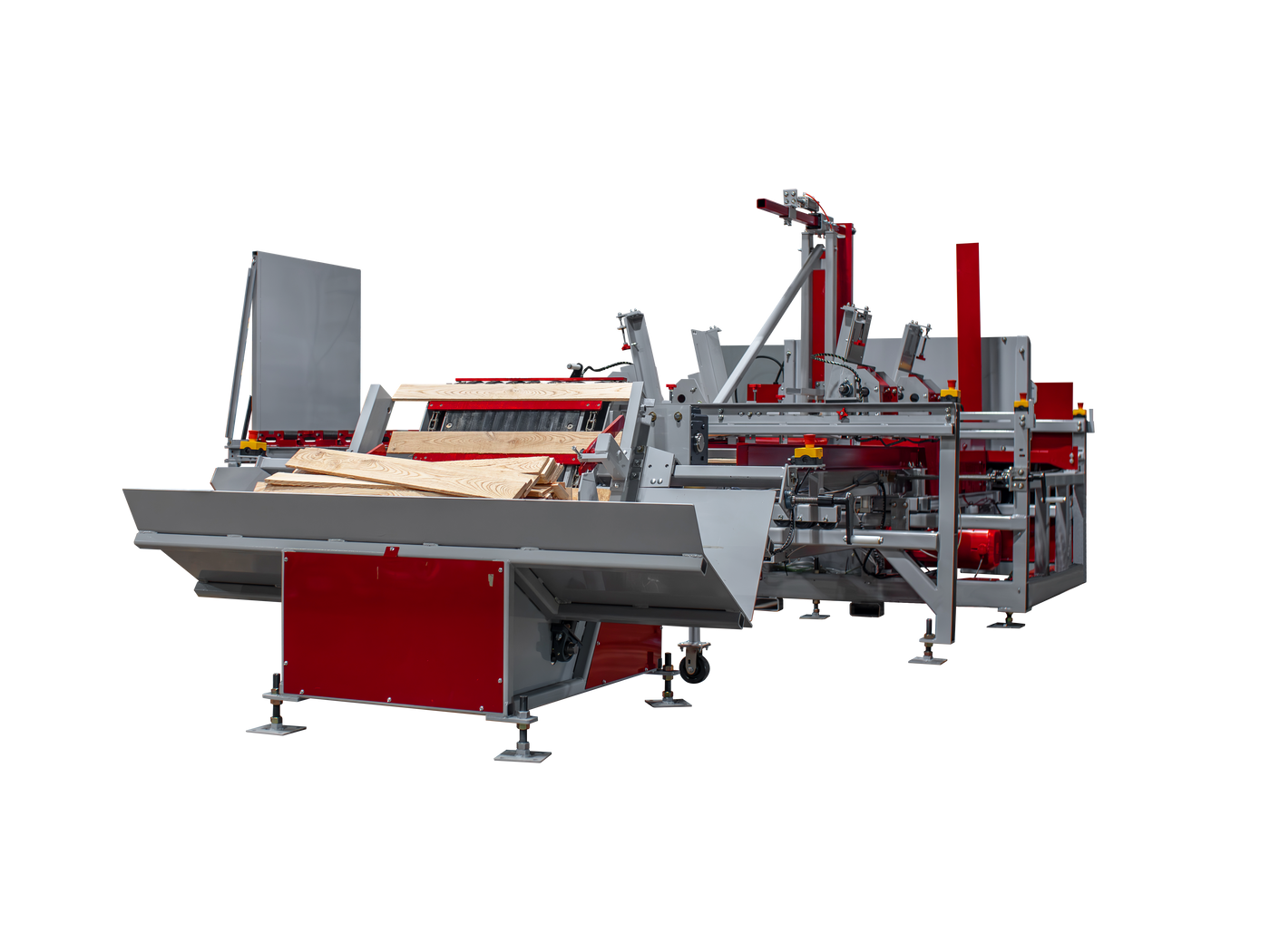

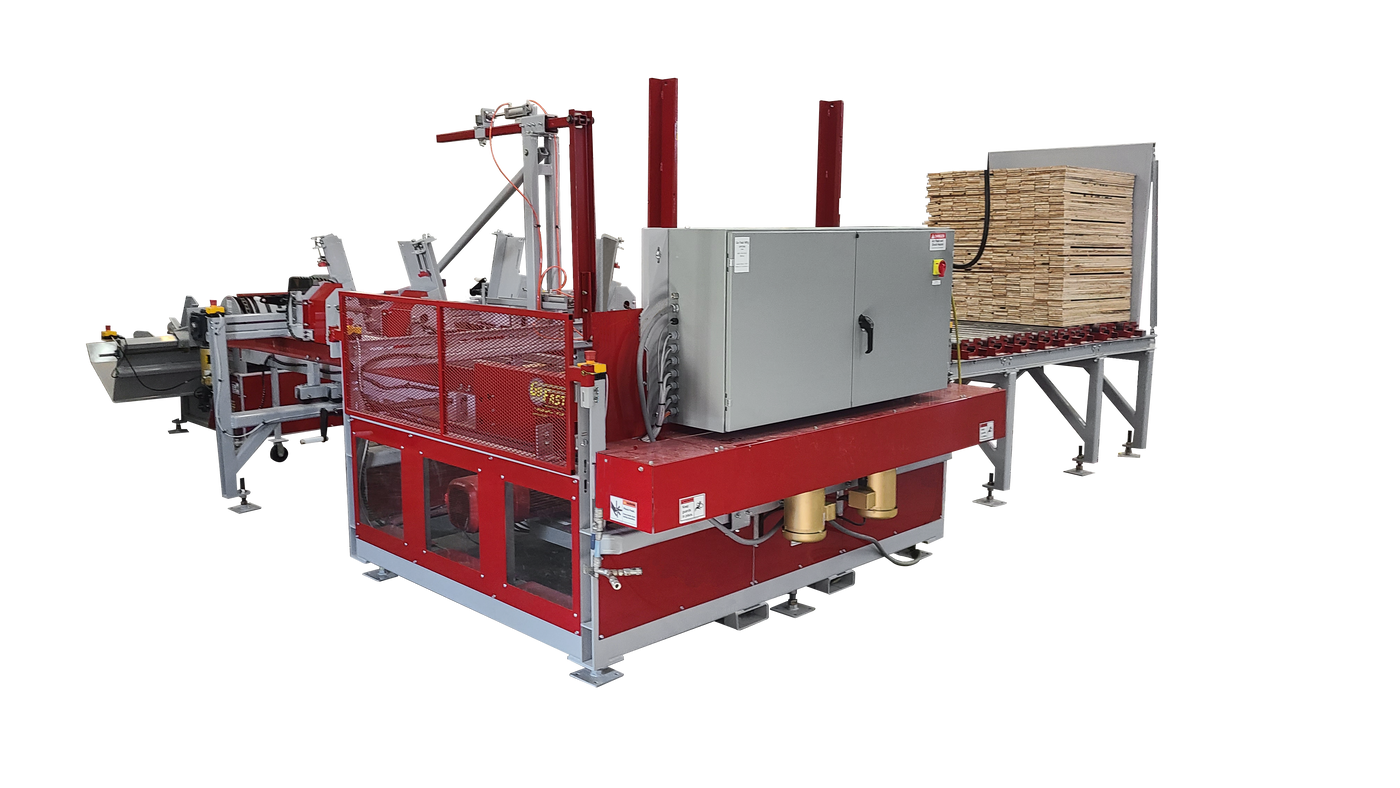

Upstak board stacker
The Go Fast UpSTAK can stack at speeds of up to 15 layers of boards per minute with board lengths of 30” to 72”, widths of 1 ½" to 6 ½", and thicknesses of 3/8” to 2”. The touch-screen HMI gives operators the ability to fine-tune these machines per the material being stacked. Tool-less adjustments allow board size changeovers to be completed within minutes. These units can be equipped with several options including automatic stick placers, powered outfeed roll cases, short board sensors, and our UpSTAK low profile unscrambler.
CLICK ON THE VIDEOS BELOW TO SEE OUR 2NXP NOTCHERS IN ACTION
machine details
Completely Toolless Changeovers
HD Pin "Stop & Go" System
Independent Fence & Infeed Chain Adjustment
Touch Screen Controls
Layer Cleanout Feature
7.5HP 3-Phase Lift Motor
2HP 3-Phase Outfeed Motor
Dual 0.75HP 3-Phase Chain Rail Motors
1.5HP Unscrambler Motor
Length: 210" (262" W/ Unscrambler)
Width: 115"
Height: 106"
Infeed Chain Height: 34.5"-38"
Discharge Roll Case Height: 41"-44.5"
Up to 15 Layers per Minute (Standard)
E-Stops
Jam & Outfeed Clear Sensors
See-Through Guarding
Board Thickness: 3/8"-2" (Up to 4" With Cant Kit)
Board Width: 1-1/2"-6-1/2"
Board Length: 30"-72"
Stack Height: 48" Max
Stack Width: 30"-72"
Stack Length: 30"-72"
Stack Lifting Weight: 6000 lbs Max
Custom Data Collection Reports
Accessible via HMI or Email
Interfaces with Go Fast Machinery
Supports Custom Add-On E-Stops, Buttons & Sensors
Remote Access for Go Fast Engineering
Advanced Off-Site Diagnostics
Live Troubleshooting Screen in HMI
Displays Faults & Sensor States
Quick Diagnostic Access.
Board Counts
Machine Hours
Production Reports
3,000–7,000 Chain Lug Cycles Per Hour
Rotating Board Kick-Off Fingers
Catch Hooks for Doubled Boards
Thickness Limiter Bar
Seamless Conveyor Surface
Flat-Top Design Minimizes Angular Transitions
5-Strand 2060 Infeed
Evenly Spaced Cogs
UHMW Wear Strips
See-Through Guarding
Quick-Access Doors
Optional E-Stop Door Interlock
2HP Electric Motor
Welded Steel Frame
3/8" Thick Steel Plate Pit
3x2 Structural Steel Framing
1/4" Thick Steel Side Plates
Layer Confirmation
Cant Kit
Short Board Sensor
Automatic Sticker Placers
Extended Discharge
Powered Discharge Sections
10' Length Stacker
20 Layer per Minute Option
Dunnage Kit For Grooved Material
2NXP Notcher & Stacker Combo
Resaw Line
Center Split
Edger
Gangsaw
Deduster
Grading Conveyor
Built to Accommodate Non-Standard Requirements
Modified for Unique Production Needs
1/3HP Electric Motor
Actuated Transition Plates
Toggle Switch to Air Cylinders
Dual 2060 Cogged Chain Strands
Seamless UHMW Transitions
Smooth Transfer to Board Stackers
