NXL Notcher

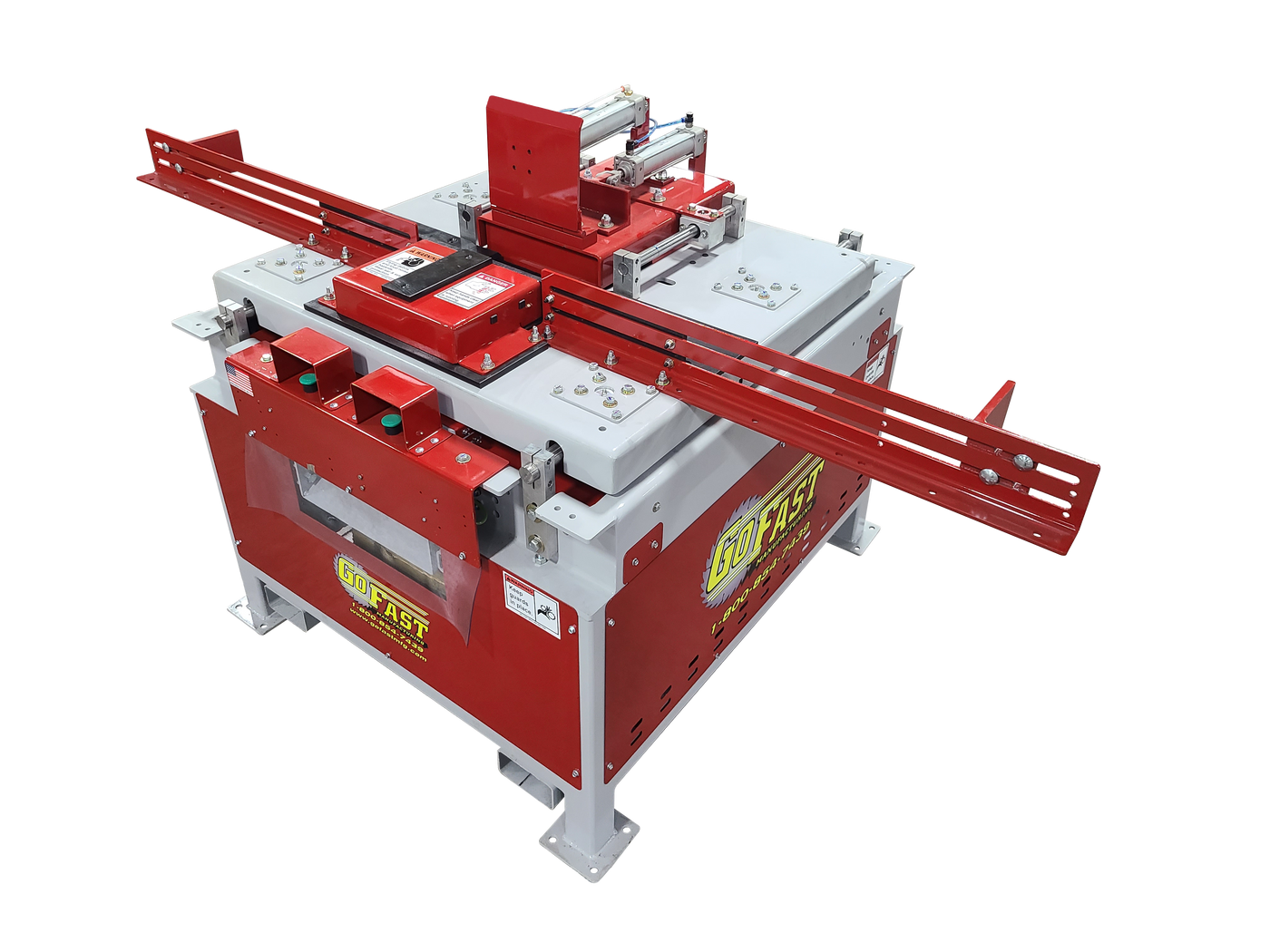

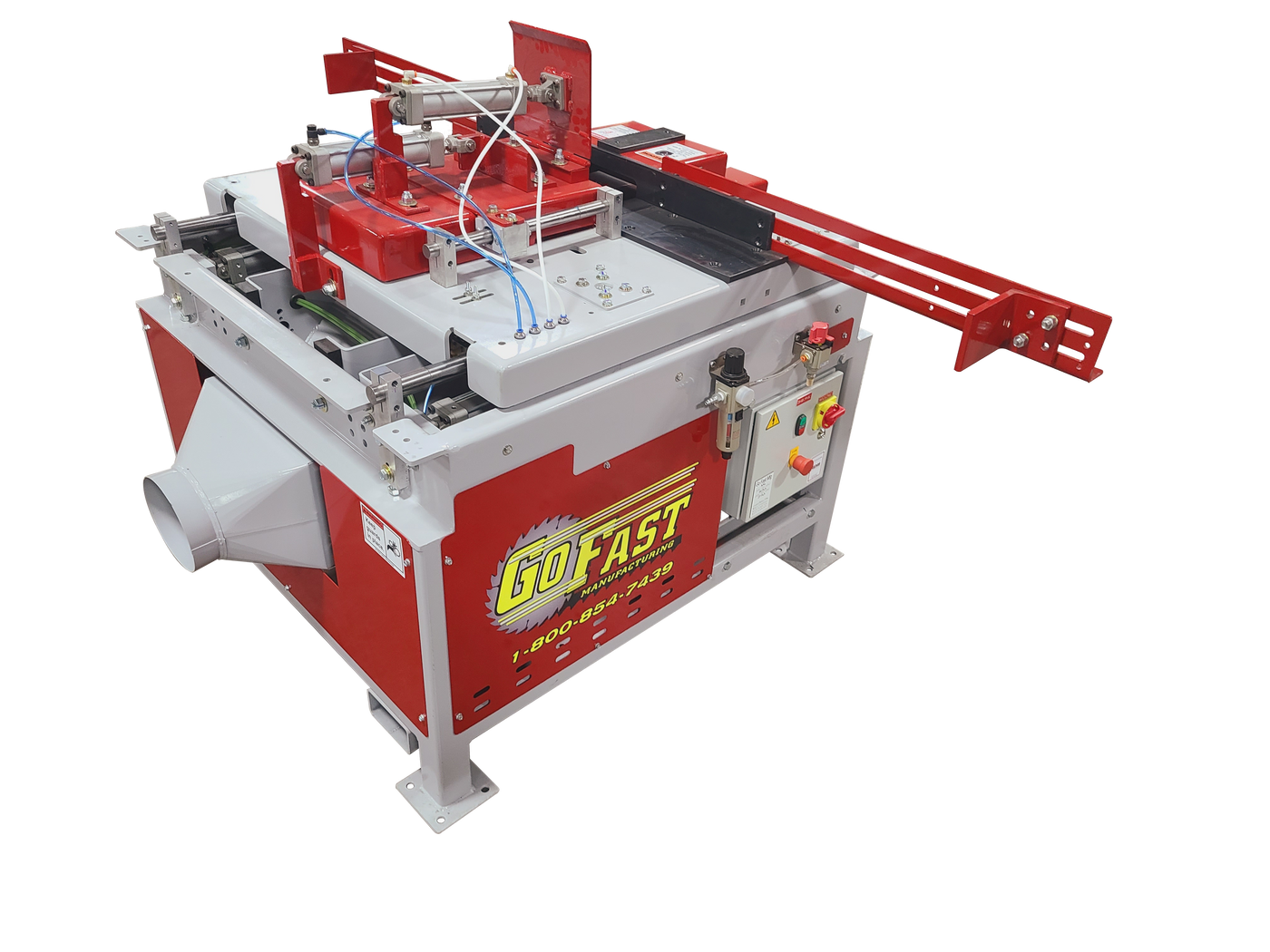

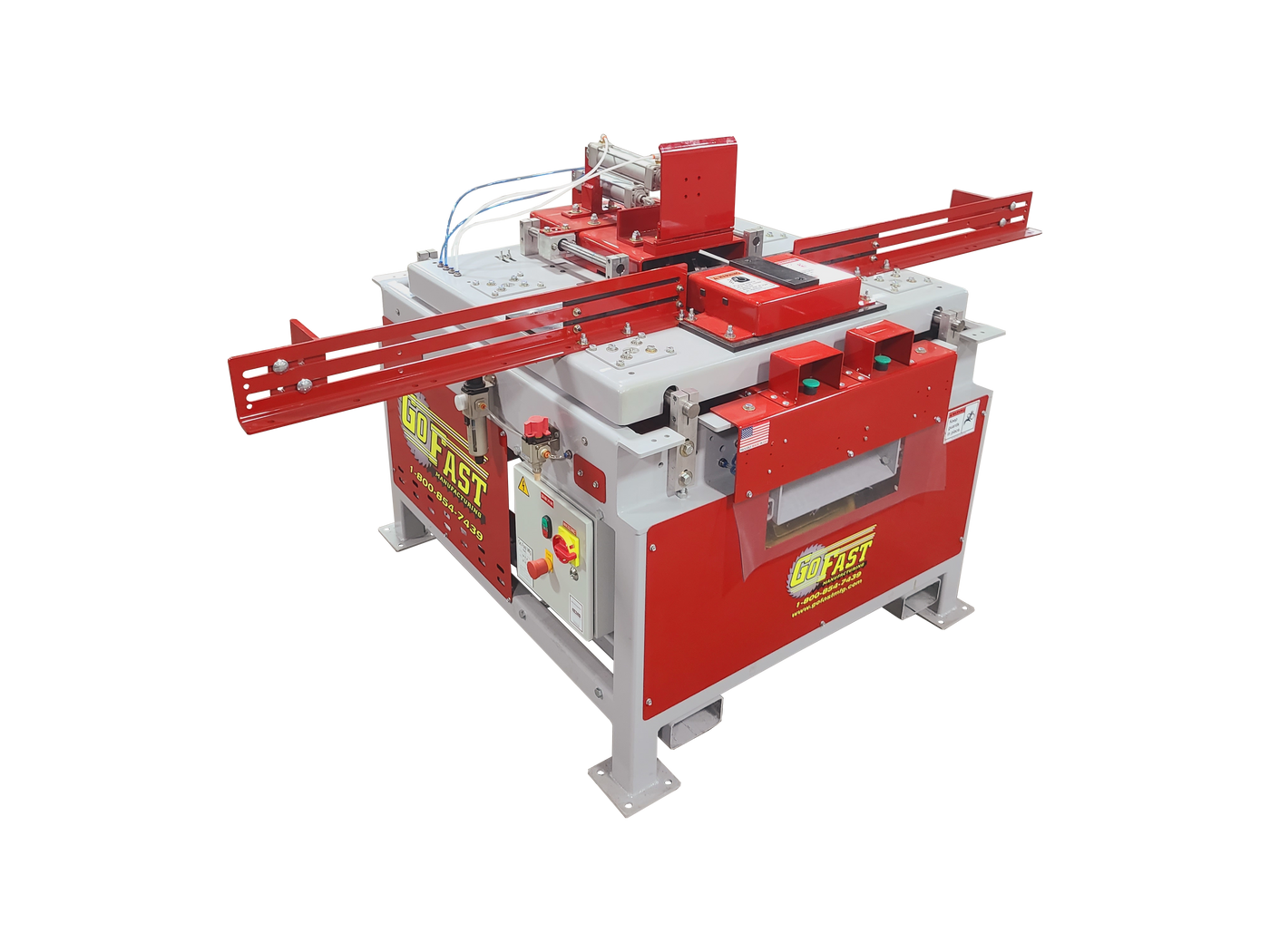

The Go Fast NXL Single Head Notcher is a compact, heavy-duty notcher built for shops that need a simple, safe, and productive notching solution.

What sets the NXL apart is its 6-inch notching throat. Depending on material thickness, operators can notch up to four boards per cycle, giving this single-head machine strong production capability for its size. The NXL can also notch new material, recycled material, and 6-inch-wide cants, making it a versatile option for pallet shops and specialty sawmills.

The machine is designed with operator safety in mind. A safety pop-up guard conceals the cutter head when the machine is not in the cut, and the top hold-down gate helps prevent material from pushing up during the notching cycle.

For shops that want a compact, straightforward notcher with more capacity per cycle than typical small manual machines, the Go Fast NXL is a practical, heavy-duty option.

Recommended for: Low-Medium production plants running new or recycled pallet lumber.

Base Price $19,000

Parts & Support Download Spec Sheet

NOTE: Pricing shown is a starting point. Final quote depends on options and plant layout.

}

NXL Notcher Video Library

SEE THE BEST NOTCHER ON THE MARKET IN ACTION.

Shareable Playlist Here

FOOTAGE OF: PROMOVIDEOS • TEST-RUNS • INSTALLS • OPTIONS

CLICK ON THE VIDEOS BELOW TO SEE OUR NXL NOTCHERS IN ACTION

Overview

Designed for low to medium levels of production
Engineered for ease of use & operator safety

machine details

Cutter head drive

20HP Motor (Standard)
3-Groove Belt & Pulley Drive
3,600 RPM, 2” Cutter Head Arbor

Cycle Speed

Up to 800 Stringers per Hour

air system

100 PSI Operating Pressure at 20 CFM
2” Bore Air Cylinders (4 Total)
Includes the Following: Dual Hand Safety Controls, Lockout Valve, Regulator w/ Filter, Pressure Relief, Reservoir, Table Speed Controllers, & Mechanical Valves

Dust collection

(1) 8” Dust Port
2,300 CFM Recommended
Optional Sawdust Conveyor

dimensions

60" Long x 93" Wide x 52" Tall
37" Working Height

frame & build

3/8” Thick Steel Tabletop & Framing
1-1/4” Linear Bearings for Tabletop
1” Linear Bearings for Clamps
Hardened Linear Bearing Shafts

safety

E-Stop
Dual Hand Safety Controls
Enclosed Cutter Head

Notch Height Capacity:

0" – 2-1/2" (Standard Range)

Notch Width

9" Wide (1/2" – 12" Available)

Board Width Capacity:

Up to 6"

Board Length Capacity:

Up to 60" (Standard)

Board Height Capacity:

4" (Standard)

Custom Reports

Custom Data Collection Reports
Accessible via HMI or Email

Communication

Interfaces with Go Fast Machinery
Supports Custom Add-On E-Stops, Buttons & Sensors

Optional VPN

Remote Access for Go Fast Engineering
Advanced Off-Site Diagnostics

Troubleshooting

Live Troubleshooting Screen in HMI
Displays Faults & Sensor States
Quick Diagnostic Access.

Data Collection

Board Counts
Machine Hours
Production Reports

Adjustable Speed

3,000–7,000 Chain Lug Cycles Per Hour

Jam Prevention

Rotating Board Kick-Off Fingers
Catch Hooks for Doubled Boards
Thickness Limiter Bar
Seamless Conveyor Surface
Flat-Top Design Minimizes Angular Transitions

Infeed Chain

5-Strand 2060 Infeed
Evenly Spaced Cogs
UHMW Wear Strips

Guarding

See-Through Guarding
Quick-Access Doors
Optional E-Stop Door Interlock

Power

2HP Electric Motor

Construction

Welded Steel Frame
3/8" Thick Steel Plate Pit
3x2 Structural Steel Framing
1/4" Thick Steel Side Plates

cutter heads

Multiple Cutter Carbide Options (New Material, Recycled Material, etc.)
Different Notch Widths Available (1/2" – 12")
Custom Notch Profiles

Custom capacities

Fence Extension Kits to Accommodate Material up to 102", 144", or 186" Long
Riser Kit to Accommodate Material up to 6" Tall
Built to Accommodate Non-Standard Requirements
Modified for Unique Production Needs

waste removal

Riser Waste Conveyor
Dump Hoppers
Flex Hose Kit

other

25HP Motor
Caster Feet
Stringer Stacking Rack
Stand Alone Control Station

Power

1/3HP Electric Motor

Setup Process

Actuated Transition Plates
Toggle Switch to Air Cylinders

Chain

Dual 2060 Cogged Chain Strands

Transitions

Seamless UHMW Transitions
Smooth Transfer to Board Stackers

Note Subject to change

Compare Our Notchers

Quick comparison to help you select the right machine for your operation.

Machine name	2NXP Double Head Notcher View machine	2NX Double Head Notcher View machine	2NXL double head notcher View machine	NXL single head notcher View machine	NXLM single head notcher View machine	MN-10 Single Head Notcher View machine
Automation level	Fully Automated	Partially Automated	Partially Automated	Partially Automated	Partially Automated	Partially Automated
Cycle rate	Up to 7,000 Stringers Per Hour	Up to 4,000 Stringers per Hour	Up to 1,750 Stringers per Hour	Up to 800 Stringers per Hour	Up to 540 Stringers per Hour	Up to 240 Stringers per Hour
Material capacity	Up to 2-1/2" Wide X 4" Tall	Up to 8" Wide X 4" Tall	Up to 6" Wide X 4" Tall	Up to 6" Wide X 4" Tall	Up to 6" Wide X 4" Tall	Up to 2" Wide X 5-1/2" Tall
Power options	30HP 3-Phase Standard	20HP 3-Phase Standard	20HP 3-Phase Standard	20HP 3-Phase Standard	20HP 3-Phase Standard	10HP 3-Phase Standard
