Trim saws

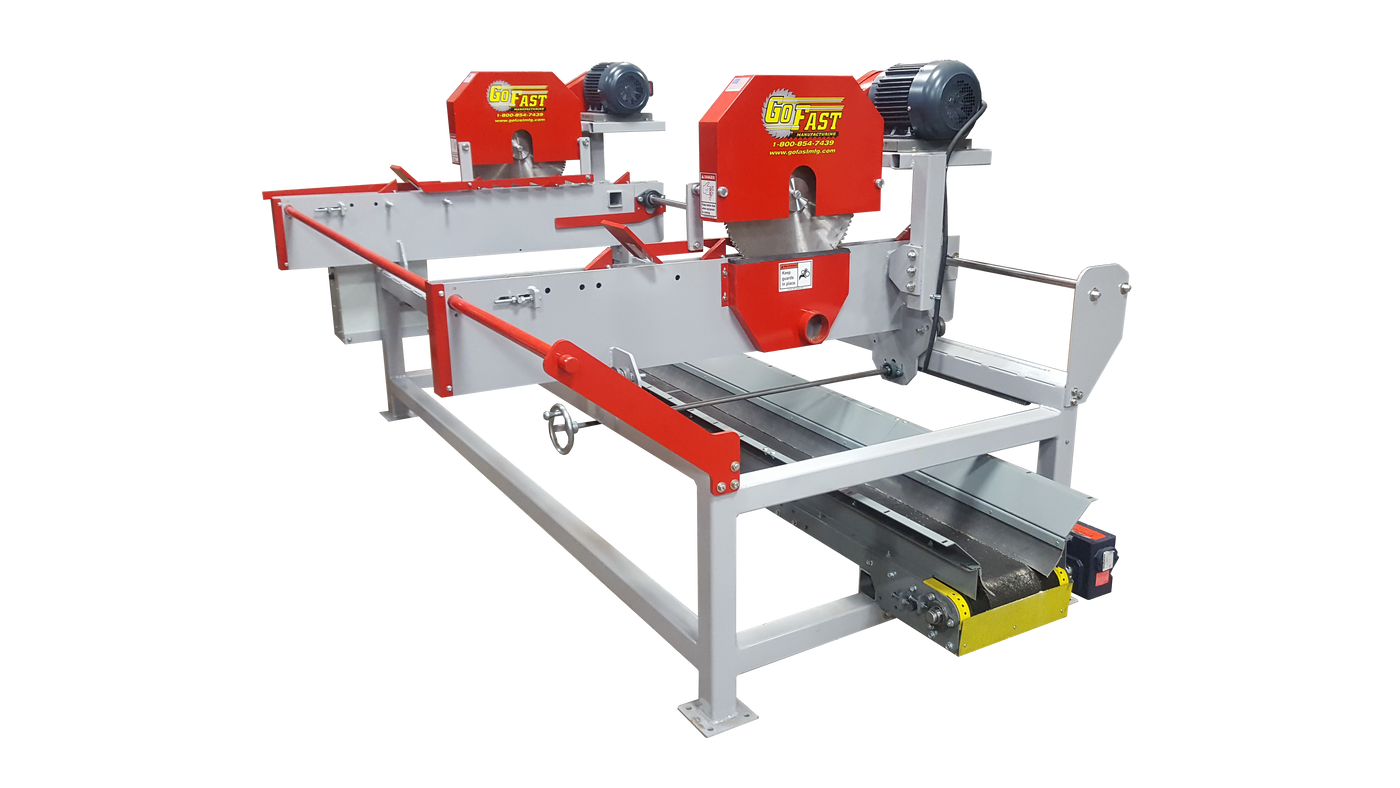

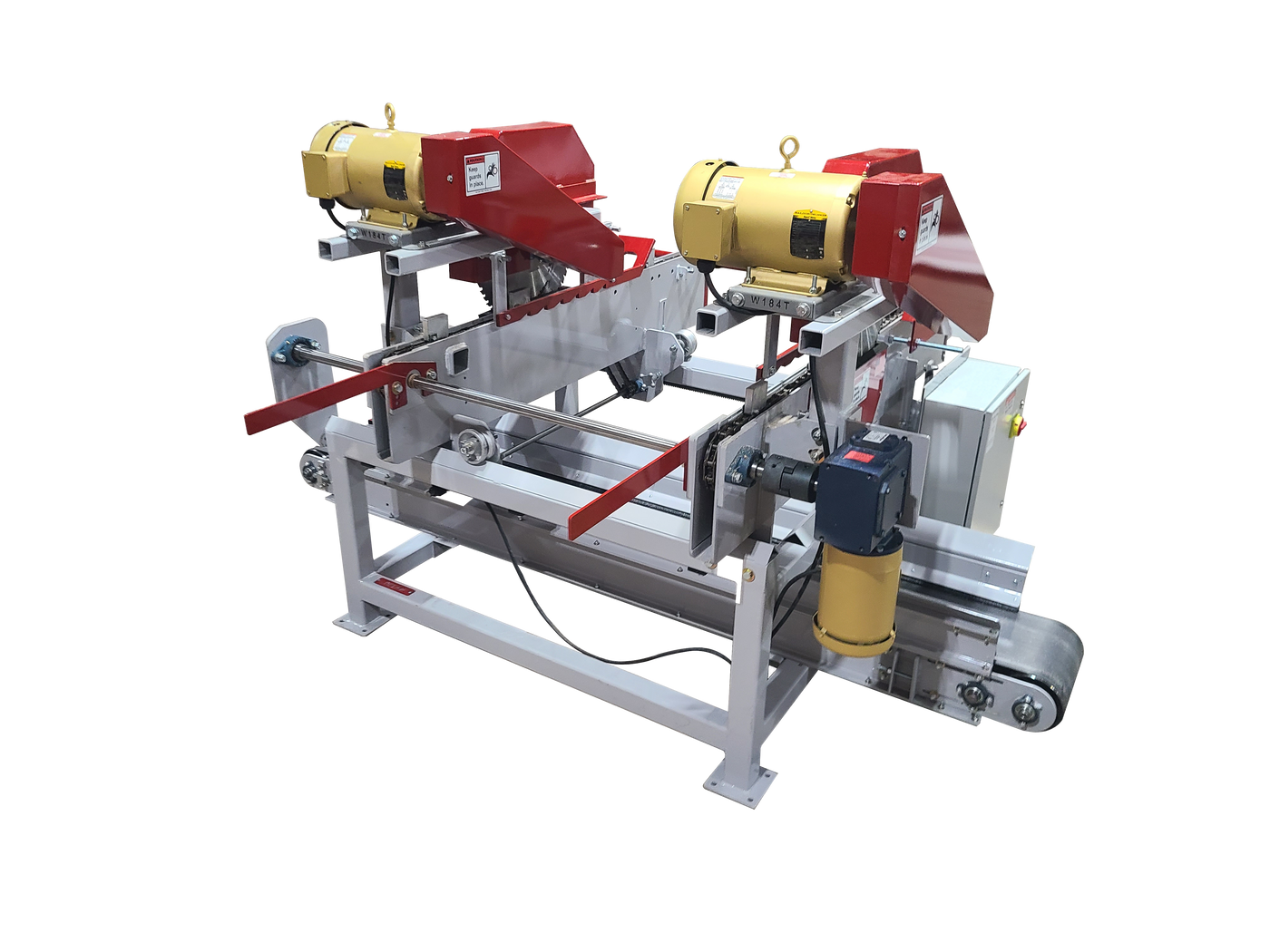

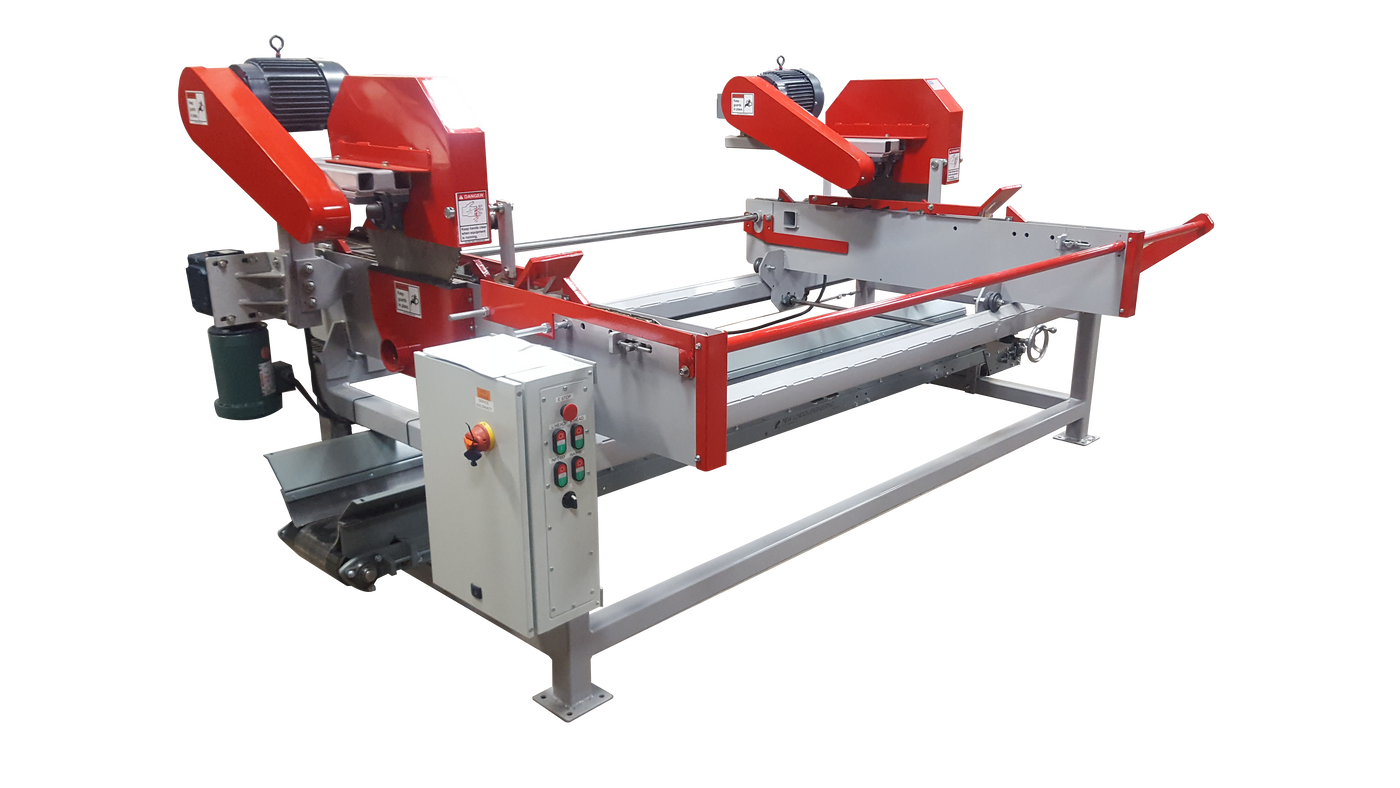

det-20 double-end trimsaw

The Go Fast Double-End Trim Saw is a fast acting, adjustable head system that can process up to 4-1 /2" tall material. This machine's sturdy construction, quick cycle time, and simplicity will add to any operation.

Base Price $18,750 (72" Capacity Price)

Parts & Support Download Spec Sheet

NOTE: Pricing shown is a starting point. Final quote depends on options and plant layout.

}

DET-20 Video Library

SEE THE BEST TRIMSAW ON THE MARKET IN ACTION.

Shareable Playlist Here

FOOTAGE OF: PROMOVIDEOS • TEST-RUNS • INSTALLS • OPTIONS

CLICK ON THE VIDEOS BELOW TO SEE OUR DET-20 TRIMSAWS IN ACTION

machine details

standard features

Panel Mounted Controls
Hand-Crank Adjustable Head Position
1HP Variable Speed Infeed Chains
1/2HP Variable Speed 12" Product Belt Conveyor
1/2HP 12" Belt Waste Conveyor

Blade specifications

Blade:
20" Carbide Tipped
Power:
5HP 3 Phase (Standard)
10HP 3 Phase Option Available

Cycle Speed

0 – 32 Cogs Per Minute

waste evacuation

12" Waste Conveyor

Optional 4" Dust Ports

frame & build

3" Square Tubular Framing
1-1/2" Blade Arbors & Bearings

safety

Blades & Belt Guards
Cable Pull E-Stops

dimensions

Length: Model Dimension +24" (+48 W/ Waste Conveyor)
Width: 96"
Height: 66"
Infeed Height: 41-1/2"

board width capacity:

8"

board height capacity

4-1/2"

Board length capacities:

Available Models:

48" Length Capacity
72" Length Capacity
96" Length Capacity
120" Length Capacity
144" Length Capacity
168" Length Capacity
192" Length Capacity
216" Length Capacity
240" Length Capacity

Custom Reports

Custom Data Collection Reports
Accessible via HMI or Email

Communication

Interfaces with Go Fast Machinery
Supports Custom Add-On E-Stops, Buttons & Sensors

Optional VPN

Remote Access for Go Fast Engineering
Advanced Off-Site Diagnostics

Troubleshooting

Live Troubleshooting Screen in HMI
Displays Faults & Sensor States
Quick Diagnostic Access.

Data Collection

Board Counts
Machine Hours
Production Reports

Adjustable Speed

3,000–7,000 Chain Lug Cycles Per Hour

Jam Prevention

Rotating Board Kick-Off Fingers
Catch Hooks for Doubled Boards
Thickness Limiter Bar
Seamless Conveyor Surface
Flat-Top Design Minimizes Angular Transitions

Infeed Chain

5-Strand 2060 Infeed
Evenly Spaced Cogs
UHMW Wear Strips

Guarding

See-Through Guarding
Quick-Access Doors
Optional E-Stop Door Interlock

Power

2HP Electric Motor

Construction

Welded Steel Frame
3/8" Thick Steel Plate Pit
3x2 Structural Steel Framing
1/4" Thick Steel Side Plates

machine options

Blade Motor Upgrade: 10HP Motor
Length Capacities: Various Frame lengths for different capacities
18" Product Conveyor
Secondary Product Conveyor
Digital Read Out (DRO)
3rd Chain Rail For Center Support

system options

Automatic Feeder
Unscramblers
Round Tables
Package Decks

waste evacuation Options

Dust Collection: 4" Dust Ports
Riser Waste Conveyor
18" Waste Conveyor
Dump Hoppers
Flex Hose Kit

Power

1/3HP Electric Motor

Setup Process

Actuated Transition Plates
Toggle Switch to Air Cylinders

Chain

Dual 2060 Cogged Chain Strands

Transitions

Seamless UHMW Transitions
Smooth Transfer to Board Stackers

Note Subject to change

Compare Our Trimsaws

Quick comparison to help you select the right machine for your operation.

Machine name	MET-20 View machine	DET-20 View machine	TS-10 View machine	Stringer Trimmer View machine	firewood slab trim saw View machine
Number of Heads	3-8	2	1	1-4	2-6
Cycle rate	Up to 32 Cogs/Minute	Up to 32 Cogs/Minute	Up to 33 Cogs/Minute	Up to 40 Cogs/Minute	Up to 32 Cogs/Minute
Material capacity	Up to 12" Wide X 5" Tall	Up to 8" Wide x 4-1/2" Tall	Up to 8" Wide x 4" Tall	Up to 10" Wide x 2" Tall	Up to 8" Wide x 4" Tall
Power options	10HP 3-Phase Standard	5HP 3-Phase Standard	5HP 3-Phase Standard	5HP 3-Phase Standard	10HP 3-Phase Standard
