Lumber Unscrambler Systems
Package Deck

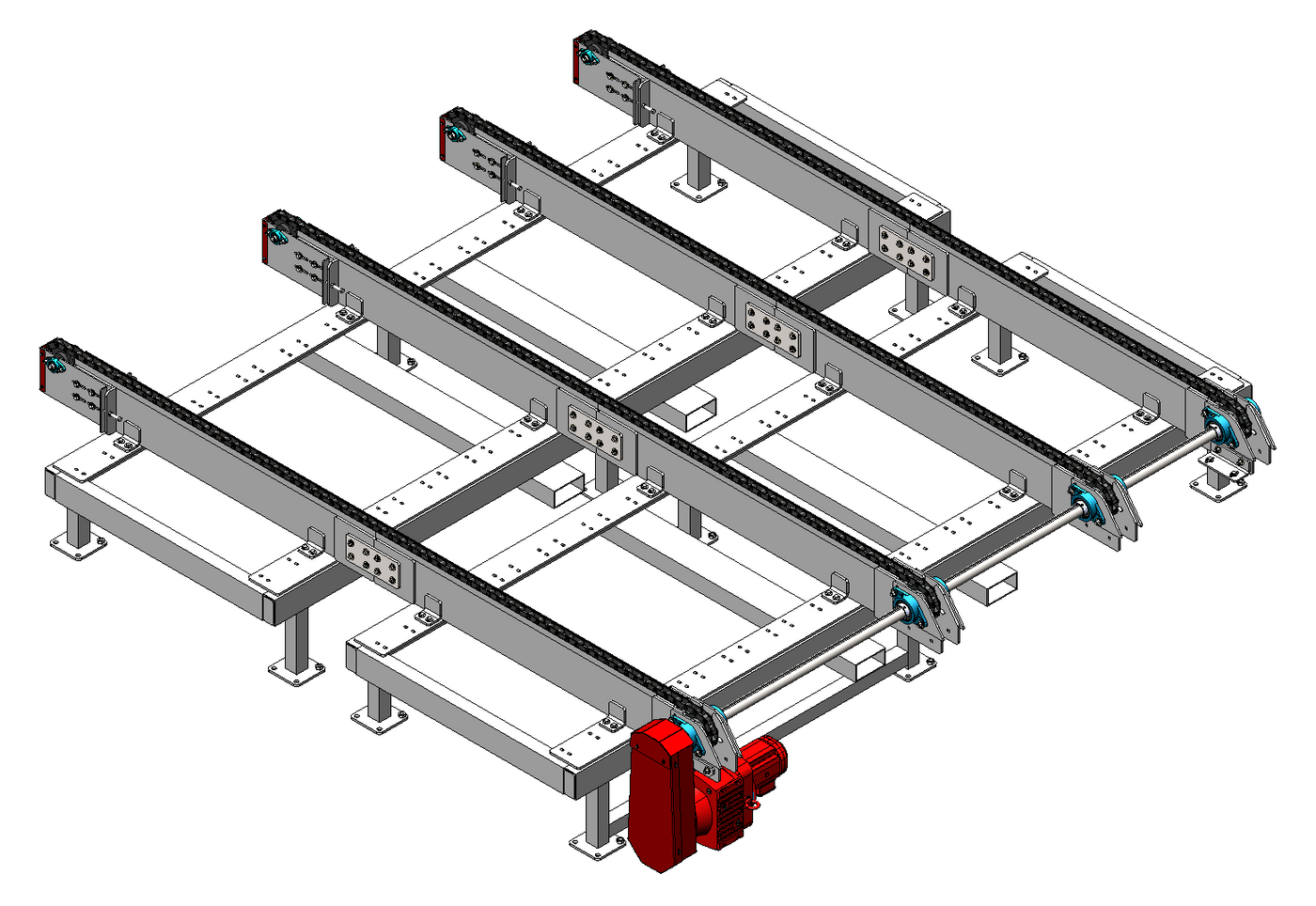

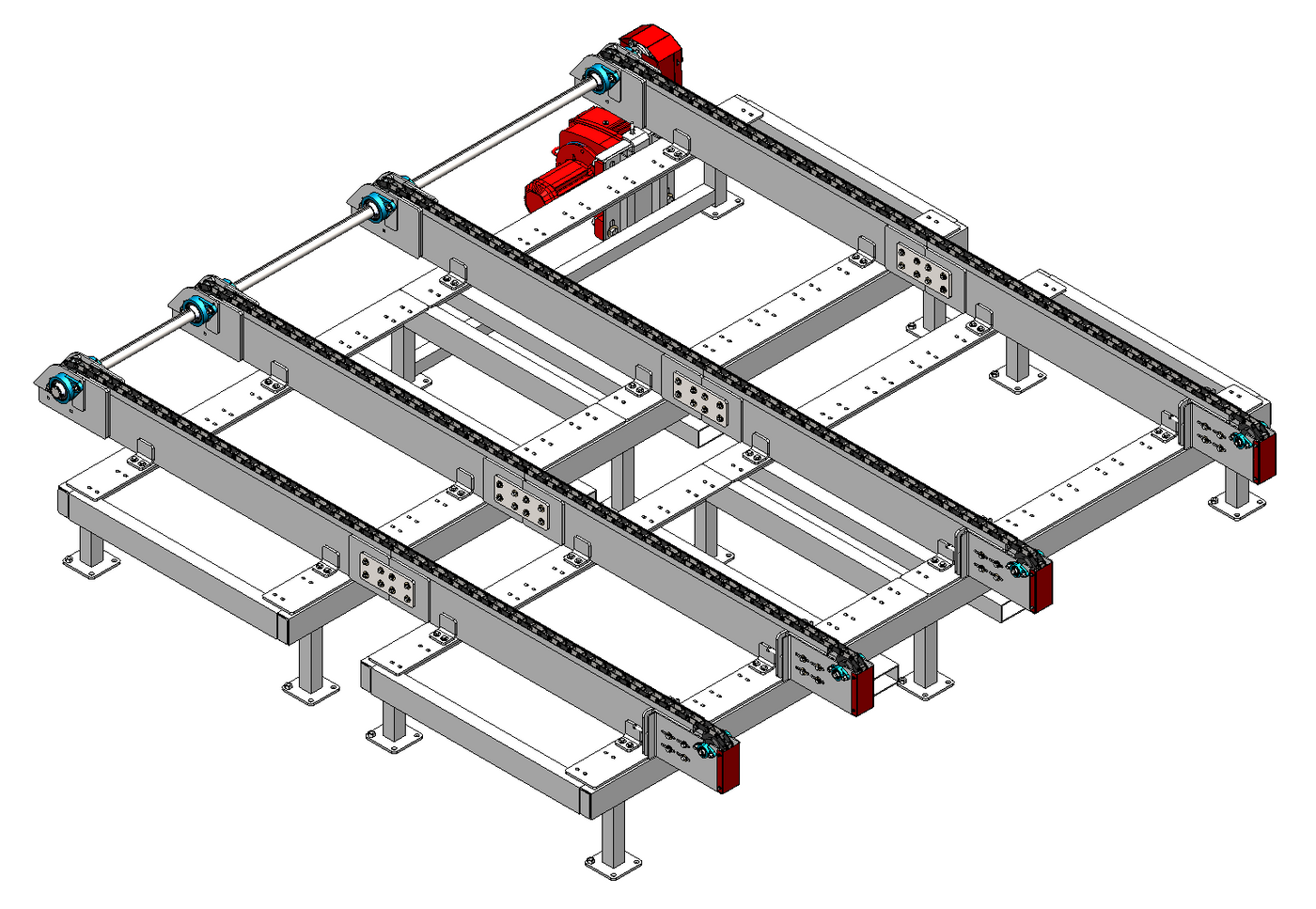

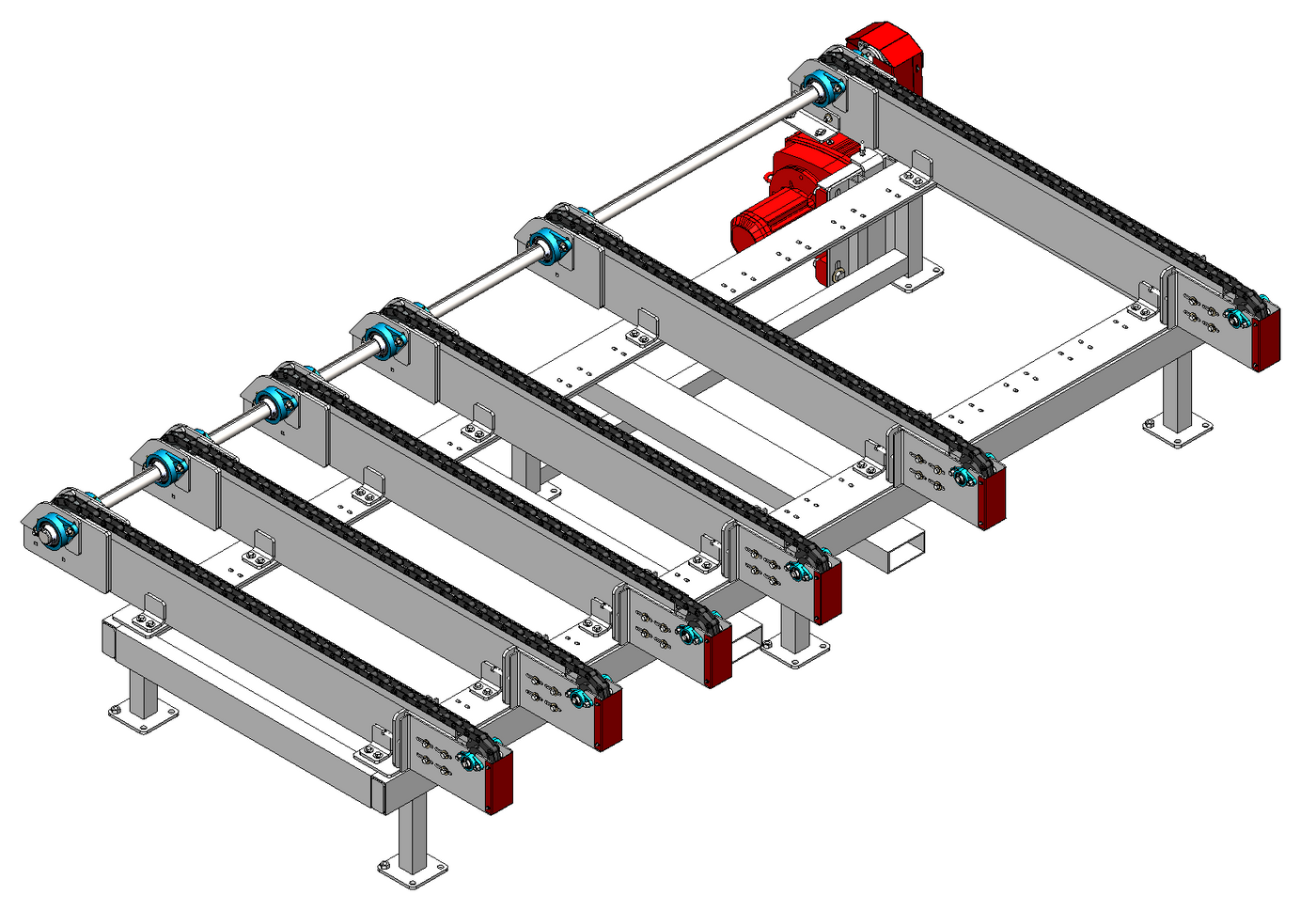

The HD Unscrambler Package Deck is the first controlled conveyor in the unscrambler system, designed to receive and manage full bundles of material. It feeds the system at a controlled rate while staging additional bundles to keep production stable and predictable.
Built for real production environments, the Go-Fast HD Package Deck is engineered for continuous operation and up to 27,000-lb bundles. A low-profile design simplifies line integration, improves ergonomics, and minimizes elevation changes.
CLICK ON THE VIDEOS BELOW TO SEE OUR HD LUMBER UNSCRAMBLER SYSTEMS IN ACTION
machine details
3-Phase High Efficiency Helical Gearmotor
81X Heavy Mill Chain & H78 Welded Steel Sprockets
Heavy-Duty Modular Design
2-7/16" Drive Shaft
Four-Bolt Chain Idler Tensioners
186" Long x 101" Wide x 33" Tall (20' Capacity Model)
33" Infeed Chain Height
Up to 24' (Smaller Capacities Available from 8' on up in 4' Increments)
27,000 LB
Custom Data Collection Reports
Accessible via HMI or Email
Interfaces with Go Fast Machinery
Supports Custom Add-On E-Stops, Buttons & Sensors
Remote Access for Go Fast Engineering
Advanced Off-Site Diagnostics
Live Troubleshooting Screen in HMI
Displays Faults & Sensor States
Quick Diagnostic Access.
Board Counts
Machine Hours
Production Reports
3,000–7,000 Chain Lug Cycles Per Hour
Rotating Board Kick-Off Fingers
Catch Hooks for Doubled Boards
Thickness Limiter Bar
Seamless Conveyor Surface
Flat-Top Design Minimizes Angular Transitions
5-Strand 2060 Infeed
Evenly Spaced Cogs
UHMW Wear Strips
See-Through Guarding
Quick-Access Doors
Optional E-Stop Door Interlock
2HP Electric Motor
Welded Steel Frame
3/8" Thick Steel Plate Pit
3x2 Structural Steel Framing
1/4" Thick Steel Side Plates
Custom Frame Foot Risers (Increases Chain Infeed Height)
Additional Chain Strands & Custom Spacing (To Accommodate Varying Material Lengths)
Automatic Bundle Staging (Utilizes a Series of Sensors to Advance Bundles on the Package Deck to Fill the Next Available Position)
Even-End Rollers
Trim Saw Auto Feeder
Dealer Deck Stop Lever
Package Deck Extension
1/3HP Electric Motor
Actuated Transition Plates
Toggle Switch to Air Cylinders
Dual 2060 Cogged Chain Strands
Seamless UHMW Transitions
Smooth Transfer to Board Stackers
