pallet dimsantlers
Deck shredder

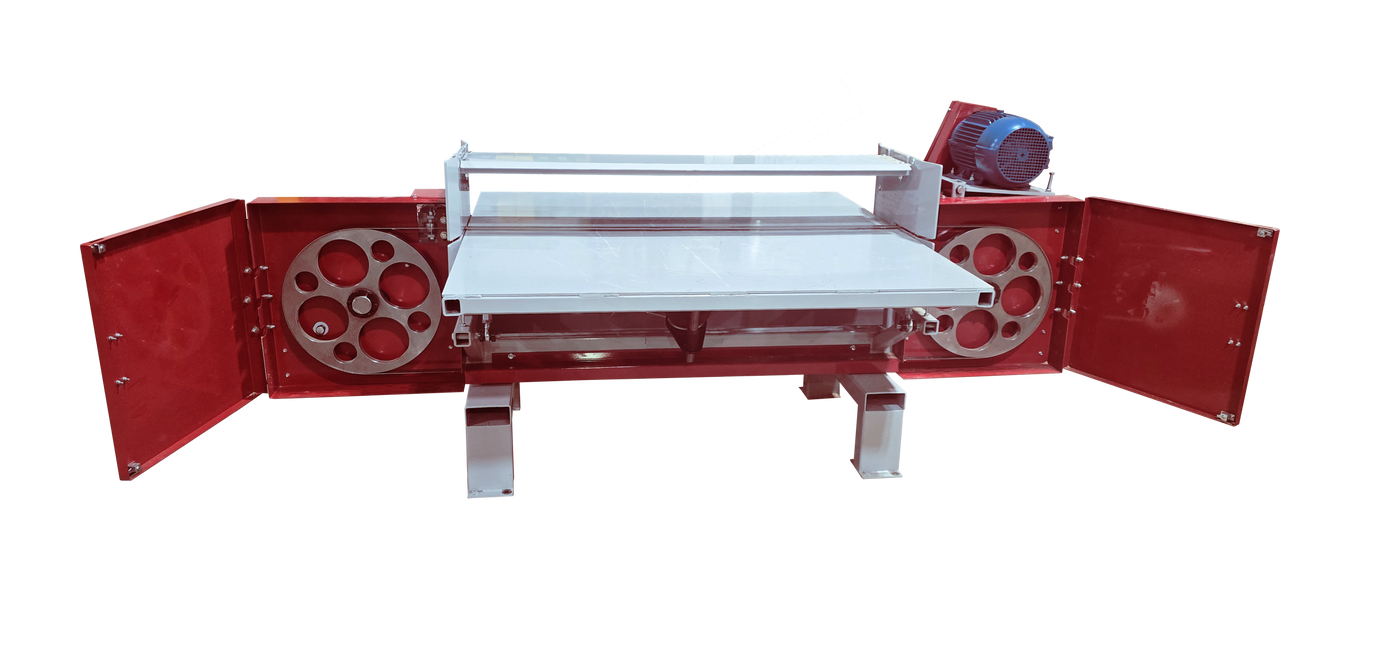

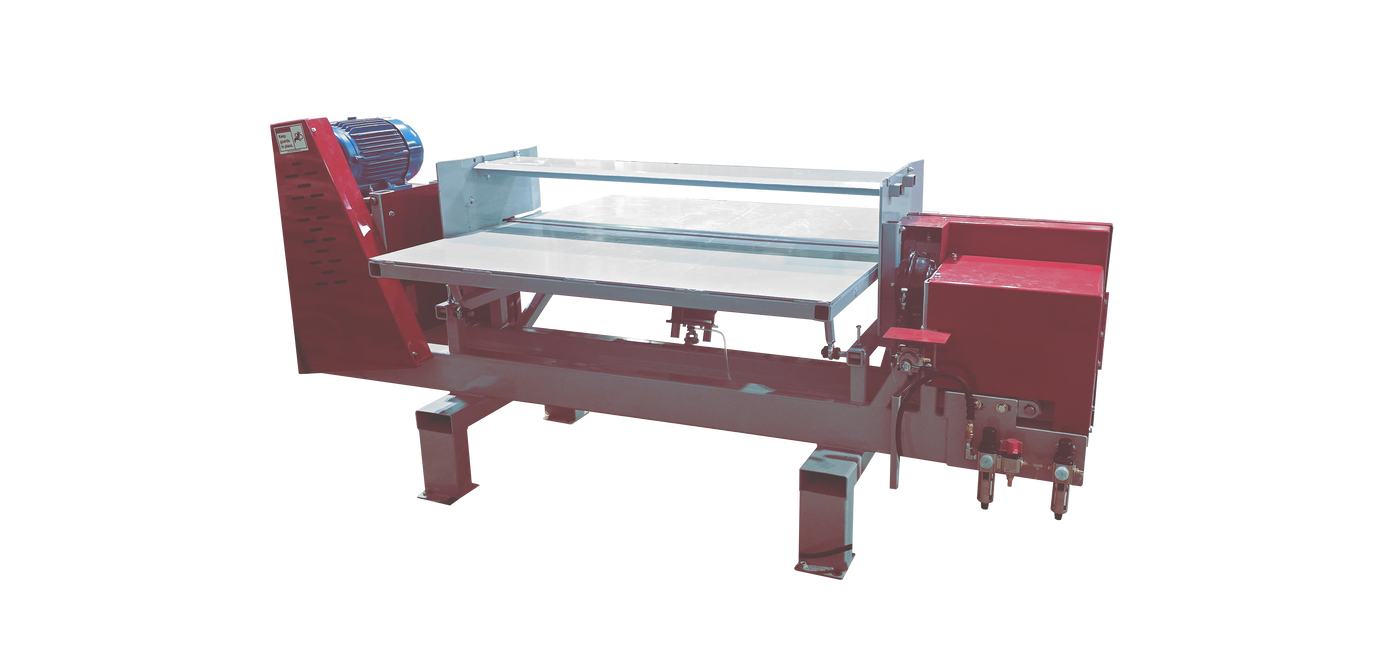

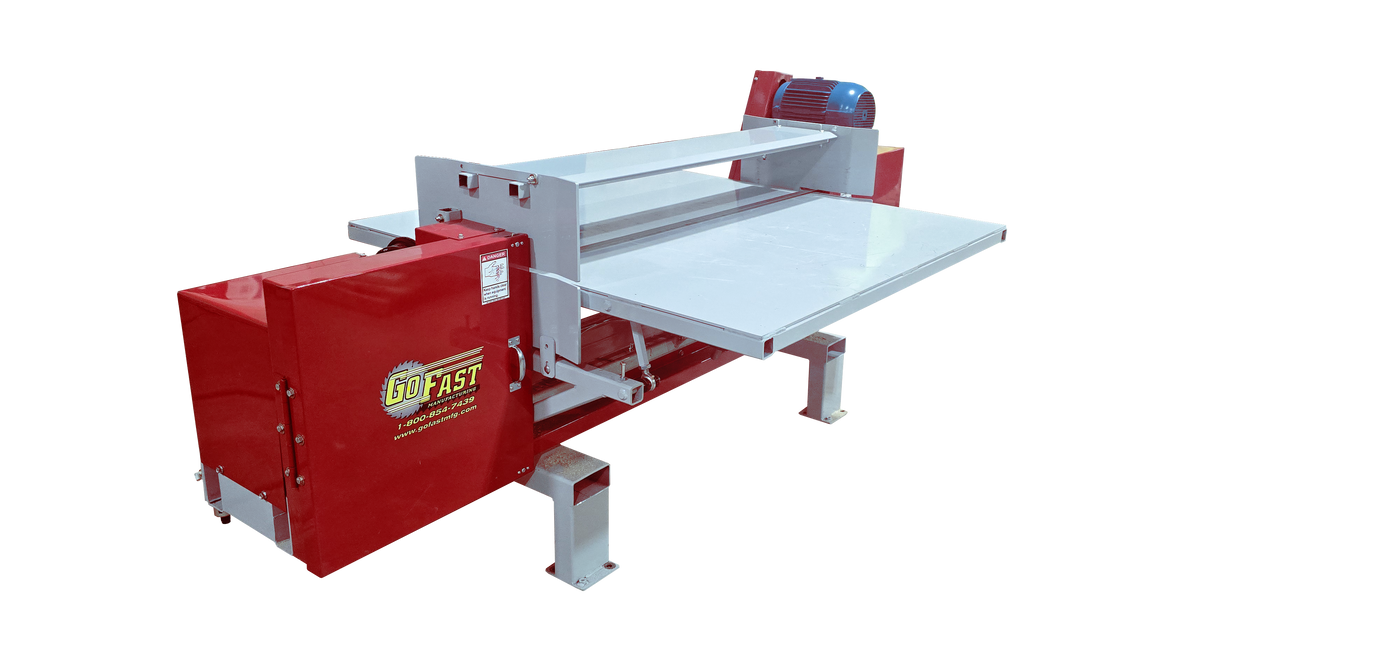

The Deckshredder by Go Fast Manufacturing is a heavy-duty pallet dismantler built for nonstop recycling operations, delivering high throughput in an exceptionally compact footprint. Powered by a 10 HP electric motor with industrial-grade band wheels, bearings, and an air-bag blade tensioning system, it’s engineered for durability, long blade life, and consistent performance. Capable of dismantling pallets up to 60" wide, the Deckshredder combines efficient production with operator-friendly features like adjustable table height and integrated safety controls, making it a reliable, space-saving solution for demanding pallet recycling environments.
CLICK ON THE VIDEOS BELOW TO SEE OUR DISMANTLER IN ACTION
machine details
6" x 3" Frame Construction
20" Precision Machine Band Wheels
Air Bag Blade Tensioner Assembly
Air Gauge and Lockout Valve
Removable Pass-Over Top
Table Height Adjustment (1/4"-5" From Blade)
1-1/4" Blade Width
1 or 2 Person Operation
10HP Motor 3-Phase (Standard)
Length: 114"
Width: 60"
Height: 52"
Weight: 1900 lbs.
Blade & Belt Guards
60" Width Standard, Up to 96" Available
No Max Length or Height
1/4"-5" From Table (Standard)
3,000–7,000 Chain Lug Cycles Per Hour
Rotating Board Kick-Off Fingers
Catch Hooks for Doubled Boards
Thickness Limiter Bar
Seamless Conveyor Surface
Flat-Top Design Minimizes Angular Transitions
5-Strand 2060 Infeed
Evenly Spaced Cogs
UHMW Wear Strips
See-Through Guarding
Quick-Access Doors
Optional E-Stop Door Interlock
2HP Electric Motor
Welded Steel Frame
3/8" Thick Steel Plate Pit
3x2 Structural Steel Framing
1/4" Thick Steel Side Plates
60"-96" Pallet Width Capacities
Fixed Table
Rear Drop Table
Center Drop Table
Board Catch
Robotic Arm Feeder
10 HP Electric Motor 208/230/480/3/60 TEFC
10 HP Electric Motor 220/1/60 TEFC
15 HP Electric Motor 208/230/480/3/60 TEFC
Honda Gas Motor
Waste Conveyors
Product Conveyors
Pallet Handling Conveyors
Custom Data Collection Reports
Accessible via HMI or Email
Interfaces with Go Fast Machinery
Supports Custom Add-On E-Stops, Buttons & Sensors
Remote Access for Go Fast Engineering
Advanced Off-Site Diagnostics
Live Troubleshooting Screen in HMI
Displays Faults & Sensor States
Quick Diagnostic Access.
Board Counts
Machine Hours
Production Reports
1/3HP Electric Motor
Actuated Transition Plates
Toggle Switch to Air Cylinders
Dual 2060 Cogged Chain Strands
Seamless UHMW Transitions
Smooth Transfer to Board Stackers
