MATERIAL HANDLING

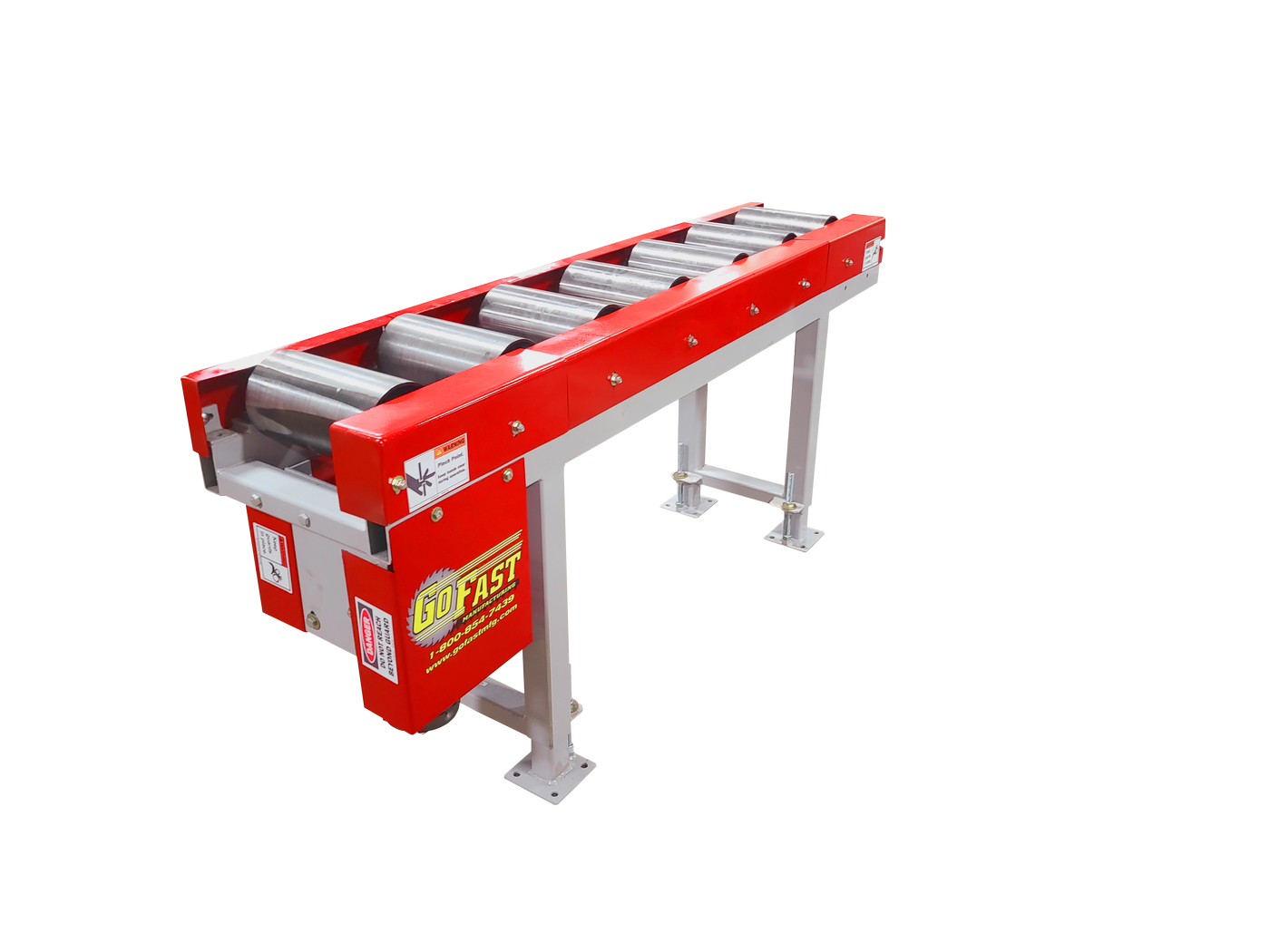

POWERED ROLL CASES

At Go Fast Manufacturing, we design and build powered roll cases to meet a wide range of material transfer applications. Whether handling large or small materials, our roll cases can be customized to match your system requirements. We offer both wide and narrow roll case designs, with configurations available for medium- and heavy-duty applications.

Engineered for durability and reliable performance, Go Fast Manufacturing roll cases help improve material flow and support efficient operation throughout your facility.

Parts & Support Download Spec Sheet

NOTE: Pricing shown is a starting point. Final quote depends on options and plant layout.

}

machine details

TYPES OF ROLL CASES

Side Feeders
Pallet Handling
Bi-Directional Roll Cases
Product Take-Away Roll Cases
Bundle Roll Cases

Customization

Our powered roll cases can be customized to meet the exact demands of your application, including width, roller configuration, and drive arrangement. Contact Go Fast Manufacturing to discuss a solution built for your operation.

Width Between Notches:

5" – 50"

Notch Height Capacity:

0" – 3" (Standard Range)

Board Width Capacity:

1" – 2-1/2" (Standard Range)

Board Length Capacity:

30" – 72" Standard
Optional: 96", 120", 144"

Board Height Capacity:

3" – 4" (Standard Range)

Custom Reports

Custom Data Collection Reports
Accessible via HMI or Email

Communication

Interfaces with Go Fast Machinery
Supports Custom Add-On E-Stops, Buttons & Sensors

Optional VPN

Remote Access for Go Fast Engineering
Advanced Off-Site Diagnostics

Troubleshooting

Live Troubleshooting Screen in HMI
Displays Faults & Sensor States
Quick Diagnostic Access.

Data Collection

Board Counts
Machine Hours
Production Reports

Adjustable Speed

3,000–7,000 Chain Lug Cycles Per Hour

Jam Prevention

Rotating Board Kick-Off Fingers
Catch Hooks for Doubled Boards
Thickness Limiter Bar
Seamless Conveyor Surface
Flat-Top Design Minimizes Angular Transitions

Infeed Chain

5-Strand 2060 Infeed
Evenly Spaced Cogs
UHMW Wear Strips

Guarding

See-Through Guarding
Quick-Access Doors
Optional E-Stop Door Interlock

Power

2HP Electric Motor

Construction

Welded Steel Frame
3/8" Thick Steel Plate Pit
3x2 Structural Steel Framing
1/4" Thick Steel Side Plates

Notcher Bypass Conveyor:

Allows Notcher to Be Bypassed
Integrated with Overhead Conveyor

Automatic board Stacker

UpSTAK Stacker Integrated to Outfeed
