Trim saws

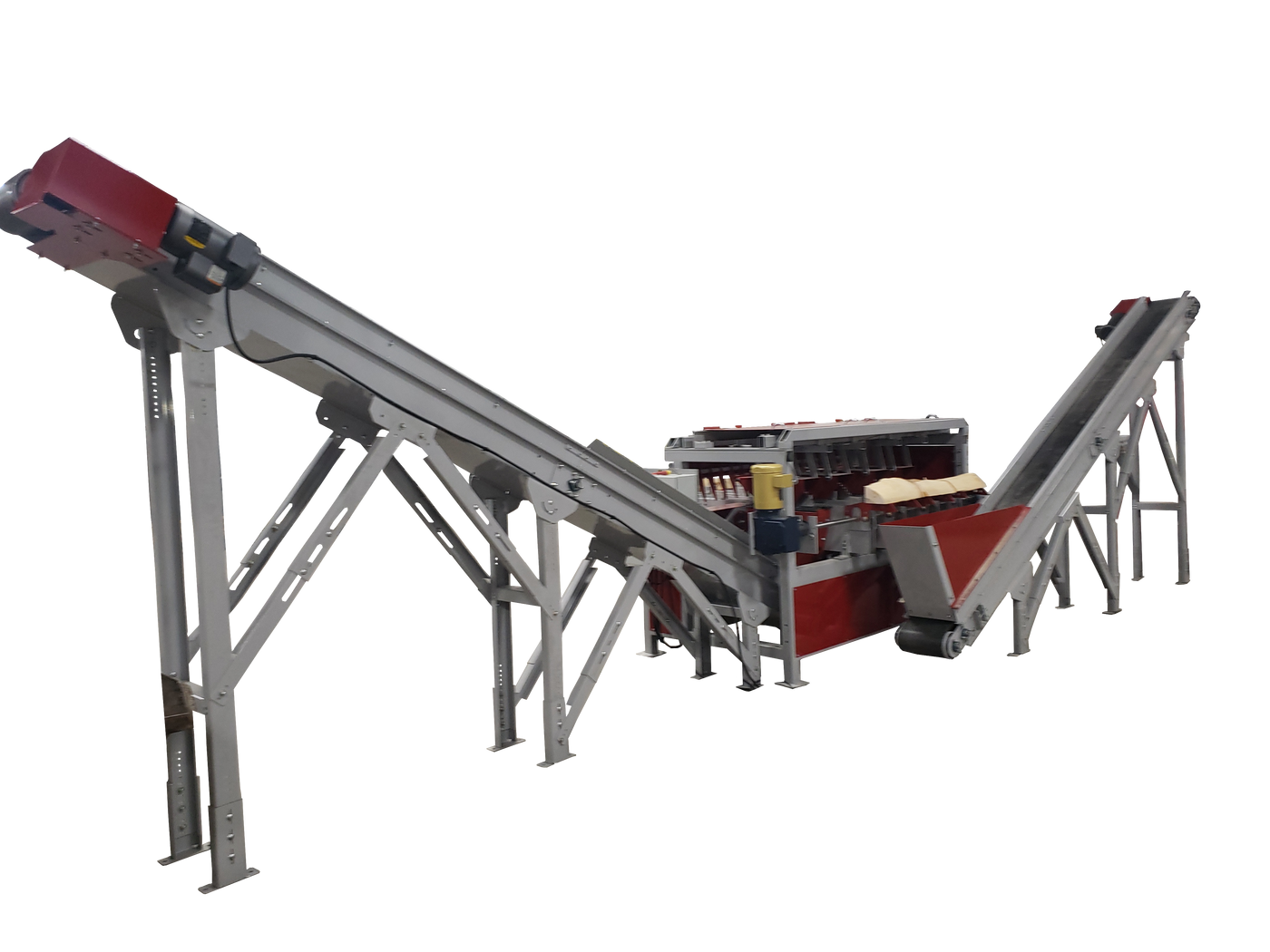

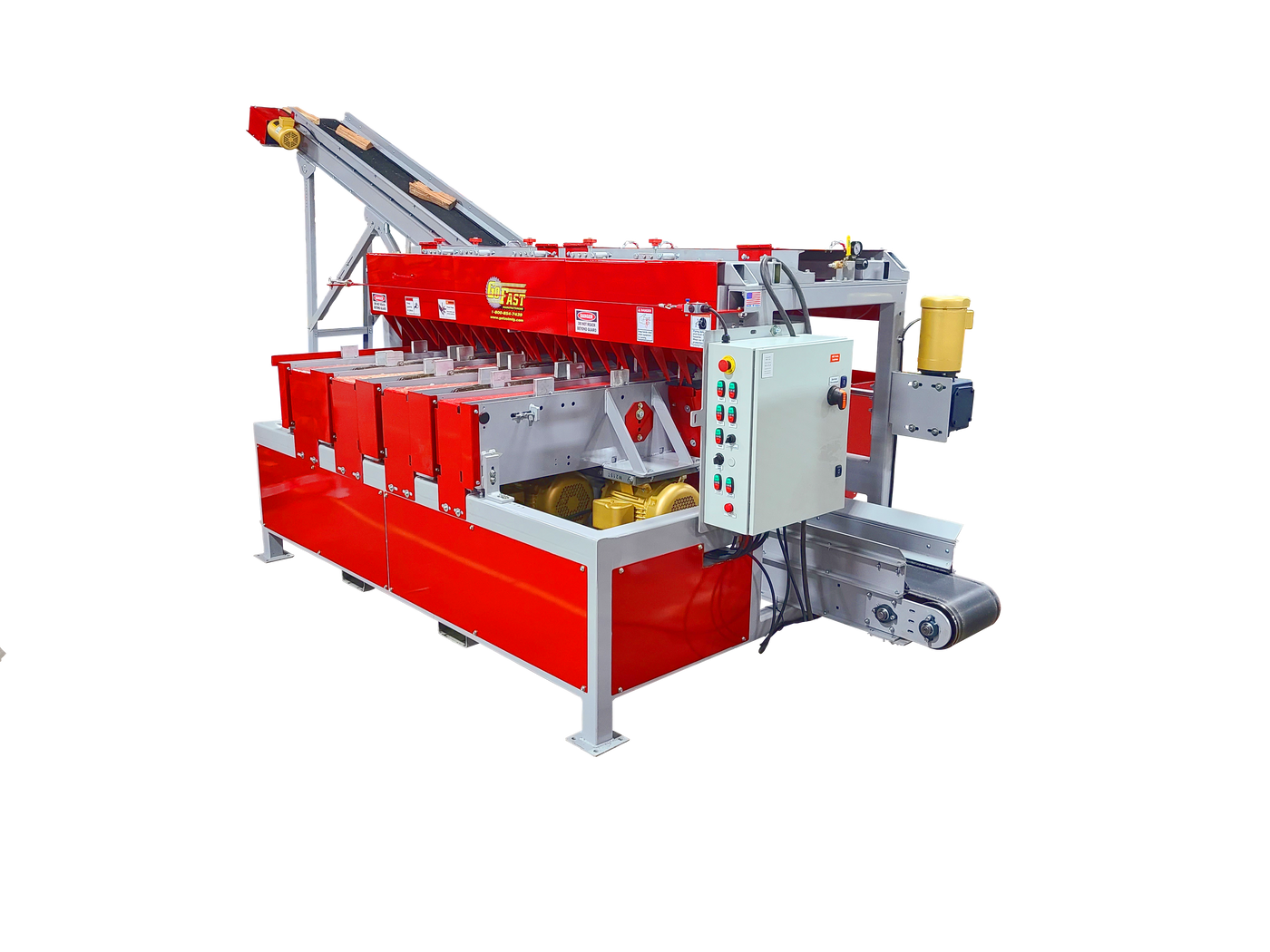

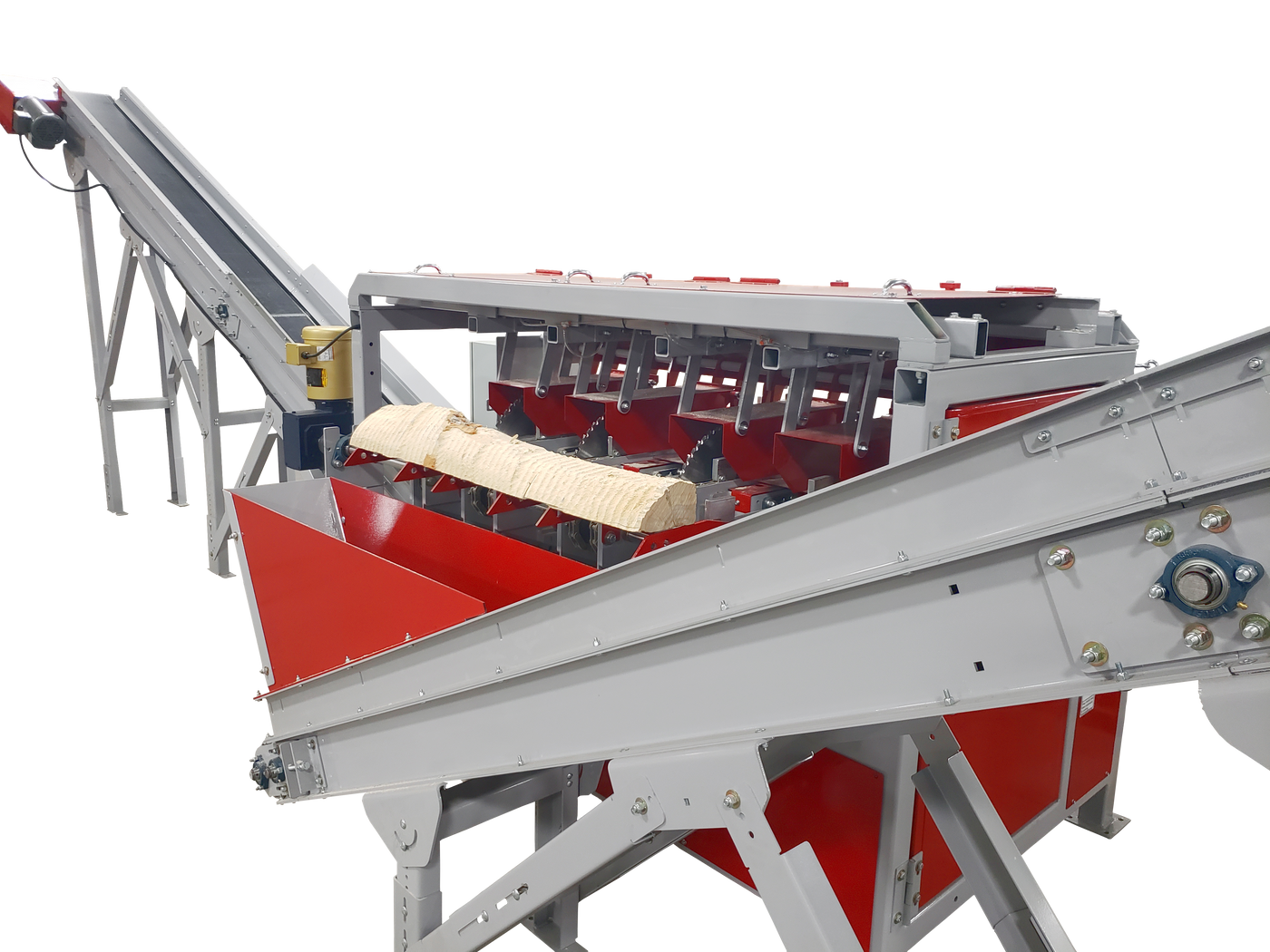

firewood slab trim saw

Turn your waste slabs into cash! The Go-Fast Slab Trim Saw is designed to trim pallet cut-stock slabs into firewood. A compact, safe, and fast way to get money back out of your waste!

Base Price $39,500 (3-Head x 72" Capacity Price)

Parts & Support Download Spec Sheet

NOTE: Pricing shown is a starting point. Final quote depends on options and plant layout.

}

FWT Video Library

SEE THE BEST SLAB TRIM SAW ON THE MARKET IN ACTION.

FOOTAGE OF: PROMOVIDEOS • TEST-RUNS • INSTALLS • OPTIONS

CLICK ON THE VIDEO BELOW TO SEE OUR FIREWOOD SLAB TRIM SAW IN ACTION

Overview

Designed for reclamation of cut-stock slabs into firewood of desirable length
Engineered for ease of use & operator safety

machine details

standard features

Panel Mounted Controls
1HP Variable Speed Infeed Chains
3/4HP 12" Product Belt Conveyor
3/4HP 12" Waste Belt Conveyor

Blade specifications

Blade:

20" Carbide Tipped

Power:

10HP 3 Phase (Standard)

Cycle Speed

0 – 32 Cogs Per Minute

waste evacuation

12" Waste Conveyor

frame & build

3" Square Tubular Framing
1-1/2" Blade Arbors & Bearings

safety

Enclosed Blades

Cable Pull E-Stops

Anti-Kickback Fingers

dimensions

Length: 120" (72" Model)

Width: 100"

Height: 64"

Infeed Height: 34"

slab width capacity:

1/2" – 8"

slab height capacity

Up to 4"

slab length capacities:

Available Models (More Options Available upon Request):

72" Length Capacity
120" Length Capacity

number of heads

2 – 6 (Standard)

Custom Reports

Custom Data Collection Reports
Accessible via HMI or Email

Communication

Interfaces with Go Fast Machinery
Supports Custom Add-On E-Stops, Buttons & Sensors

Optional VPN

Remote Access for Go Fast Engineering
Advanced Off-Site Diagnostics

Troubleshooting

Live Troubleshooting Screen in HMI
Displays Faults & Sensor States
Quick Diagnostic Access.

Data Collection

Board Counts
Machine Hours
Production Reports

Adjustable Speed

3,000–7,000 Chain Lug Cycles Per Hour

Jam Prevention

Rotating Board Kick-Off Fingers
Catch Hooks for Doubled Boards
Thickness Limiter Bar
Seamless Conveyor Surface
Flat-Top Design Minimizes Angular Transitions

Infeed Chain

5-Strand 2060 Infeed
Evenly Spaced Cogs
UHMW Wear Strips

Guarding

See-Through Guarding
Quick-Access Doors
Optional E-Stop Door Interlock

Power

2HP Electric Motor

Construction

Welded Steel Frame
3/8" Thick Steel Plate Pit
3x2 Structural Steel Framing
1/4" Thick Steel Side Plates

machine options

10HP Single Phase Blade Motors (Up to 2 Heads)
Length Capacities: Various Frame Lengths for Different Capacities
Variable Speed Controls for Conveyors

system options

Infeed Chain/Belt Conveyor
Outfeed Chain/Belt Conveyor
Firewood Wrappers
Dump Hoppers
Stacking Racks

Power

1/3HP Electric Motor

Setup Process

Actuated Transition Plates
Toggle Switch to Air Cylinders

Chain

Dual 2060 Cogged Chain Strands

Transitions

Seamless UHMW Transitions
Smooth Transfer to Board Stackers

Note Subject to change

Compare Our Trimsaws

Quick comparison to help you select the right machine for your operation.

Machine name	MET-20 View machine	DET-20 View machine	TS-10 View machine	Stringer Trimmer View machine	firewood slab trim saw View machine
Number of Heads	3-8	2	1	1-4	2-6
Cycle rate	Up to 32 Cogs/Minute	Up to 32 Cogs/Minute	Up to 33 Cogs/Minute	Up to 40 Cogs/Minute	Up to 32 Cogs/Minute
Material capacity	Up to 12" Wide X 5" Tall	Up to 8" Wide x 4-1/2" Tall	Up to 8" Wide x 4" Tall	Up to 10" Wide x 2" Tall	Up to 8" Wide x 4" Tall
Power options	10HP 3-Phase Standard	5HP 3-Phase Standard	5HP 3-Phase Standard	5HP 3-Phase Standard	10HP 3-Phase Standard
