Pallet Notchers

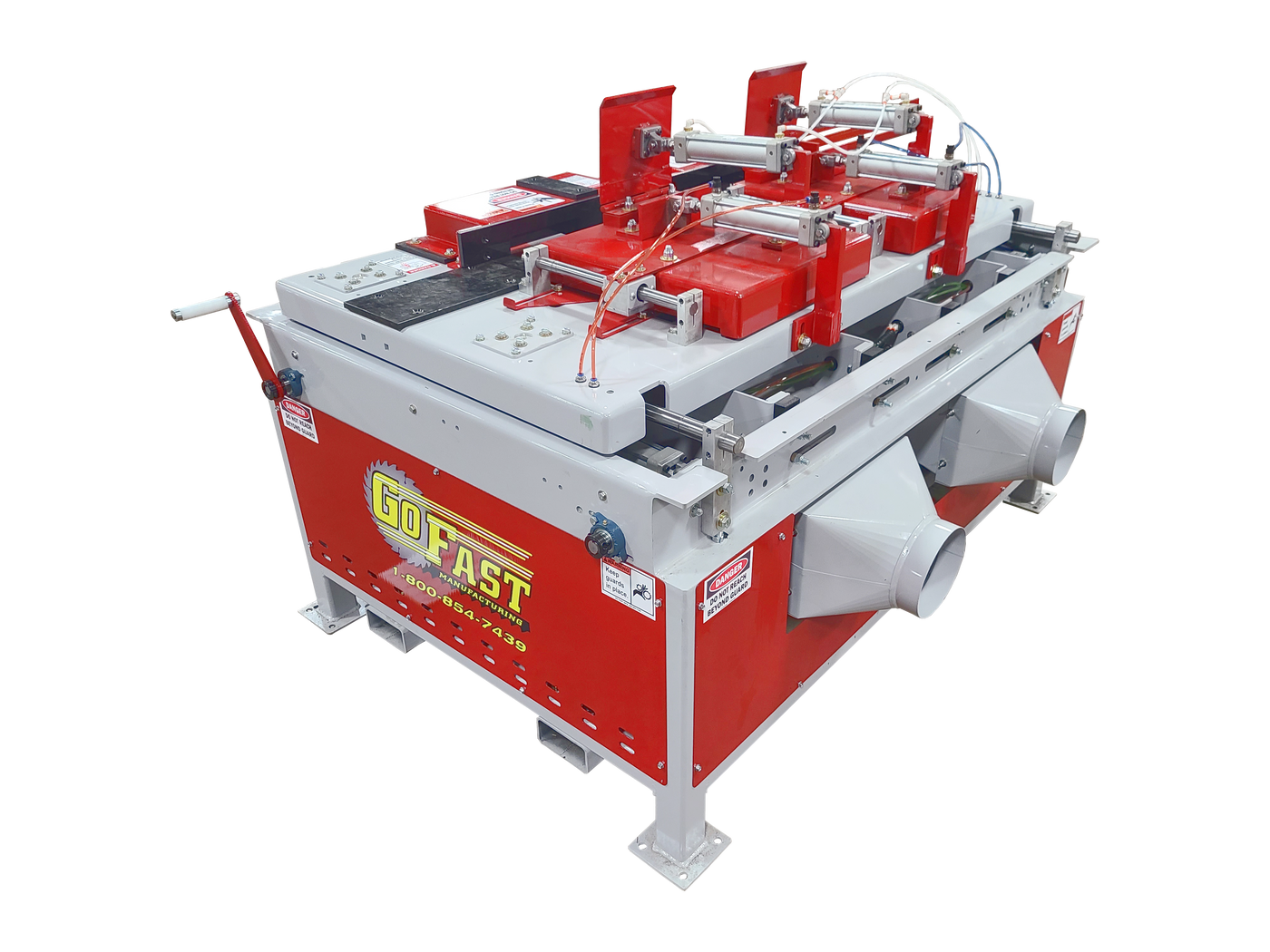

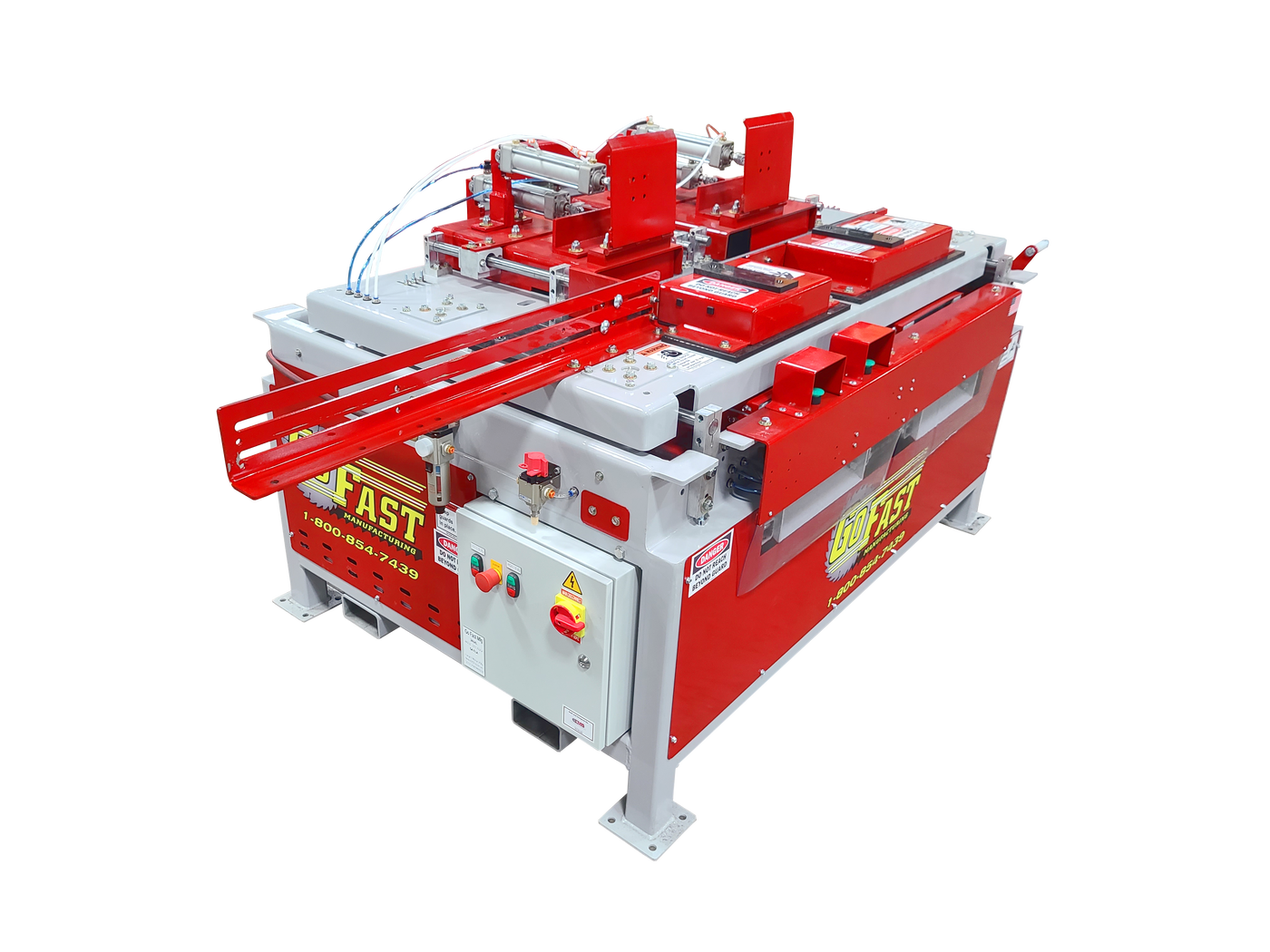

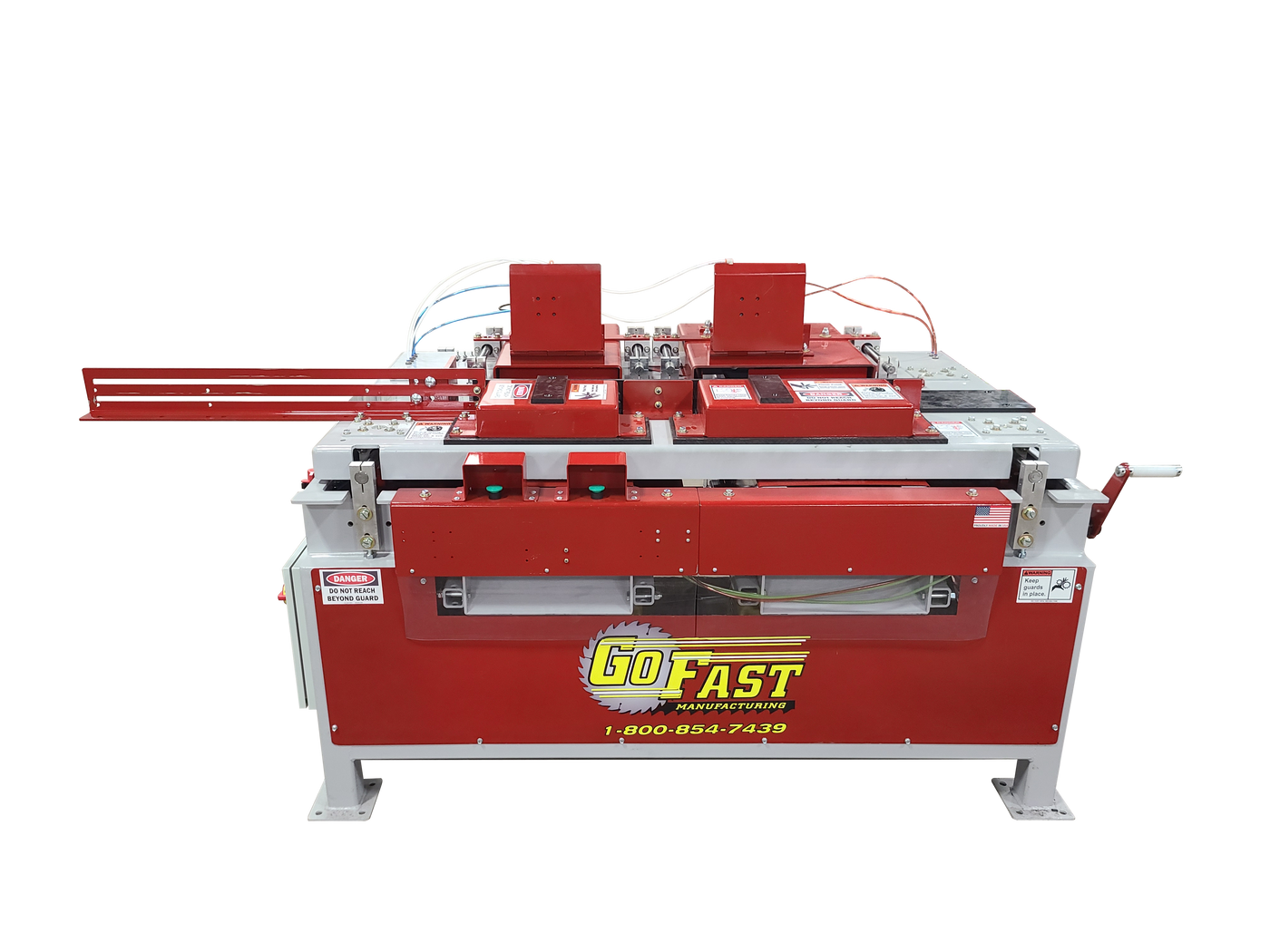

2NXL Double Head Notcher

The Go Fast 2NXL Double Head Notcher is a heavy-duty pneumatic notcher built for pallet makers and specialty sawmills that need a practical step up from entry-level single-head notching.

Designed to fill the gap between basic manual notchers and fully automatic, high-production double-head systems, the 2NXL gives shops a simple, operator-controlled double-head notching solution without the cost, footprint, or complexity of auto-feed equipment.

The 2NXL has a compact footprint, making it a good fit for shops where floor space matters. It also features a 6-inch notching throat, allowing up to four boards to be notched per cycle depending on material thickness.

It is a strong fit for moderate production, specialty runs, recycled material, and operations that need flexibility without full automation.

Recommended for: Medium production plants running new or recycled pallet lumber.

Base Price $30,250

Parts & Support Download Spec Sheet

NOTE: Pricing shown is a starting point. Final quote depends on options and plant layout.

}

2NXL Notcher Video Library

SEE THE BEST NOTCHER ON THE MARKET IN ACTION.

Shareable Playlist Here

FOOTAGE OF: PROMOVIDEOS • TEST-RUNS • INSTALLS • OPTIONS

CLICK ON THE VIDEOS BELOW TO SEE OUR 2NXL NOTCHERS IN ACTION

Overview

Designed for low to medium levels of production
Engineered for ease of use & operator safety

machine details

Hand Crank Adjustments

Width Between Notches

Cutter head drive

Dual 20HP Motors (Independent per Head)
3-Groove Belt & Pulley Drive
3,600 RPM, 2” Cutter Head Arbors

Cycle Speed

Up to 1,750 Stringers per Hour

air system

100 PSI Operating Pressure at 25 CFM
2” Bore Air Cylinders (6 Total)
Includes the Following: Dual Hand Safety Controls, Lockout Valve, Regulator w/ Filter, Pressure Relief, Reservoir, Table Speed Controllers, & Mechanical Valves

Dust collection

(2) 8” Dust Ports
4,600 CFM Recommended
Optional Sawdust Conveyor

safety

E-Stop
Dual Hand Safety Controls
Enclosed Cutter Heads

dimensions

60" Long x 103" Wide x 52" Tall
37" Working Height

frame & build

3/8” Thick Steel Tabletop & Framing
1-1/4” Linear Bearings for Tabletop
1” Linear Bearings for Clamps
Hardened Linear Bearing Shafts

Width Between Notches:

14" – 18" (12-1/2" – 19-1/2" via Additional Setup)

Notch Height Capacity:

0" – 2-1/2" (Standard Range)

Notch Width

9" Wide (1/2" – 12" Available)

Board Width Capacity:

Up to 6"

Board Length Capacity:

Up to 112" (Standard)

Board Height Capacity:

4" (Standard)

Custom Reports

Custom Data Collection Reports
Accessible via HMI or Email

Communication

Interfaces with Go Fast Machinery
Supports Custom Add-On E-Stops, Buttons & Sensors

Optional VPN

Remote Access for Go Fast Engineering
Advanced Off-Site Diagnostics

Troubleshooting

Live Troubleshooting Screen in HMI
Displays Faults & Sensor States
Quick Diagnostic Access.

Data Collection

Board Counts
Machine Hours
Production Reports

Adjustable Speed

3,000–7,000 Chain Lug Cycles Per Hour

Jam Prevention

Rotating Board Kick-Off Fingers
Catch Hooks for Doubled Boards
Thickness Limiter Bar
Seamless Conveyor Surface
Flat-Top Design Minimizes Angular Transitions

Infeed Chain

5-Strand 2060 Infeed
Evenly Spaced Cogs
UHMW Wear Strips

Guarding

See-Through Guarding
Quick-Access Doors
Optional E-Stop Door Interlock

Power

2HP Electric Motor

Construction

Welded Steel Frame
3/8" Thick Steel Plate Pit
3x2 Structural Steel Framing
1/4" Thick Steel Side Plates

cutter heads

Multiple Cutter Carbide Options (New Material, Recycled Material, etc.)
Different Notch Widths Available (1/2" – 12")
Custom Notch Profiles

Custom capacities

Fence Extension Kits to Accommodate Material up to 144" or 186" Long
Riser Kit to Accommodate Material up to 6" Tall
Built to Accommodate Non-Standard Requirements
Modified for Unique Production Needs

waste removal

Flat & Riser Waste Conveyor
Dump Hoppers
Flex Hose Kit

other

Caster Feet
Stringer Stacking Rack
Stand Alone Control Station

Power

1/3HP Electric Motor

Setup Process

Actuated Transition Plates
Toggle Switch to Air Cylinders

Chain

Dual 2060 Cogged Chain Strands

Transitions

Seamless UHMW Transitions
Smooth Transfer to Board Stackers

Note Subject to change

Compare Our Notchers

Quick comparison to help you select the right machine for your operation.

Machine name	2NXL Double Head Notcher View machine	2nx double head notcher View machine	2NXL double head notcher View machine	nxl single head notcher View machine	nxlm single head notcher View machine	mn-10 single head notcher View machine
Automation level	Fully Automated	Partially Automated	Partially Automated	Partially Automated	Partially Automated	Partially Automated
Cycle rate	Up to 7,000 Stringers per Hour	Up to 1,750 Stringers per Hour	Up to 1,750 Stringers per Hour	Up to 800 Stringers per Hour	Up to 540 Stringers per Hour	Up to 240 Stringers per Hour
Material capacity	Up to 2-1/2" Wide X 4" Tall	Up to 8" Wide X 4" Tall	Up to 6" Wide X 4" Tall	Up to 6" Wide X 4" Tall	Up to 6" Wide X 4" Tall	Up to 2" Wide X 5-1/2" Tall
Power options	30HP 3-Phase Standard	20HP 3-Phase Standard	20HP 3-Phase Standard	20HP 3-Phase Standard	20HP 3-Phase Standard	10HP 3-Phase Standard
