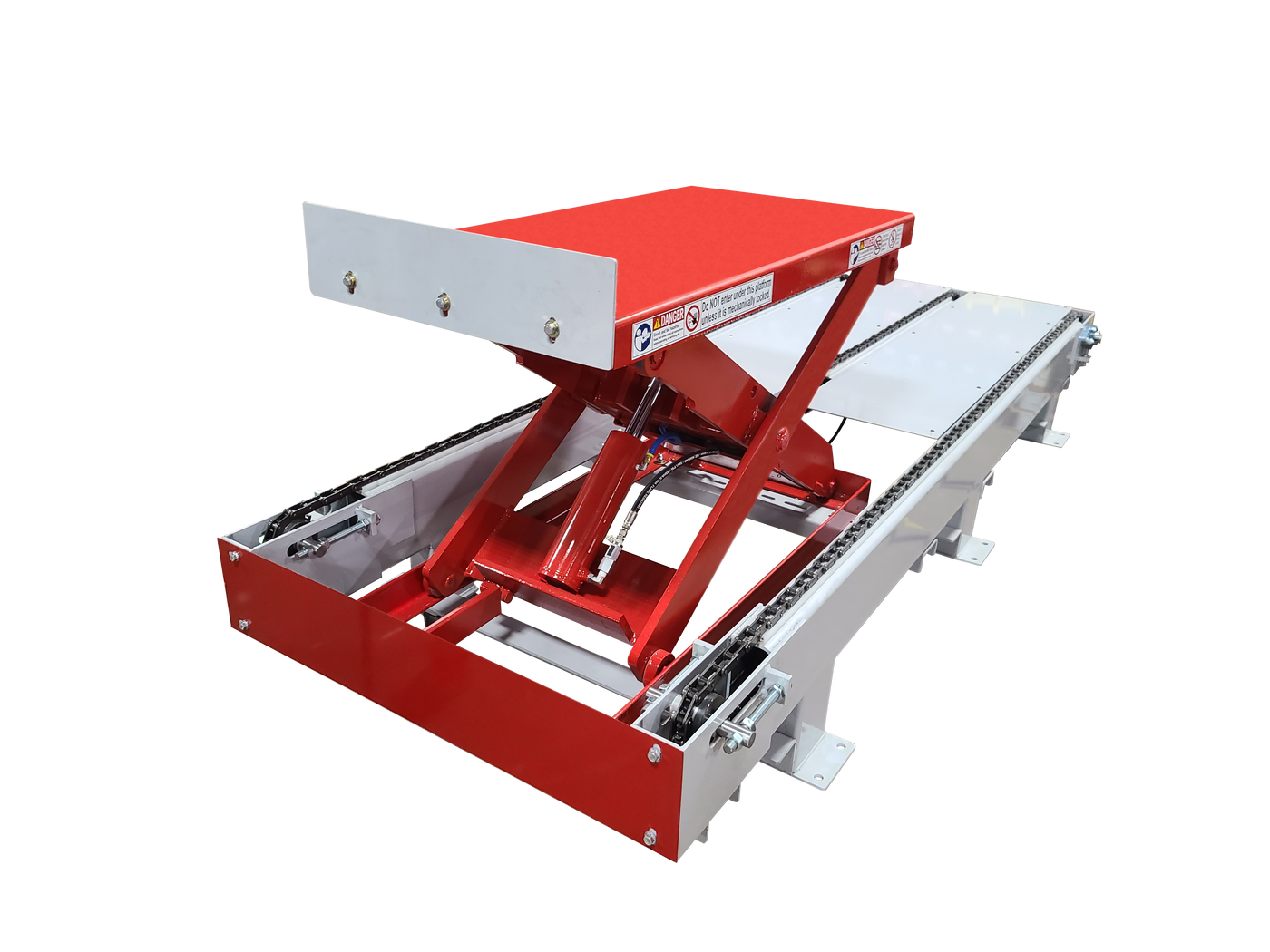

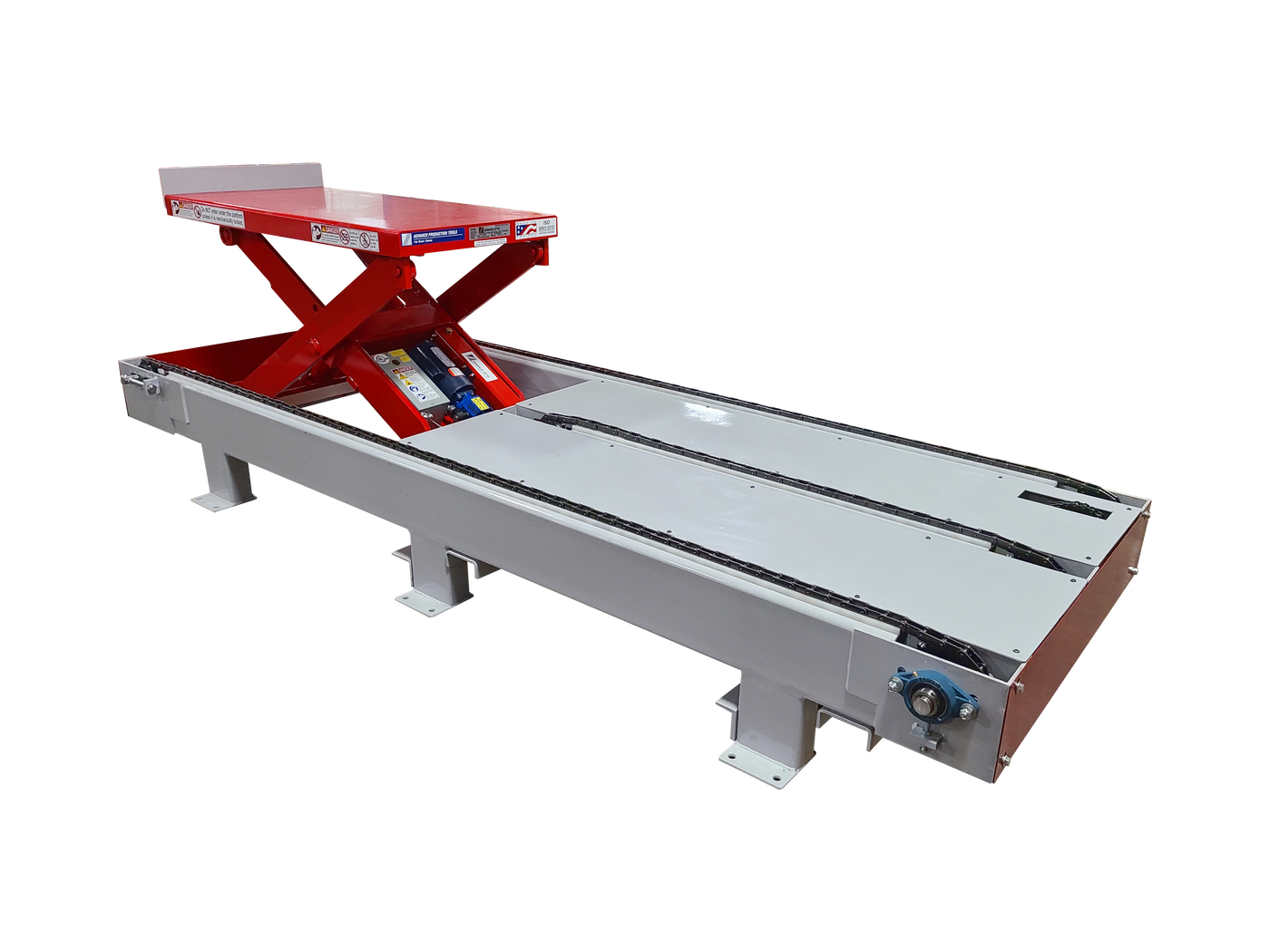

CDL – Chain Deck & Lift Table

The CDL Chain Conveyor and Lift Table is the ultimate solution for demanding operations. With user-friendly forward/reverse controls for the chain and up/down controls for the lift table, you’ll constantly have materials flowing to your machine.

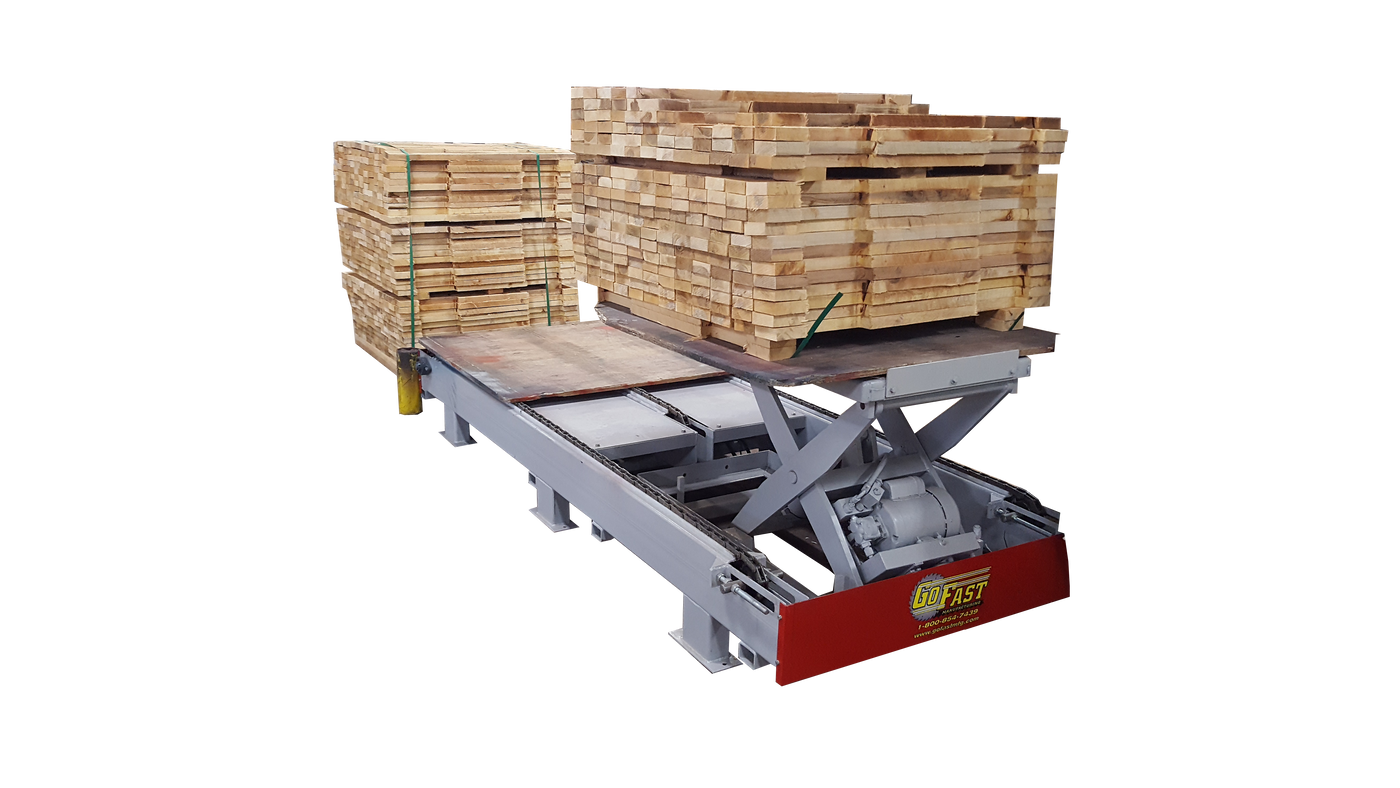

The 36” lift table keeps wood bundles within reach, and at the optimal height, eliminating the need for constant bending and lifting, Improving productivity and operator safety. Built with quality and durability in mind, the CDL Chain Conveyor and Lift Table make your life easier, your work smoother, and your business better.

Base Price $17,000 40" x 10' 2-strand w/ 1 lift table. Price breaks at quantities of 4 & 8

Parts & Support Download Spec Sheet

NOTE: Pricing shown is a starting point. Final quote depends on options and plant layout.

}

machine details

Chain Deck

Heavy-Duty 2060 Conveyor Chain
8x3 Tubular Chain Rails
Heavy-Duty Gear Drive
2HP Motor 3-Phase (Standard)
Adjustable Chain Speed Up to 24 FPM

Lift Table

24" Wide x 48" Long Platform
36" Travel Height
Foot Controls (Standard)
1.5HP Motor 3-Phase (Standard)

Dimensions & Capacities

123" Long x 45" Wide x 18" Tall (40" x 10' Model)
16" Chain Height
2,500 LB Lift Table Capacity (Standard)

Width Between Notches:

5" – 50"

Notch Height Capacity:

0" – 3" (Standard Range)

Board Width Capacity:

1" – 2-1/2" (Standard Range)

Board Length Capacity:

30" – 72" Standard
Optional: 96", 120", 144"

Board Height Capacity:

3" – 4" (Standard Range)

Custom Reports

Custom Data Collection Reports
Accessible via HMI or Email

Communication

Interfaces with Go Fast Machinery
Supports Custom Add-On E-Stops, Buttons & Sensors

Optional VPN

Remote Access for Go Fast Engineering
Advanced Off-Site Diagnostics

Troubleshooting

Live Troubleshooting Screen in HMI
Displays Faults & Sensor States
Quick Diagnostic Access.

Data Collection

Board Counts
Machine Hours
Production Reports

Adjustable Speed

3,000–7,000 Chain Lug Cycles Per Hour

Jam Prevention

Rotating Board Kick-Off Fingers
Catch Hooks for Doubled Boards
Thickness Limiter Bar
Seamless Conveyor Surface
Flat-Top Design Minimizes Angular Transitions

Infeed Chain

5-Strand 2060 Infeed
Evenly Spaced Cogs
UHMW Wear Strips

Guarding

See-Through Guarding
Quick-Access Doors
Optional E-Stop Door Interlock

Power

2HP Electric Motor

Construction

Welded Steel Frame
3/8" Thick Steel Plate Pit
3x2 Structural Steel Framing
1/4" Thick Steel Side Plates

Standard Options

Single Phase Chain Drive & Lift Table Motors
Lift Table Hand Controls
40" & 44" Deck Width
2 or 3 Strand Chains
1 Lift Table & 10' Long or 2 Lift Tables & 15' Long

Customization

If you require an option or customization not listed, please contact us. Our team will be happy to work with you to develop a solution that meets your specific requirements.

Power

1/3HP Electric Motor

Setup Process

Actuated Transition Plates
Toggle Switch to Air Cylinders

Chain

Dual 2060 Cogged Chain Strands

Transitions

Seamless UHMW Transitions
Smooth Transfer to Board Stackers

Note Subject to change
