Pallet Notchers

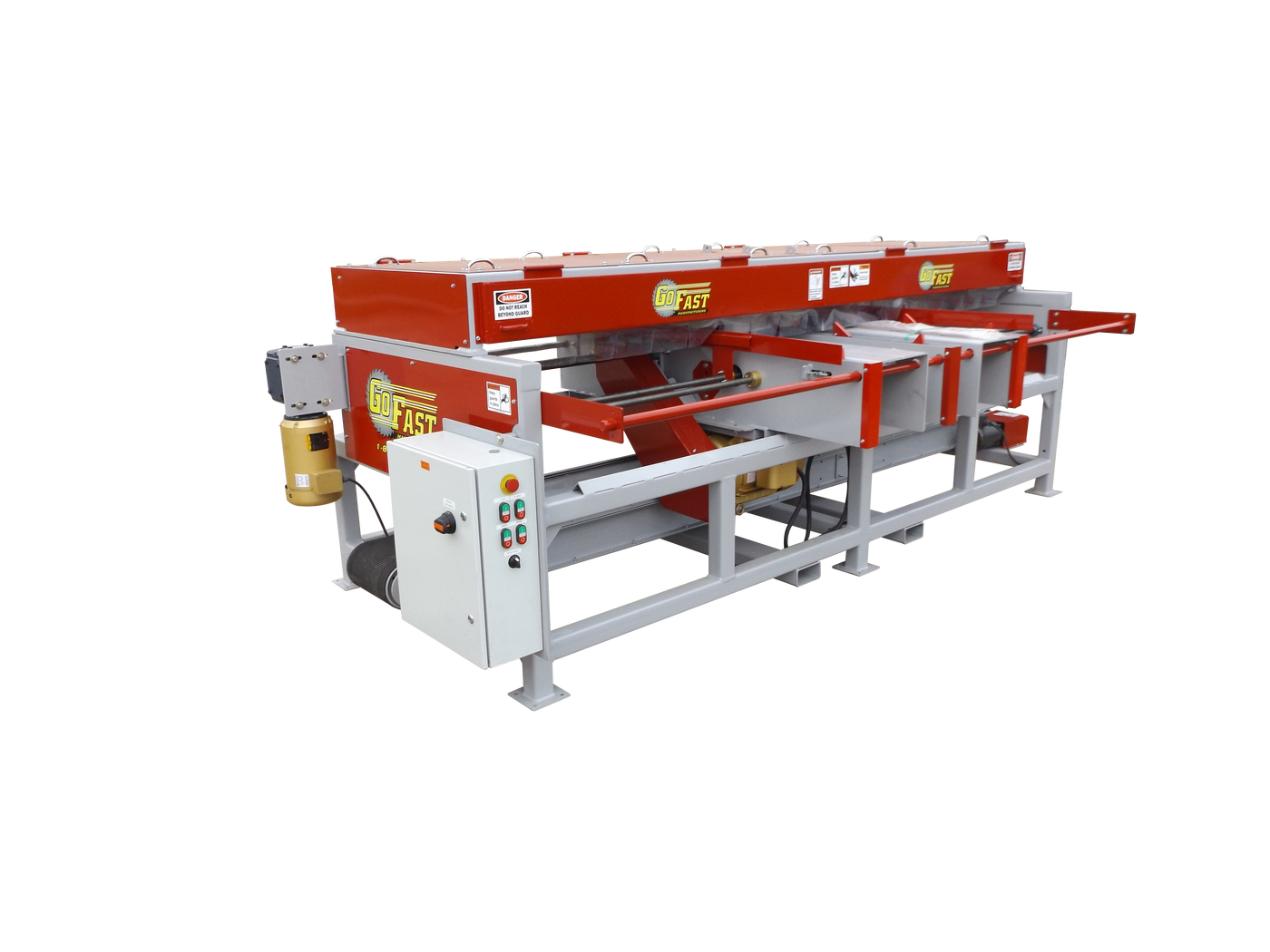

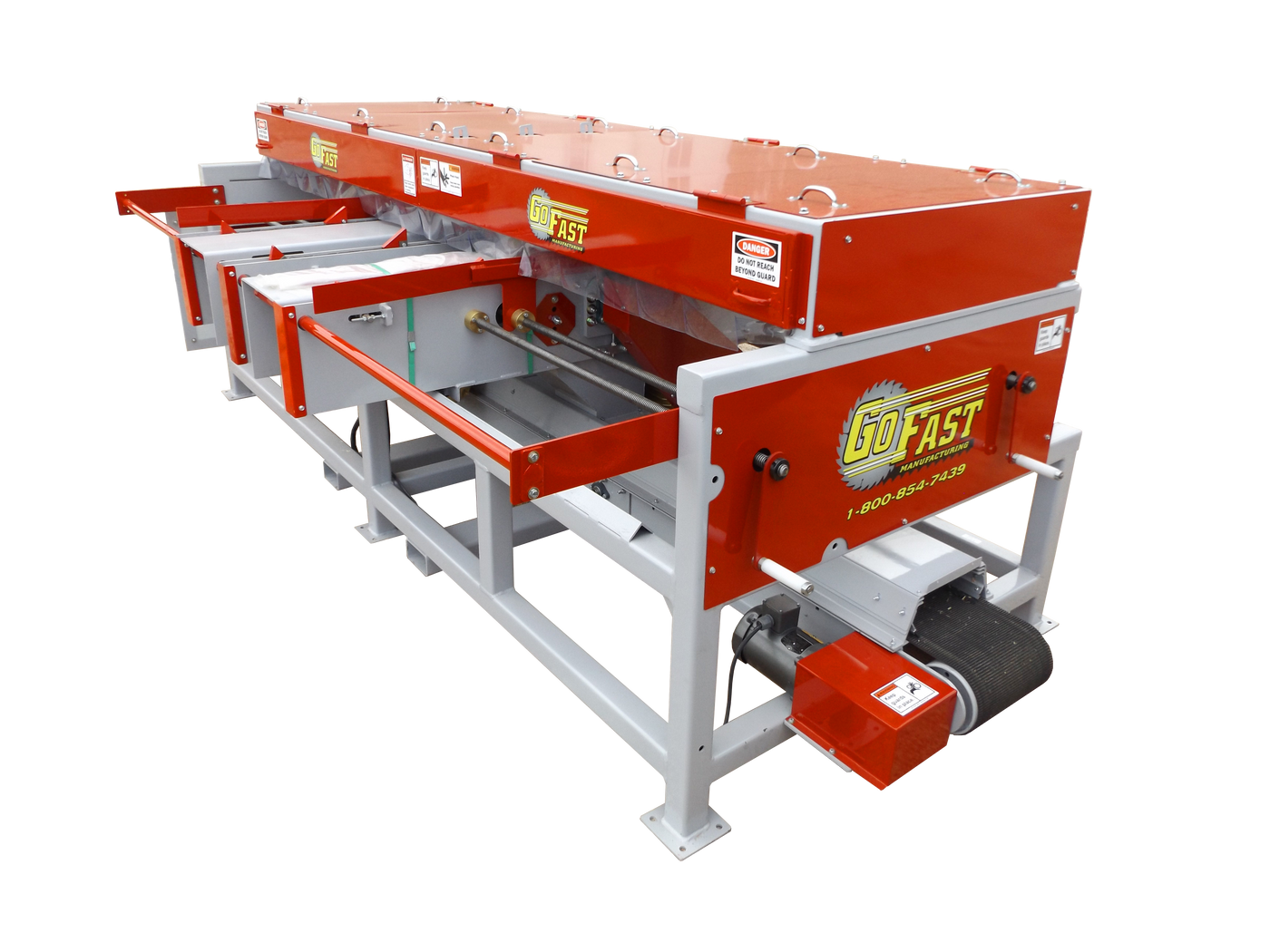

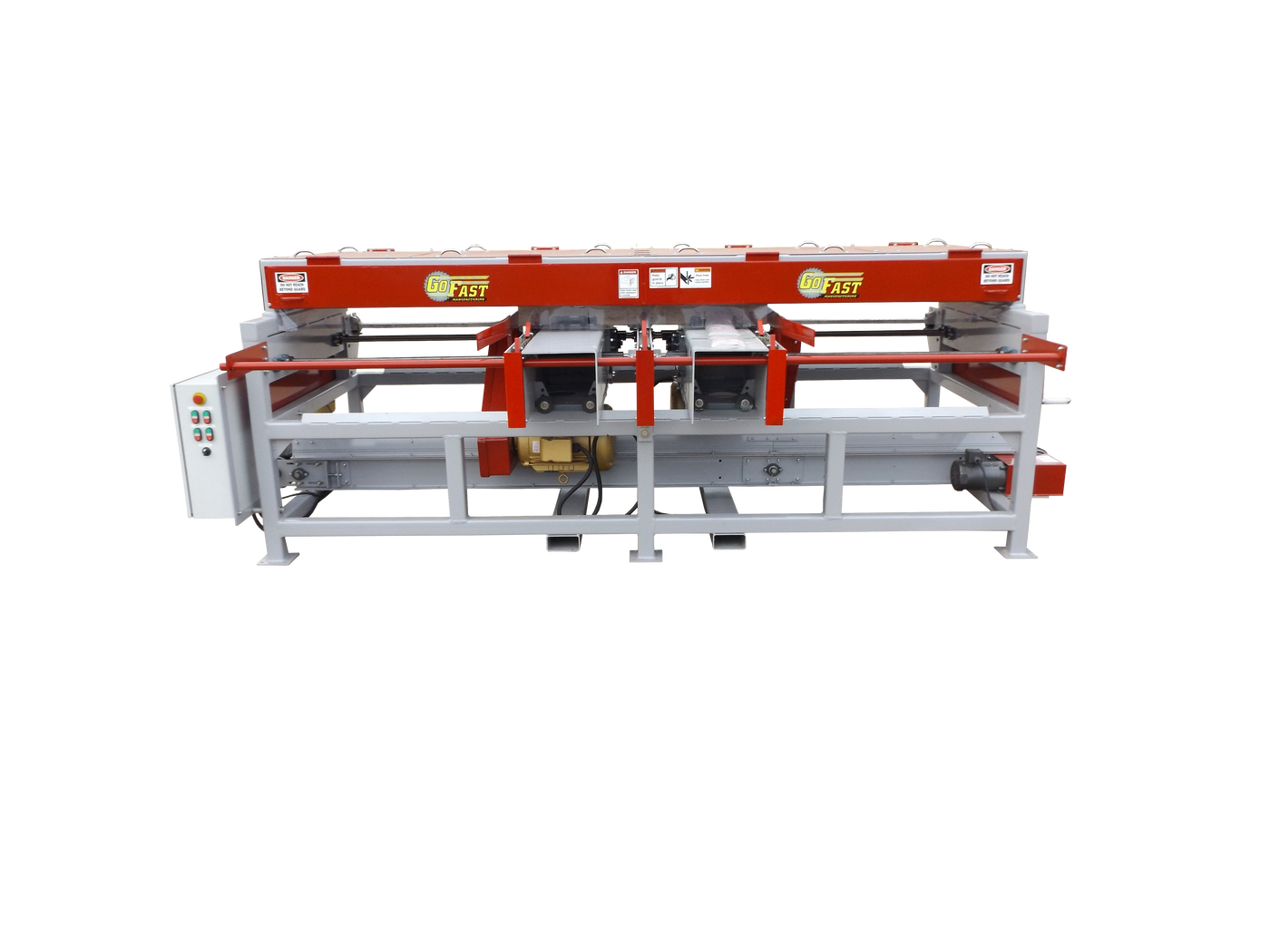

2NX High-Speed Double Head Notcher

The Go Fast 2NX Double Head Notcher is a simple, versatile, and heavy-duty notching machine built for pallet shops that need high production without unnecessary material handling.

For operations that are not feeding a notcher directly from a trim saw, material typically has to be removed from the bundle by hand anyway. The 2NX keeps that process straightforward: the operator places a handful of stringers, boards, cants, recycled material, or un-notched pallets directly onto the cogged chain infeed, and the machine feeds the material through the notching heads.

This design eliminates the need for an added unscrambling step in many applications while still providing strong production capability. The 2NX comes standard with variable infeed speed, adjustable from 0–44 FPM with the turn of a knob, giving operators simple control over production speed based on material and workflow.

Recommended for: High production plants running new or recycled pallet lumber.

Base Price $41,150 (72" Capacity Price)

Parts & Support Download Spec Sheet

NOTE: Pricing shown is a starting point. Final quote depends on options and plant layout.

}

2NX Notcher Video Library

Full Playlist Here

FOOTAGE OF: PROMOVIDEOS • TEST-RUNS • INSTALLS • OPTIONS

CLICK ON THE VIDEOS BELOW TO SEE OUR 2NX NOTCHERS IN ACTION

Controls & Automation

Dial controlled infeed speed & direction
Start/Stop push button controlled cutterheads
Cable pull E-Stops on infeed & outfeed sides
All motors equipped with circuit overload protection

Machine details

hand crank adjustments

Boot Location

Board Length

cutter head drive

Dual 20HP Motors (Independent Per Head)

3-Groove Belt & Pulley Drive

3,600 RPM Cutter Head Arbors

infeed drive

Cogged Chain

cycle speed

Up to 4,000 Stringers/Hour (Material Dependent)

Dust collection

(2) 10" Dust Ports

7200 CFM Recommended

Optional Sawdust Conveyor

safety

Cable Pull E-Stops

Blade & Belt Guards

Width Between Notches:

Use this for bullets or stacked lines.

Notch Height Capacity:

0"-3" (Standard)

Board Width Capacity:

1"-8" (Standard)

Board Height Capacity:

2-1/2" to 4" (Standard)

Board Length Capacities:

36" to Model Dimension

Available Models:

48" Length Capacity
72" Length Capacity
96" Length Capacity
120" Length Capacity
144" Length Capacity
168" Length Capacity
192" Length Capacity

48" to 192" Length Capacities

Variety of length capacities available to suite customers specific needs

Waste conveyor

A waste conveyor allows for safe operation of the machine when running recycled material by reducing fire hazards introduced by the standard dust collection system

pallet fixture

Allows operator to run assembled 2-way pallets through the machine

system add-on options

Waste Riser
Infeed Chain/Conveyor
Outfeed Chain/Conveyor
Stacking Racks
Sorting Tables

Note Subject to change

Compare Our Notchers

Quick comparison to help you select the right machine for your operation.

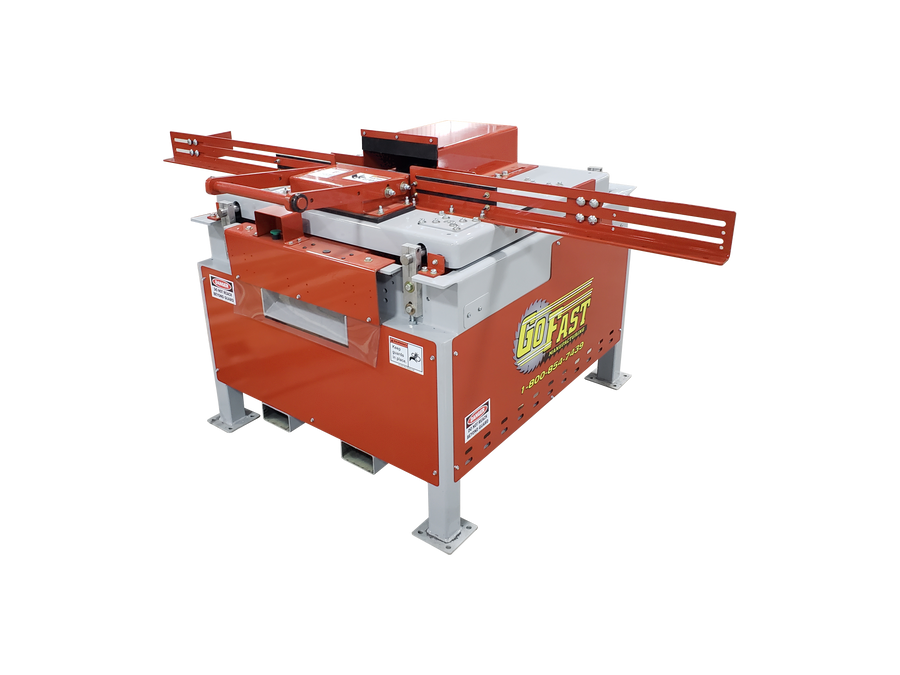

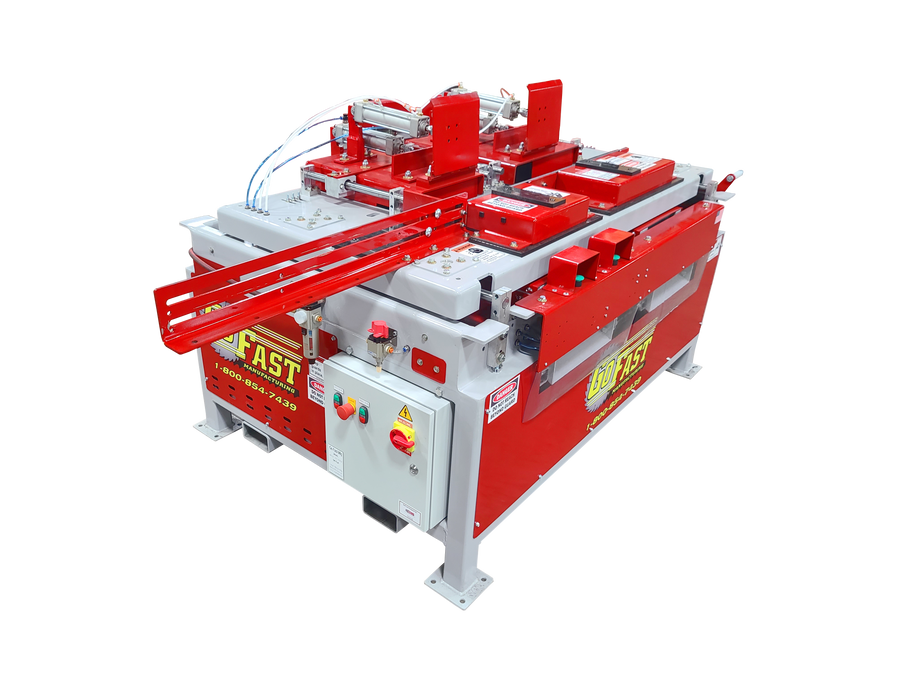

Machine name	2NXP Double Head Notcher View machine	2NX Double Head Notcher View machine	2nxl double head notcher View machine	NXL SINGLE HEAD NOTCHER View machine	nxlm single head notcher View machine	mn-10 single head notcher View machine
Automation level	Fully Automated	Partially Automated	Partially Automated	Partially Automated	Partially Automated	Partially Automated
Cycle rate	Up to 7,000 Stringers Per Hour	Up to 4,000 Stringers per Hour	Up to 1,750 Stringers per Hour	Up to 800 Stringers per Hour	Up to 540 Stringers per Hour	Up to 240 Stringers per Hour
Material capacity	Up to 2-1/2" Wide X 4" Tall	Up to 8" Wide X 4" Tall	Up to 6" Wide X 4" Tall	Up to 6" Wide X 4" Tall	Up to 6" Wide X 4" Tall	Up to 2" Wide X 5-1/2" Tall
Power options	30HP 3-Phase Standard	20HP 3-Phase Standard	20HP 3-Phase Standard	20HP 3-Phase Standard	20HP 3-Phase Standard	10HP 3-Phase Standard
