Stackers

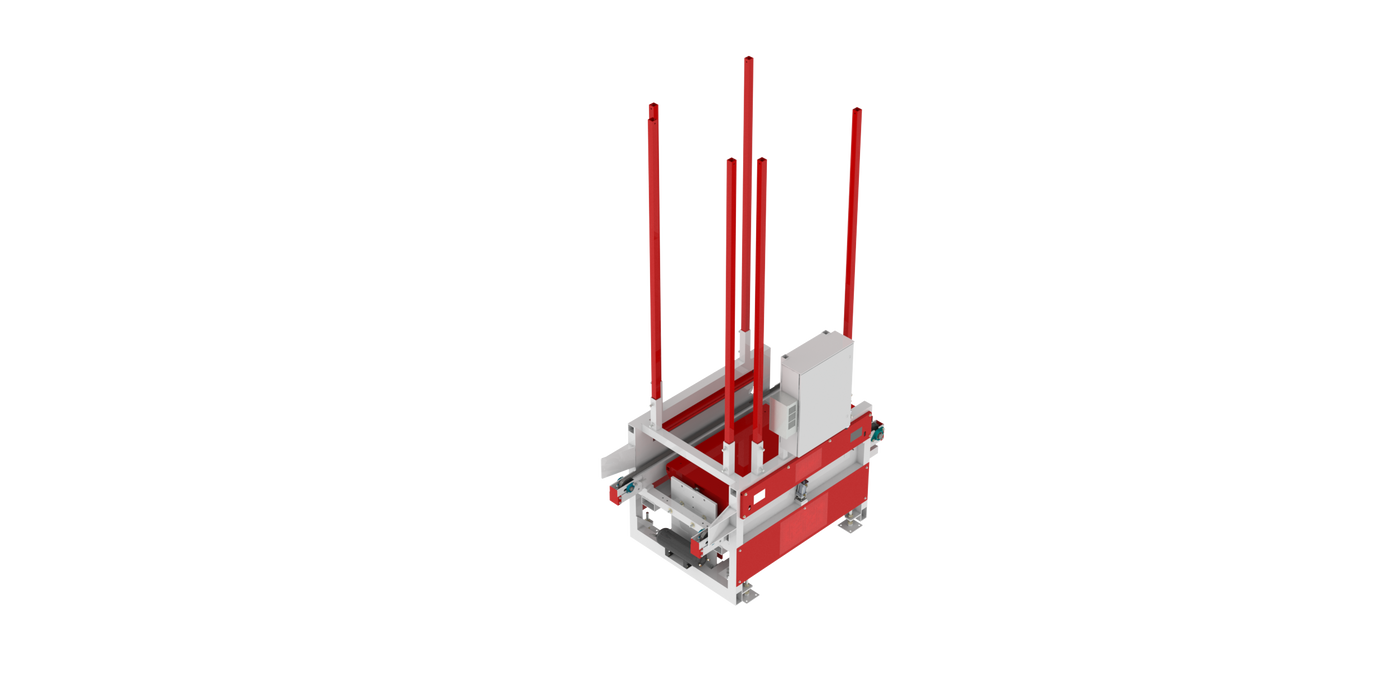

PalStak Pallet Stacker
Make perfect stacks of pallets ready to ship. The Go Fast PalSTAK is accurate and easy to operate. A simple chain infeed system allows the operator quickly insert the pallets with minimal effort. The air powered lift station ensures that your pallets lift smoothly and stack straight.The PalSTAK features air and electric operation in a fixed design. These machines offer a smaller footprint than many other available pallet stackers. They are available with single or multiple pallet stacking bays.
CLICK ON THE VIDEOS BELOW TO SEE OUR PALLET STACKER IN ACTION
machine details
Fully Automatic Stacking Operation
Programmable Counters for Stack Quantities
Electrically Driven Lifting Mechanism
Infeed Chains: 1/2HP 3-Phase
Pallet Pusher Chains: 1/2HP 3-Phase
Stack Lifter: 4HP 3-Phase Helical Gear Motor
Up to 10 Pallets/Minute per Stacker
Length: 60"
Width: 86"
Height: 180"
Loading Height: 28"
E-Stops & E-Stop Cable
Chain Guards
Anti-Tip Over Stack Cage
Stack Height Limit Sensor
5" – 50"
4840 Model: 40" Wide X 48" Long Pallets
4830 Model: 6" Tall X 30"-48" Wide X 48" Max-Long Pallets
6030 Model: 6" Tall X 30"-60" Wide X 60" Max-Long Pallets
Custom Data Collection Reports
Accessible via HMI or Email
Interfaces with Go Fast Machinery
Supports Custom Add-On E-Stops, Buttons & Sensors
Remote Access for Go Fast Engineering
Advanced Off-Site Diagnostics
Live Troubleshooting Screen in HMI
Displays Faults & Sensor States
Quick Diagnostic Access.
Pallet Counts
Specific Workstation Production Numbers
Pallet Grade Production Numbers
Machine Hours
3,000–7,000 Chain Lug Cycles Per Hour
Rotating Board Kick-Off Fingers
Catch Hooks for Doubled Boards
Thickness Limiter Bar
Seamless Conveyor Surface
Flat-Top Design Minimizes Angular Transitions
5-Strand 2060 Infeed
Evenly Spaced Cogs
UHMW Wear Strips
See-Through Guarding
Quick-Access Doors
Optional E-Stop Door Interlock
2HP Electric Motor
Welded Steel Frame
3/8" Thick Steel Plate Pit
3x2 Structural Steel Framing
1/4" Thick Steel Side Plates
4840 Fixed Size Model
4830 Adjustable Size Model
6030 Adjustable Size Model

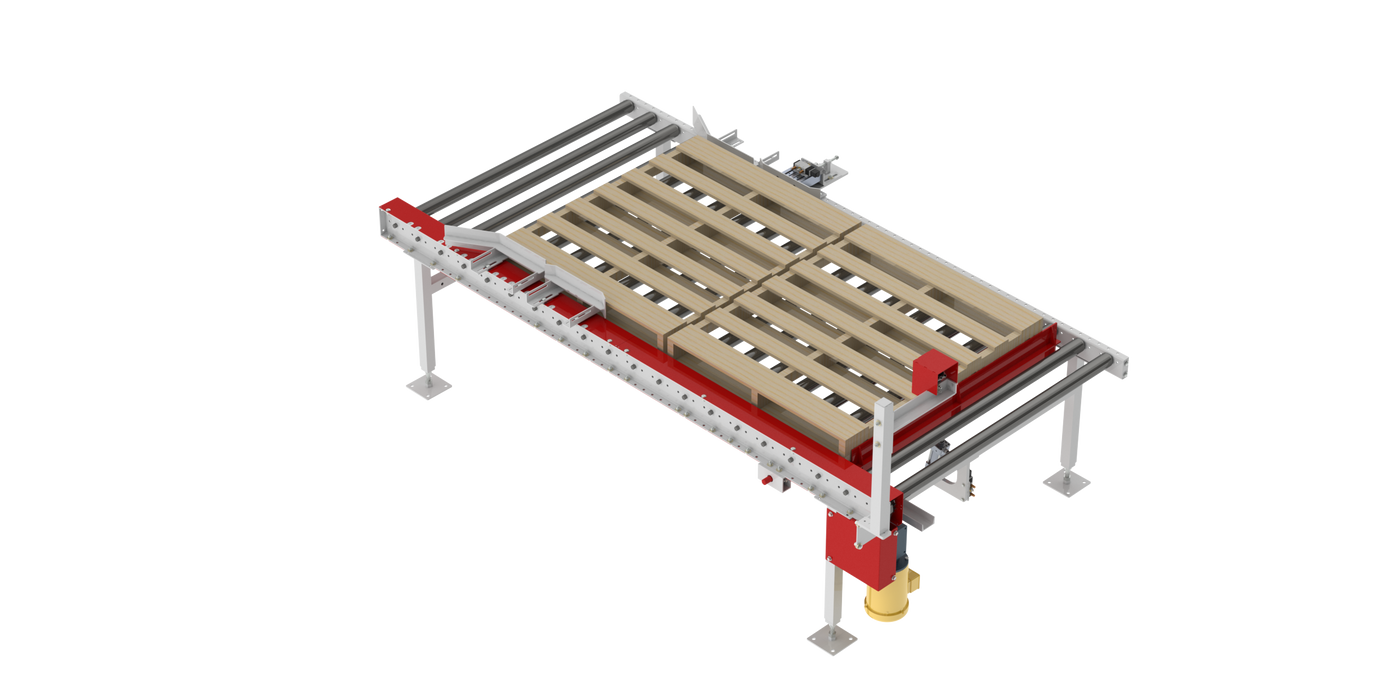

Live Roller Pallet Conveyors
Pallet Repair Stations
Multi-Tier Repair Lines
Waste Conveyors
Pallet Stack Tippers
Pallet Destackers
Stringer Splicer
AI Pallet Grader
Discharge Gravity Rollers
Built to Accommodate Non-Standard Requirements
Modified for Unique Production Needs
1/3HP Electric Motor
Actuated Transition Plates
Toggle Switch to Air Cylinders
Dual 2060 Cogged Chain Strands
Seamless UHMW Transitions
Smooth Transfer to Board Stackers
