Chopsaws

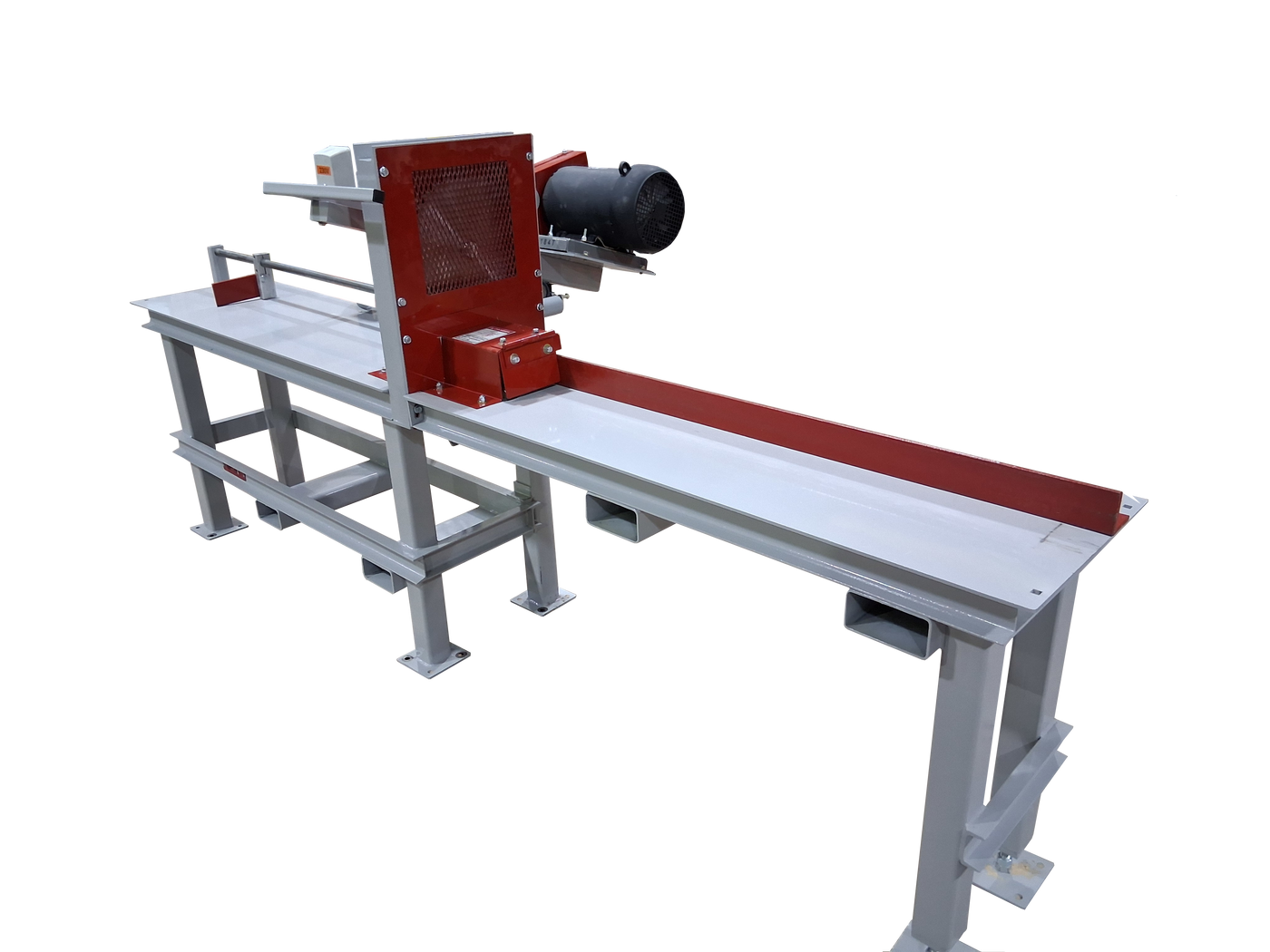

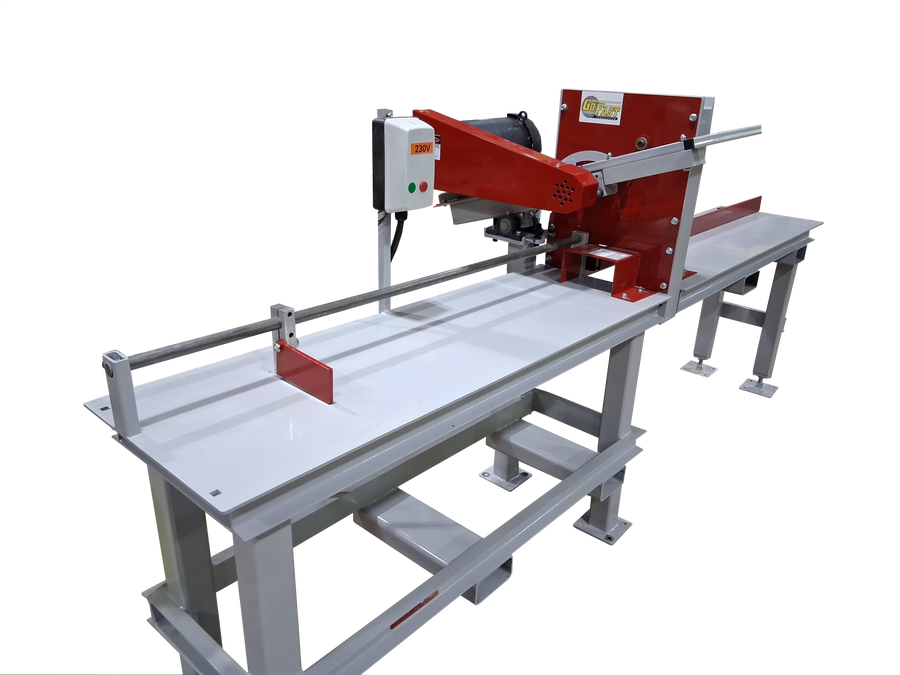

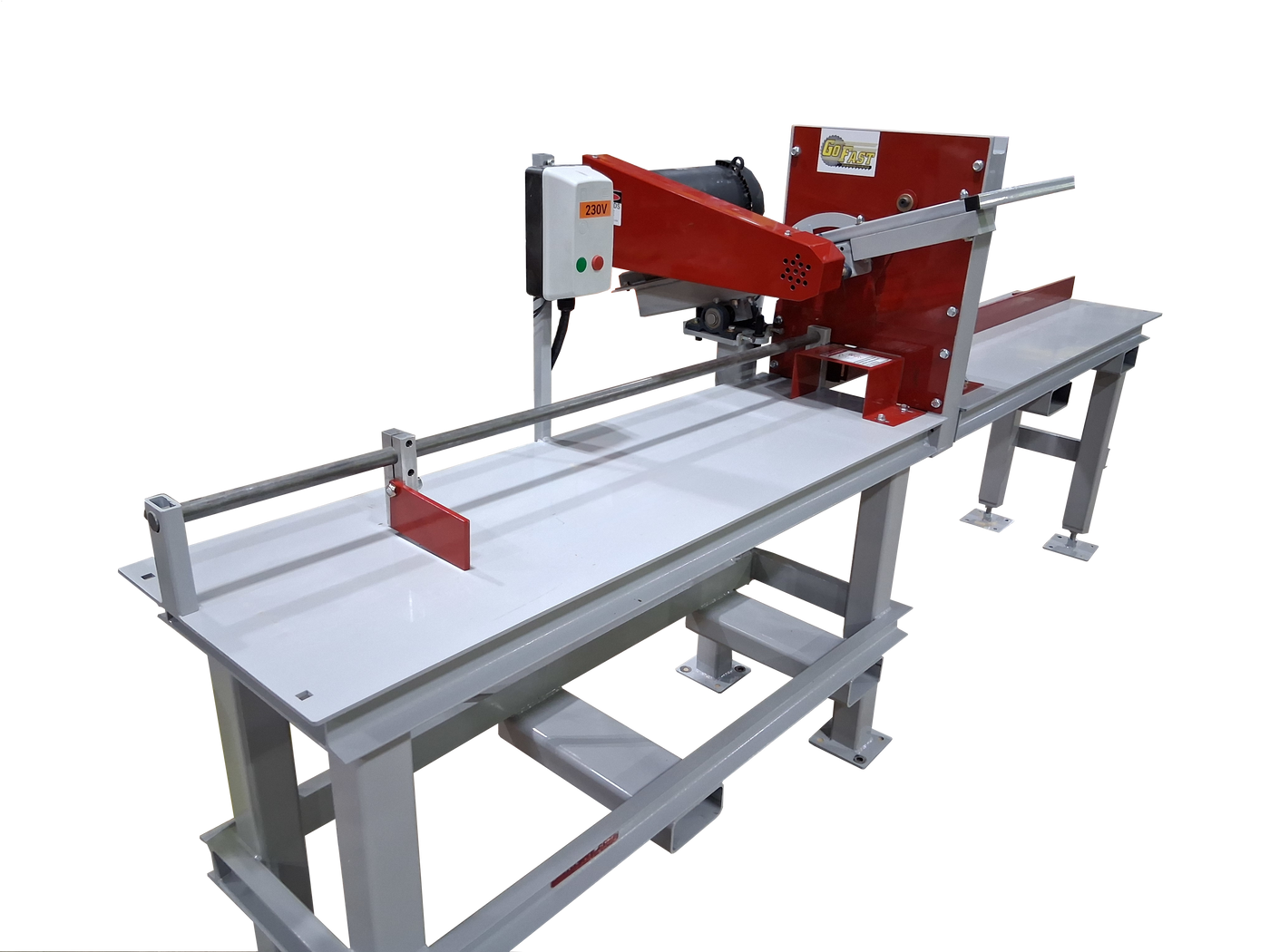

Mighty-Chop Chopsaw
The Mighty-Chop lives up to its name as a simple, powerful chop saw built for real-world pallet production. Designed for both new and recycled pallet operations, it allows operators to cut boards to length quickly, safely, and consistently, with an optional table extension available for staging cuts or supporting longer material. Safety is built in through a left-side hinging blade guard that keeps the operator protected—remaining closed when the blade is raised and opening automatically during the cut. Constructed with a heavy-duty 3" C-channel steel frame and a 3/16" steel tabletop, the Mighty-Chop is easy to operate, safe on the floor, and tough enough for all-day production.
CLICK ON THE VIDEOS BELOW TO SEE OUR MIGHTY-CHOP IN ACTION.
machine details
Manual Arm Control
Adjustable Board Stop
Infeed Table
Blade:
14" Carbide Tipped
Power:
5HP 3 Phase (Standard)
2” Dust Port (200 CFM)
Length: 70"
Width: 40"
Height: 56"
3" C-Channel Framing
3/16" Steel Sheet Top
1" Blade Arbor & Bearings
Belt Guard
Fully Enclosed Blade
6" Wide x 4" Tall
No Max Length
Custom Data Collection Reports
Accessible via HMI or Email
Interfaces with Go Fast Machinery
Supports Custom Add-On E-Stops, Buttons & Sensors
Remote Access for Go Fast Engineering
Advanced Off-Site Diagnostics
Live Troubleshooting Screen in HMI
Displays Faults & Sensor States
Quick Diagnostic Access.
Board Counts
Machine Hours
Production Reports
3,000–7,000 Chain Lug Cycles Per Hour
Rotating Board Kick-Off Fingers
Catch Hooks for Doubled Boards
Thickness Limiter Bar
Seamless Conveyor Surface
Flat-Top Design Minimizes Angular Transitions
5-Strand 2060 Infeed
Evenly Spaced Cogs
UHMW Wear Strips
See-Through Guarding
Quick-Access Doors
Optional E-Stop Door Interlock
2HP Electric Motor
Welded Steel Frame
3/8" Thick Steel Plate Pit
3x2 Structural Steel Framing
1/4" Thick Steel Side Plates
Additional Board Stops
Casters
Outfeed Table
Table Extensions
Left or Right Configurations
Take-Away Rollcase
Lift Table
Dust Collector
Automatic Air System to Convert Into "NXL" Notcher
10HP Motor Single Phase (May Decrease Production Rates)
Caster Feet
Stringer Stacking Rack
Stand Alone Control Station
1/3HP Electric Motor
Actuated Transition Plates
Toggle Switch to Air Cylinders
Dual 2060 Cogged Chain Strands
Seamless UHMW Transitions
Smooth Transfer to Board Stackers
Compare Our Chopsaws
Quick comparison to help you select the right machine for your operation.
| Machine name |

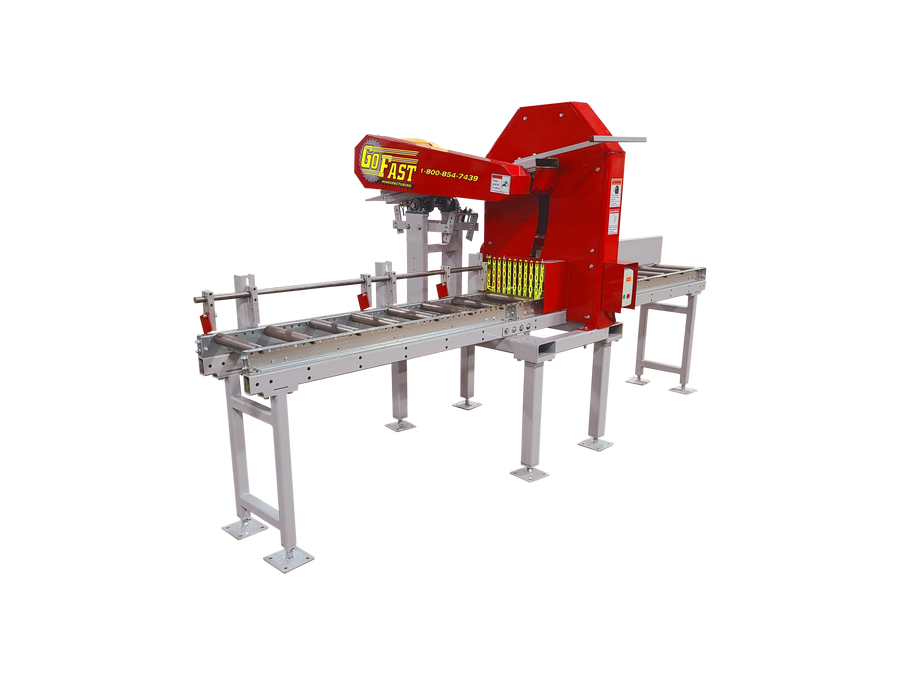

CS-Series
|
Mighty Chop
| |
|---|---|---|---|
| Automation level | Partially Automated | Manual (Standard) | Manual |
| Material capacity | Up to 10" Wide X 6" Tall | Up to 12" Wide X 8" Tall | Up to 6" Wide X 4" Tall |
| Power options | 10HP 3-Phase Standard | 7.5HP or 10HP 3-Phase Standard | 5HP 3-Phase Standard |
