thin-kerf resaws

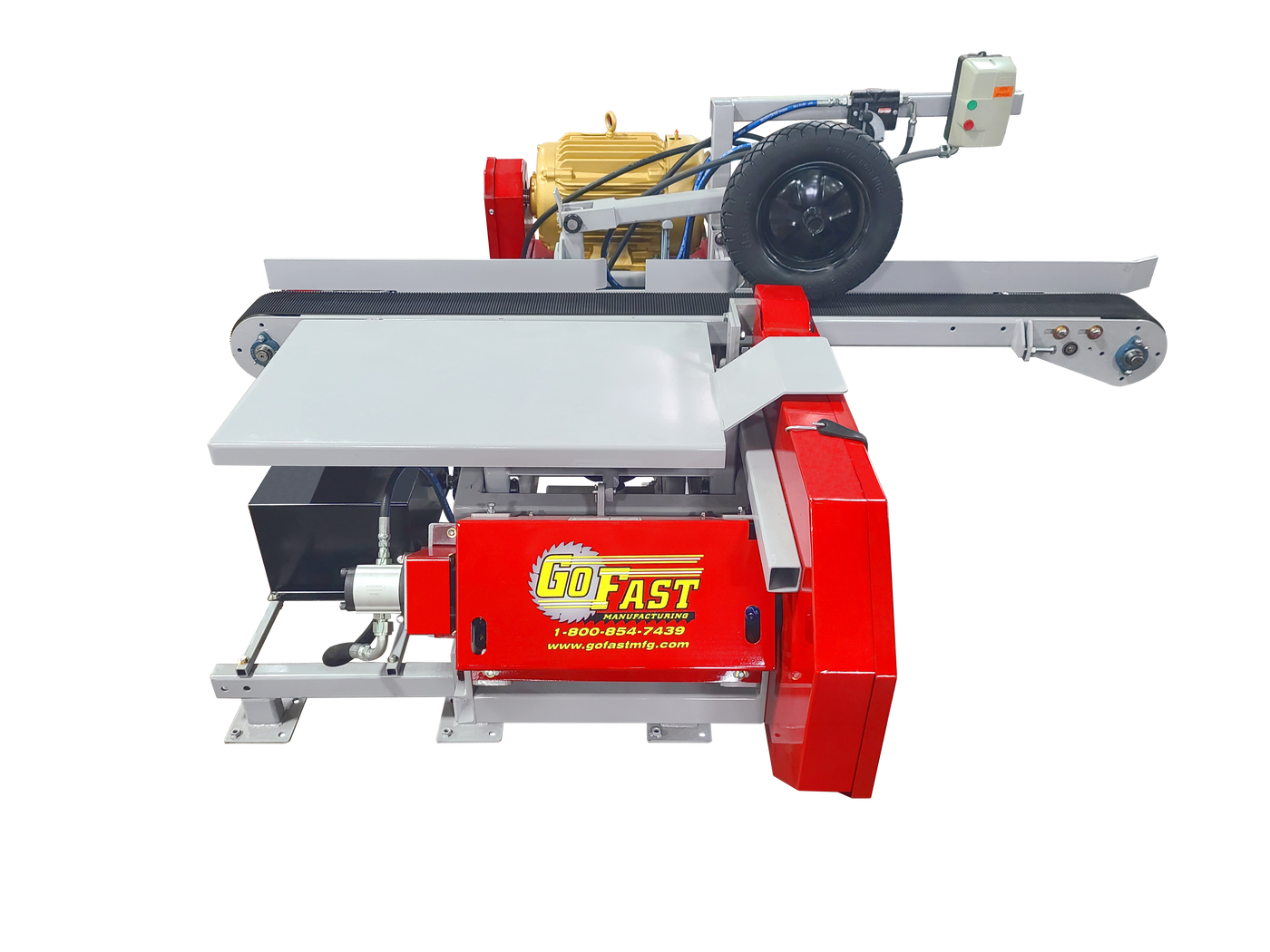

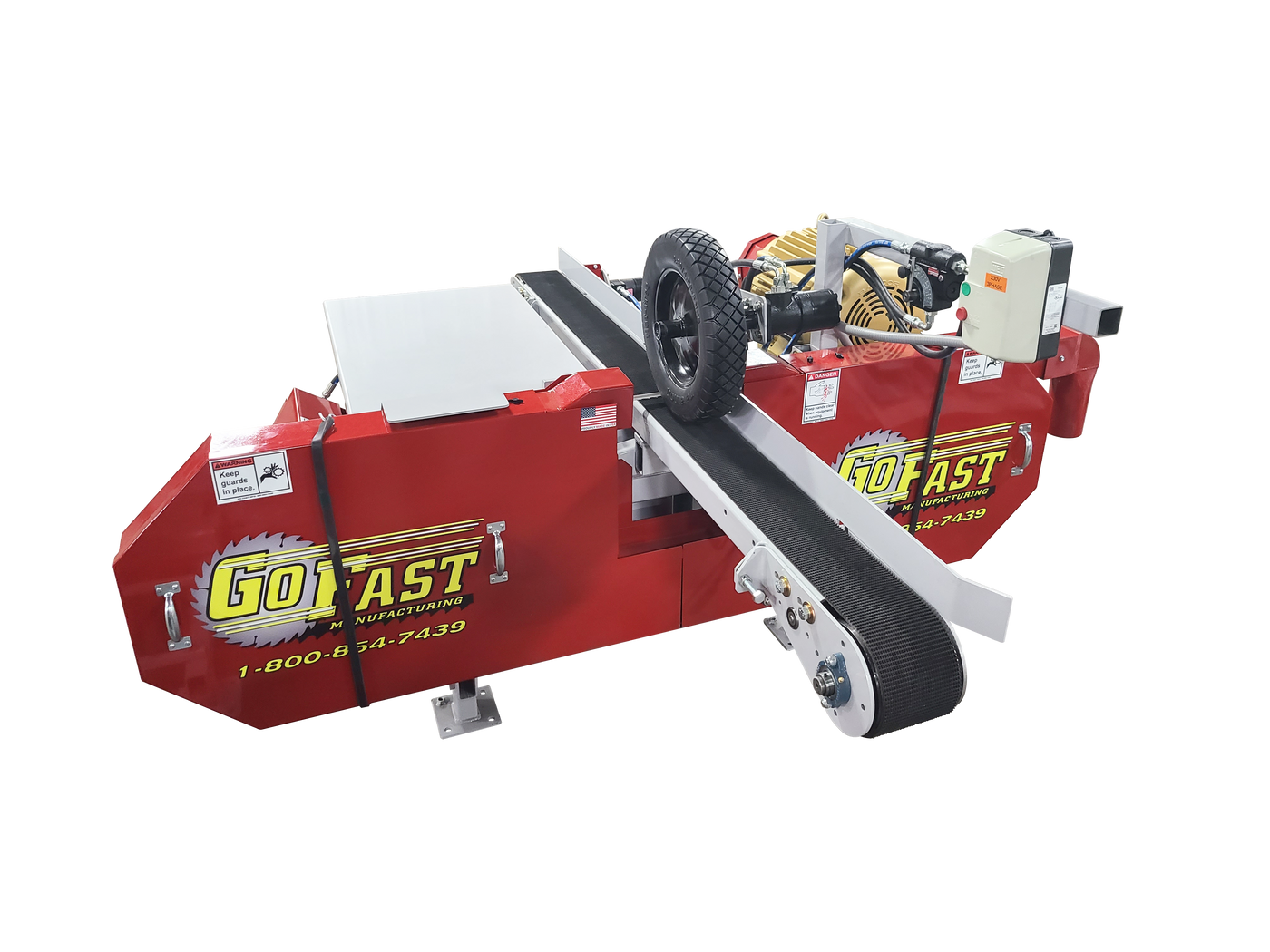

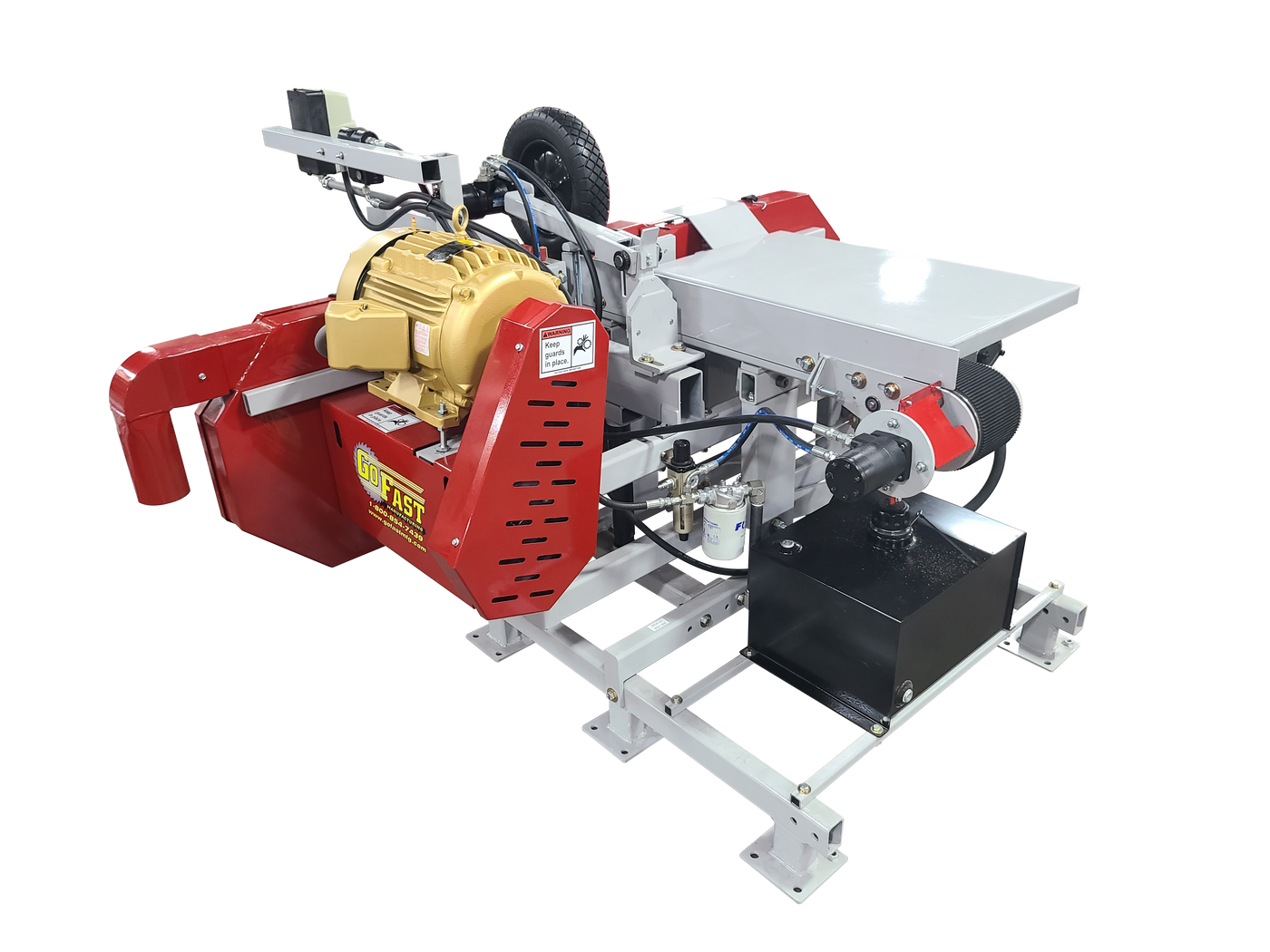

6x8 master resaw
The Go-Fast 6x8 Master Resaw is a highly adaptable, universal band resaw designed to handle all your sawing needs. Its compact design and variable speeds make it a perfect fit for any operation, big or small. Known for its accuracy and ease of adjustment, the 6x8 Master Resaw delivers consistent results with minimal effort. With multiple head configurations available, you can customize your setup with up to 6 heads for maximum efficiency and flexibility.
CLICK ON THE VIDEOS BELOW TO SEE OUR RESAWS IN ACTION
Overview
- Designed for low to medium levels of production
- Engineered for optimal performance and seamless operation
machine details
6" Powered Belt Conveyor
Easy Crank for Adjustable Blade Position
Top Mounted Powered Tire Hold Down Wheel
3” Right Side Fences (Standard)
Uses 15'1" Bands (1" & 1-1/4" Wide)
15HP Motor 3-Phase (Standard)
Self Contained Hydraulic System w/ Variable Feed Speed
0 – 120 FPM
Adjustable Air Blade Tension System
80 – 150 PSI Input Pressure
(1) 4” Dust Port
400 CFM Recommended
Blade & Belt Guards
88" Long x 93" Wide x 53" Tall
34" Feed Belt Height
3x2 & 6x2 Tubular Framing
Heavy-Duty 2-7/16" Arbors & Bearings
20" Solid Steel Band Wheels
Up to 8"
Unlimited
1/4" – 6" from Conveyor Belt
3,000–7,000 Chain Lug Cycles Per Hour
Rotating Board Kick-Off Fingers
Catch Hooks for Doubled Boards
Thickness Limiter Bar
Seamless Conveyor Surface
Flat-Top Design Minimizes Angular Transitions
5-Strand 2060 Infeed
Evenly Spaced Cogs
UHMW Wear Strips
See-Through Guarding
Quick-Access Doors
Optional E-Stop Door Interlock
2HP Electric Motor
Welded Steel Frame
3/8" Thick Steel Plate Pit
3x2 Structural Steel Framing
1/4" Thick Steel Side Plates
20HP Motor
22HP Honda Gas Engine
10HP Motor Single Phase (May Decrease Production Rates)
6” Tall Fences
Roller Guides
Air Tensioned Hold-Over Plate
Secondary Hold-Down Guide Wheel (Located at Outfeed Side of Blade)
Outfeed Powered Takeaway Roller w/ Non-Powered Pinch Wheel
Rip Fence Kit (Components for Ripping Boards Standing on Edge)
Single or Multi-Head Systems
Vertical Auto Feeder Belt
Infeed/Outfeed Powered Roll Case
Tailing Belt
Green Chain
Round Table
Stacking Rack
Cant Sizer Add-On
Board DeDusters
Automatic Board Stackers
Custom Data Collection Reports
Accessible via HMI or Email
Interfaces with Go Fast Machinery
Supports Custom Add-On E-Stops, Buttons & Sensors
Remote Access for Go Fast Engineering
Advanced Off-Site Diagnostics
Live Troubleshooting Screen in HMI
Displays Faults & Sensor States
Quick Diagnostic Access.
Board Counts
Machine Hours
Production Reports
1/3HP Electric Motor
Actuated Transition Plates
Toggle Switch to Air Cylinders
Dual 2060 Cogged Chain Strands
Seamless UHMW Transitions
Smooth Transfer to Board Stackers
Compare Our Resaws
Quick comparison to help you select the right machine for your operation.
| Machine name | |||||
|---|---|---|---|---|---|
| Feed Rate | Up to 120 FPM | Up to 120 FPM | Up to 120 FPM | Up to 80 FPM | Up to 120 FPM |
| Material capacity | Up to 6" Wide | Up to 8" Wide | Up to 12" Wide | Up to 16" Wide | Up to 16" Wide |
| Power options | 15HP 3-Phase Standard | 15HP 3-Phase Standard | 20HP 3-Phase Standard | 20HP 3-Phase Standard | 30HP 3-Phase Standard |
| Typical material use | Low – Medium Volume Production | Low – Medium Volume Production | Low – Medium Volume Production | Low – Medium Volume Production | Medium – High Volume Production |
