thin-kerf resaws

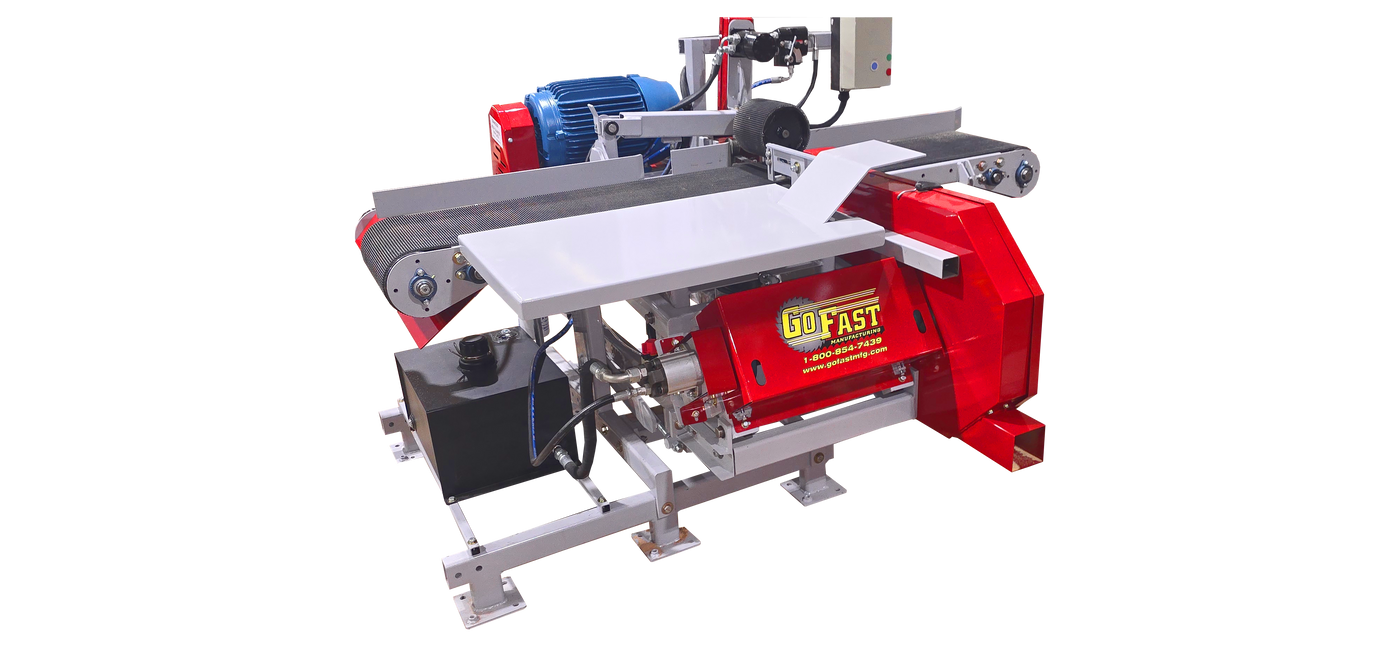

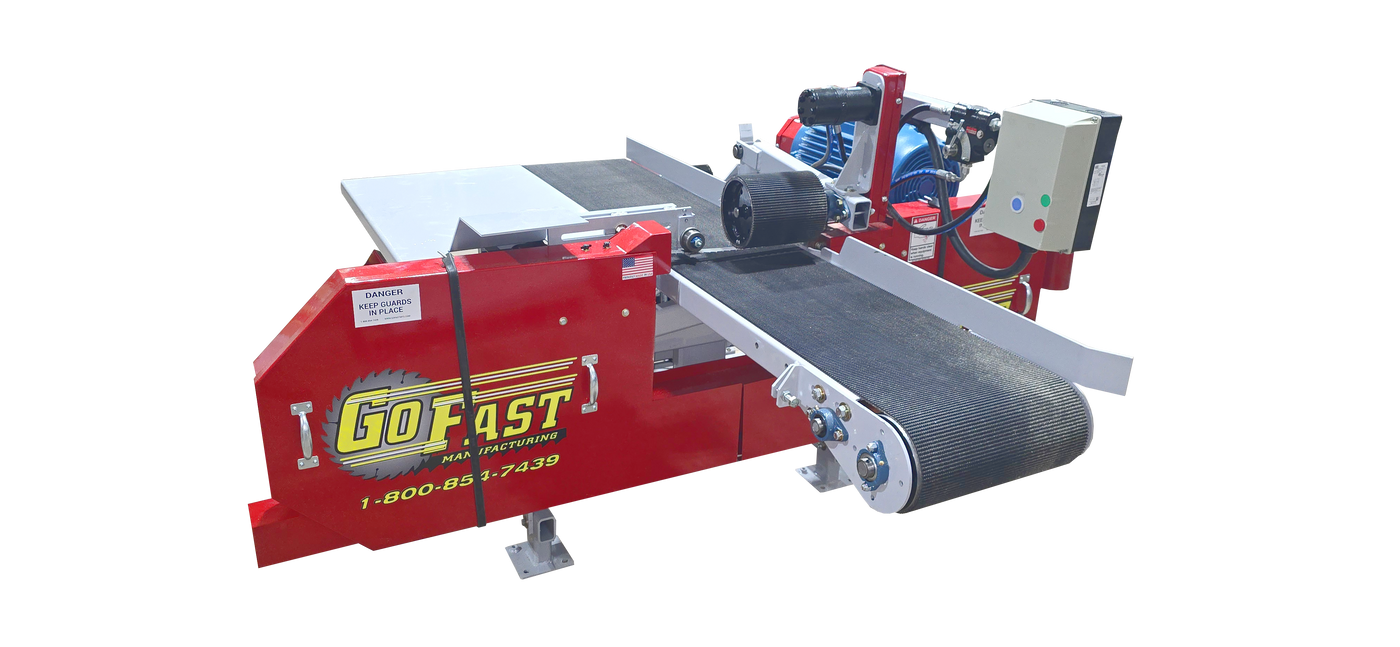

6x16 master resaw
The 6x16 Master Resaw combines power, control, and simplicity for high-performance sawing across a wide range of applications. It features a 16” wide conveyor, a 20HP motor with increased torque at lower speeds, and a rugged 7” diameter by 10” wide hold-down wheel to keep material secure through every cut. Standard roller guides and a bottom carbide guide ensure consistent, accurate results. Whether you're cutting boards, cants, or slabs, the 6x16 Master Resaw is engineered for dependable, everyday production. Like all Go Fast Master Resaws, it’s easy to adjust, built to last, and ready to deliver.
CLICK ON THE VIDEOS BELOW TO SEE OUR RESAWS IN ACTION
Overview
- Designed for low to medium levels of production
- Engineered for optimal performance and seamless operation
machine details
16" Powered Belt Conveyor
Easy Crank for Adjustable Blade Position
Top Mounted Powered Tire Hold Down Wheel
3” Right Side Fences (Standard)
Roller Blade Guides
Uses 15'1" Bands (1" & 1-1/4" Wide)
20HP Motor 3-Phase (Standard)
Self Contained Hydraulic System w/ Variable Feed Speed
0 – 80 FPM
Adjustable Air Blade Tension System
80 – 150 PSI Input Pressure
(1) 4” Dust Port
400 CFM Recommended
Blade & Belt Guards
88" Long x 93" Wide x 53" Tall
34" Feed Belt Height
3x2 & 6x2 Tubular Framing
Heavy-Duty 2-7/16" Arbors & Bearings
20" Solid Steel Band Wheels
Up to 16"
Unlimited
1/4" – 6" from Conveyor Belt
3,000–7,000 Chain Lug Cycles Per Hour
Rotating Board Kick-Off Fingers
Catch Hooks for Doubled Boards
Thickness Limiter Bar
Seamless Conveyor Surface
Flat-Top Design Minimizes Angular Transitions
5-Strand 2060 Infeed
Evenly Spaced Cogs
UHMW Wear Strips
See-Through Guarding
Quick-Access Doors
Optional E-Stop Door Interlock
2HP Electric Motor
Welded Steel Frame
3/8" Thick Steel Plate Pit
3x2 Structural Steel Framing
1/4" Thick Steel Side Plates
22HP Honda Gas Engine
6” Tall Fences
Air Tensioned Hold-Over Plate
Secondary Hold-Down Guide Wheel (Located at Outfeed Side of Blade)
Outfeed Powered Takeaway Roller w/ Non-Powered Pinch Wheel
Rip Fence Kit (Components for Ripping Boards Standing on Edge)
Single or Multi-Head Systems
Vertical Auto Feeder Belt
Infeed/Outfeed Powered Roll Case
Tailing Belt
Green Chain
Round Table
Stacking Rack
Cant Sizer Add-On
Board DeDusters
Automatic Board Stackers
Custom Data Collection Reports
Accessible via HMI or Email
Interfaces with Go Fast Machinery
Supports Custom Add-On E-Stops, Buttons & Sensors
Remote Access for Go Fast Engineering
Advanced Off-Site Diagnostics
Live Troubleshooting Screen in HMI
Displays Faults & Sensor States
Quick Diagnostic Access.
Board Counts
Machine Hours
Production Reports
1/3HP Electric Motor
Actuated Transition Plates
Toggle Switch to Air Cylinders
Dual 2060 Cogged Chain Strands
Seamless UHMW Transitions
Smooth Transfer to Board Stackers
Compare Our Resaws
Quick comparison to help you select the right machine for your operation.
| Machine name | |||||
|---|---|---|---|---|---|
| Feed Rate | Up to 120 FPM | Up to 120 FPM | Up to 120 FPM | Up to 80 FPM | Up to 120 FPM |
| Material capacity | Up to 6" Wide | Up to 8" Wide | Up to 12" Wide | Up to 16" Wide | Up to 16" Wide |
| Power options | 15HP 3-Phase Standard | 15HP 3-Phase Standard | 20HP 3-Phase Standard | 20HP 3-Phase Standard | 30HP 3-Phase Standard |
| Typical material use | Low – Medium Volume Production | Low – Medium Volume Production | Low – Medium Volume Production | Low – Medium Volume Production | Medium – High Volume Production |
