Trim saws

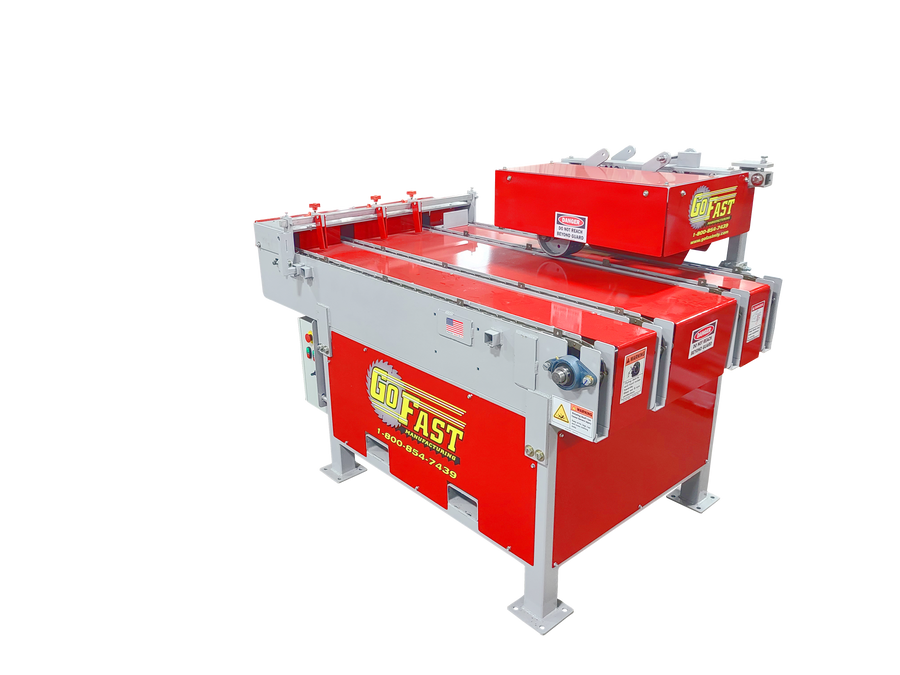

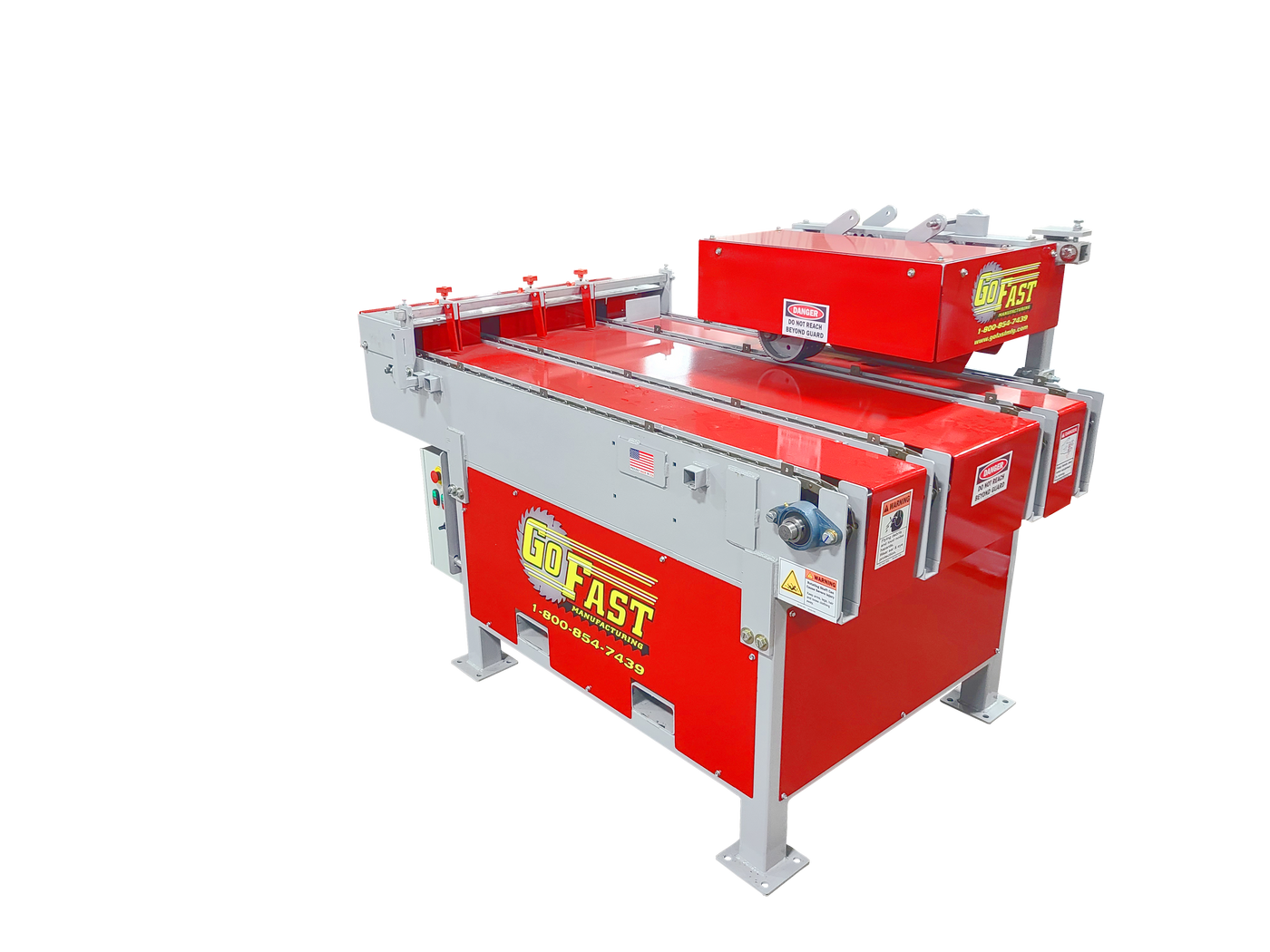

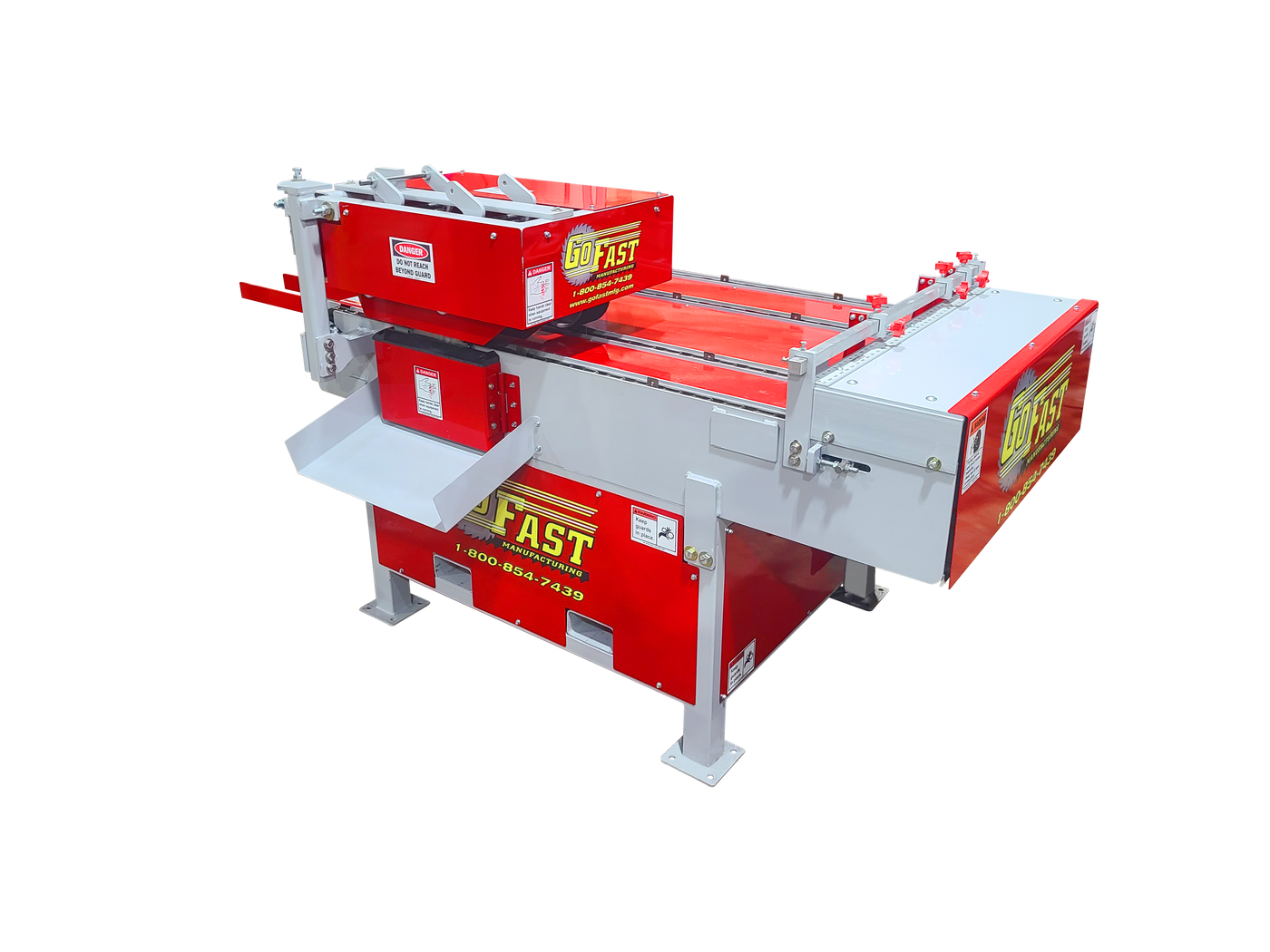

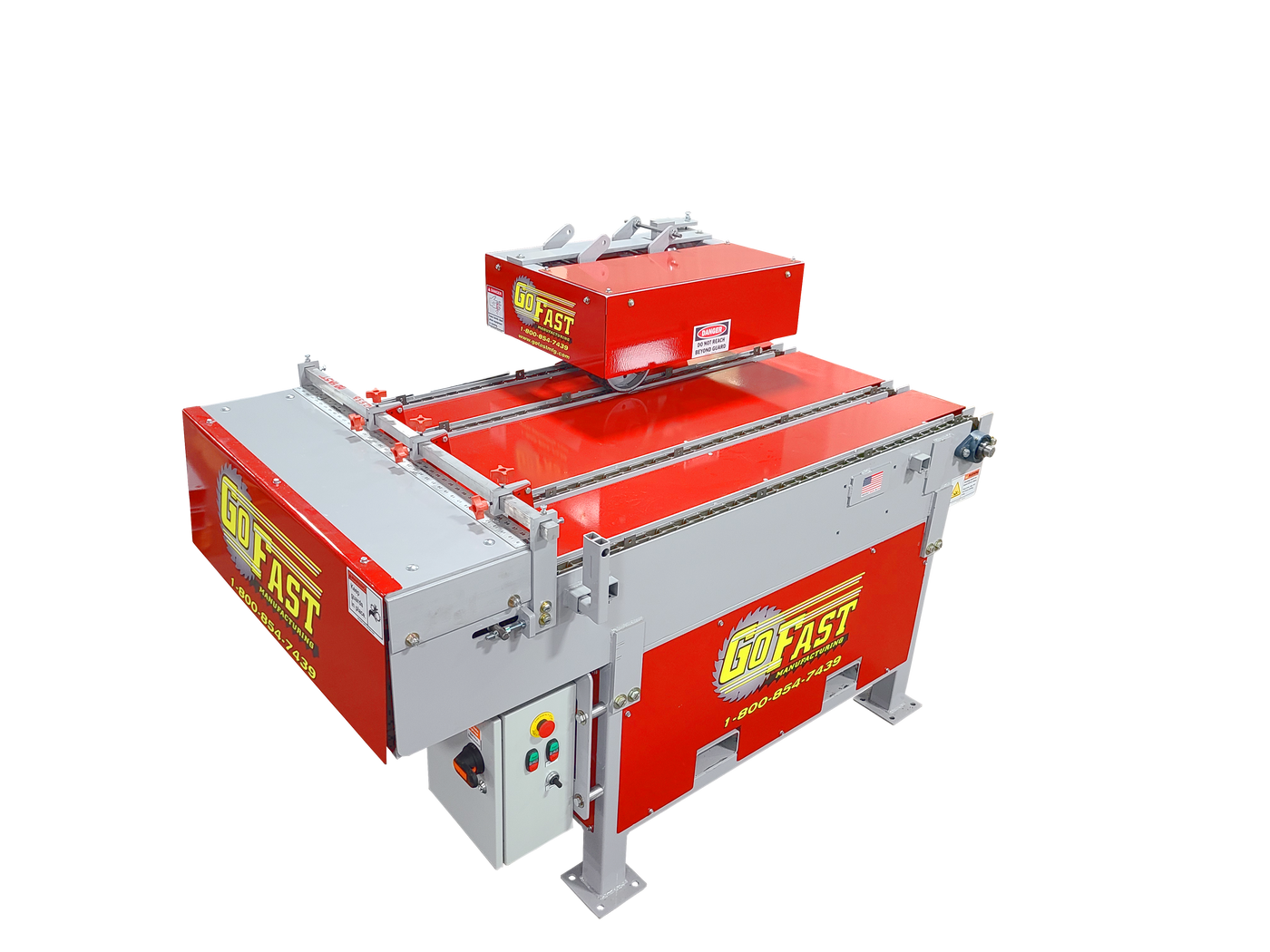

ts10 single end trimsaw

The Go Fast TS 10 Trim Saw is a heavy duty and compact machine, perfect for trimming boards to size. The easy to use moveable length stops are quick to adjust and allow for multiple, simultaneous board sizes.

Base Price $14,500

Parts & Support Download Spec Sheet

NOTE: Pricing shown is a starting point. Final quote depends on options and plant layout.

}

TS10 Video Library

SEE THE BEST TRIMSAW ON THE MARKET IN ACTION.

Shareable Playlist Here

FOOTAGE OF: PROMOVIDEOS • TEST-RUNS • INSTALLS • OPTIONS

CLICK ON THE VIDEOS BELOW TO SEE OUR TS10 TRIMSAWS IN ACTION

machine details

standard features

Panel Mounted Controls
5HP Blade Motor
1/2HP Infeed Chains
4 Strand Chain Infeed

Blade specifications

Blade:
10" Carbide Tipped
12" & 14" Options Available
Power:
5HP 3 Phase (Standard)
10HP 3 Phase Option Available

Cycle Speed

0 – 33 Cogs Per Minute

waste evacuation

4" Dust Ports (400 CFM Recommended)

frame & build

3" Square Tubular Framing
1-1/2" Blade Arbors & Bearings

safety

Enclosed Blade

dimensions

Length: 72"
Width: 48"
Height: 48"
Infeed Height: 36"

board width capacity:

8"

board height capacity

10" Blade: 2" Height
12" Blade: 3" Height
14" Blade: 4" Height

Board length capacities:

18"-60"

Custom Reports

Custom Data Collection Reports
Accessible via HMI or Email

Communication

Interfaces with Go Fast Machinery
Supports Custom Add-On E-Stops, Buttons & Sensors

Optional VPN

Remote Access for Go Fast Engineering
Advanced Off-Site Diagnostics

Troubleshooting

Live Troubleshooting Screen in HMI
Displays Faults & Sensor States
Quick Diagnostic Access.

Data Collection

Board Counts
Machine Hours
Production Reports

Adjustable Speed

3,000–7,000 Chain Lug Cycles Per Hour

Jam Prevention

Rotating Board Kick-Off Fingers
Catch Hooks for Doubled Boards
Thickness Limiter Bar
Seamless Conveyor Surface
Flat-Top Design Minimizes Angular Transitions

Infeed Chain

5-Strand 2060 Infeed
Evenly Spaced Cogs
UHMW Wear Strips

Guarding

See-Through Guarding
Quick-Access Doors
Optional E-Stop Door Interlock

Power

2HP Electric Motor

Construction

Welded Steel Frame
3/8" Thick Steel Plate Pit
3x2 Structural Steel Framing
1/4" Thick Steel Side Plates

Machine options

Extra Stops
Variable Infeed Speed
7.5HP Gas Motor
10HP Electric Blade Motor
Single Phase Electric
10" Blade Kit
12" Blade Kit
14" Blade Kit

System options

Automatic Infeed
Automatic Outfeed Stacker
Waste Conveyors
Take-Away Rollcase

Power

1/3HP Electric Motor

Setup Process

Actuated Transition Plates
Toggle Switch to Air Cylinders

Chain

Dual 2060 Cogged Chain Strands

Transitions

Seamless UHMW Transitions
Smooth Transfer to Board Stackers

Note Subject to change

Compare Our Trimsaws

Quick comparison to help you select the right machine for your operation.

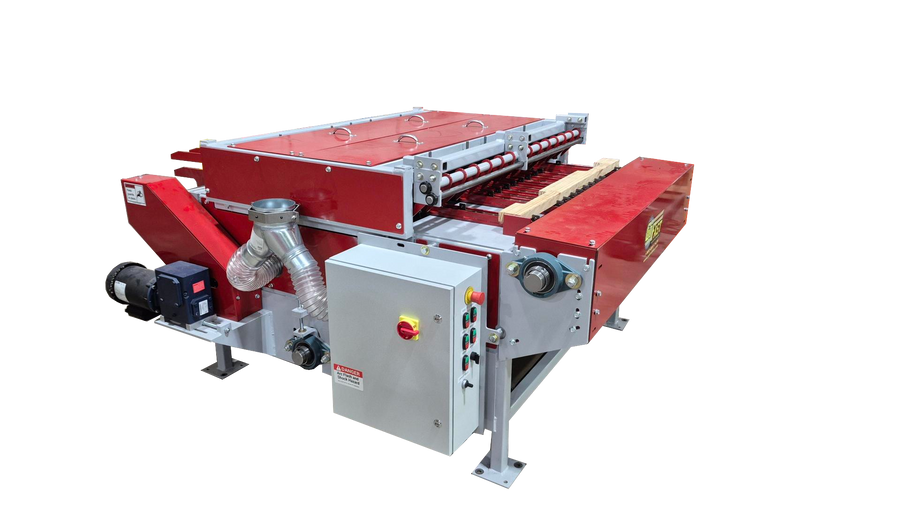

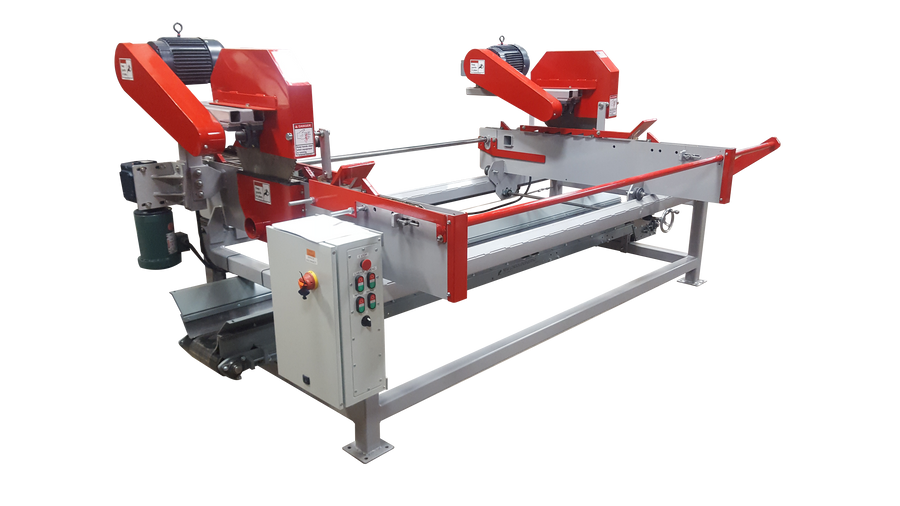

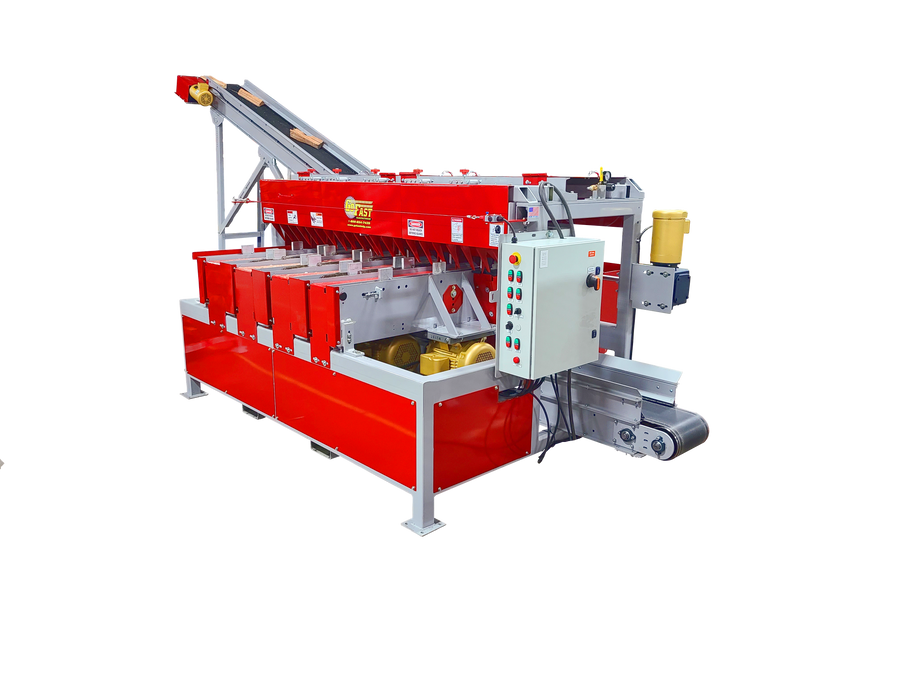

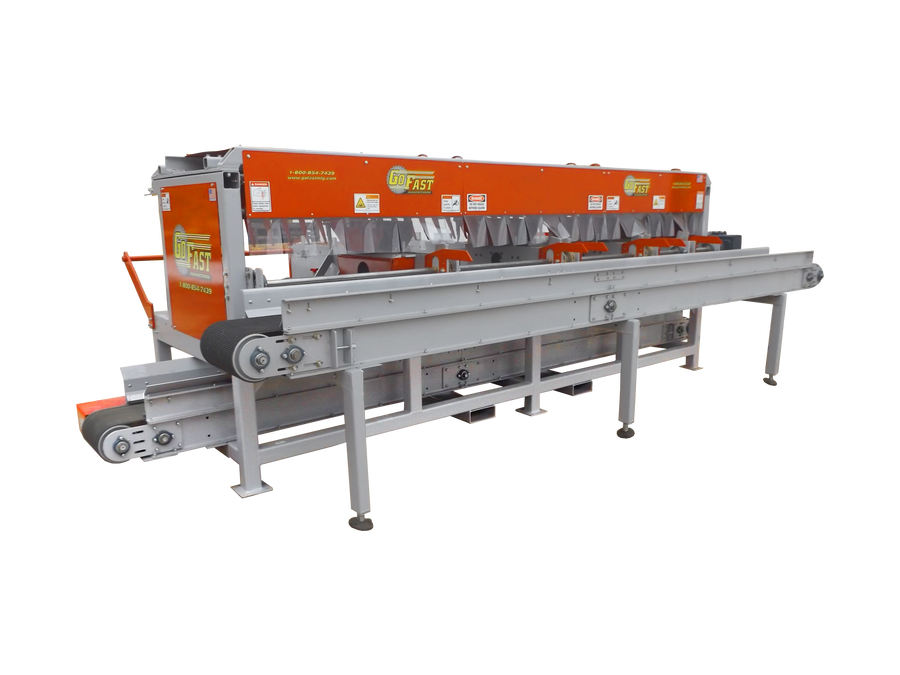

Machine name	MET-20 View machine	DET-20 View machine	TS-10 View machine	Stringer Trimmer View machine	firewood slab trim saw View machine
Number of Heads	3-8	2	1	1-4	2-6
Cycle rate	Up to 32 Cogs/Minute	Up to 32 Cogs/Minute	Up to 33 Cogs/Minute	Up to 40 Cogs/Minute	Up to 32 Cogs/Minute
Material capacity	Up to 12" Wide X 5" Tall	Up to 8" Wide x 4-1/2" Tall	Up to 8" Wide x 4" Tall	Up to 10" Wide x 2" Tall	Up to 8" Wide x 4" Tall
Power options	10HP 3-Phase Standard	5HP 3-Phase Standard	5HP 3-Phase Standard	5HP 3-Phase Standard	10HP 3-Phase Standard
