Dealer Deck

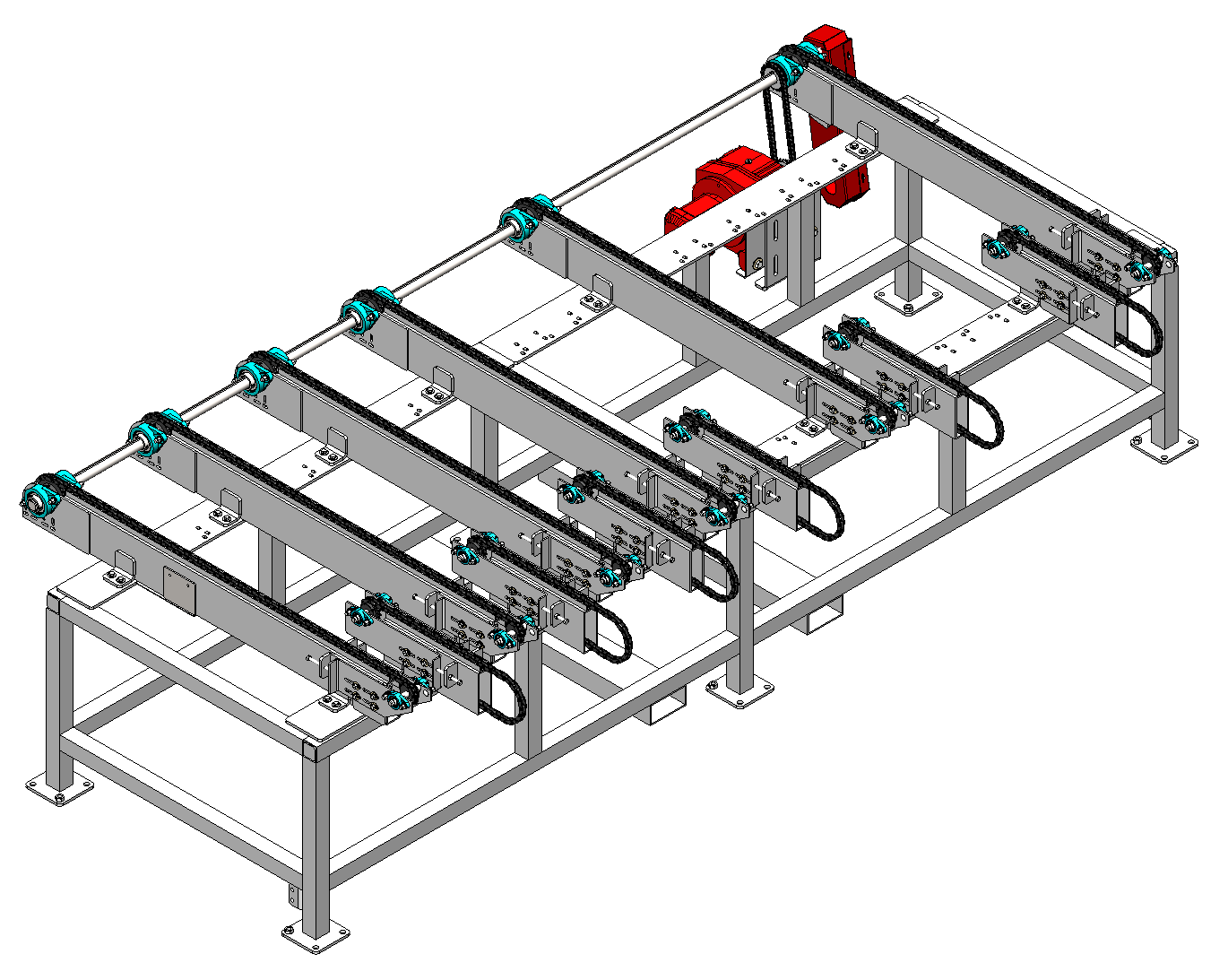

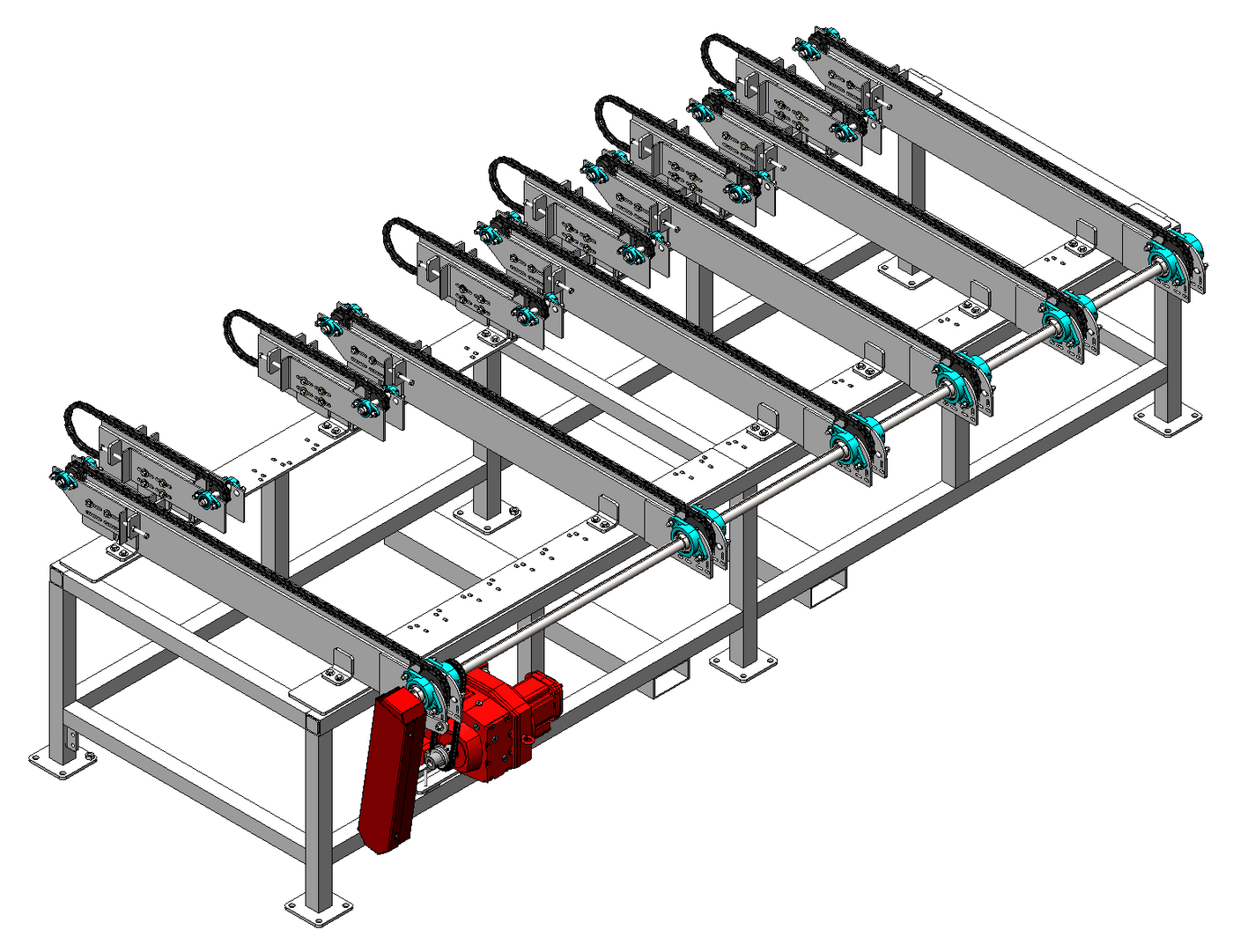

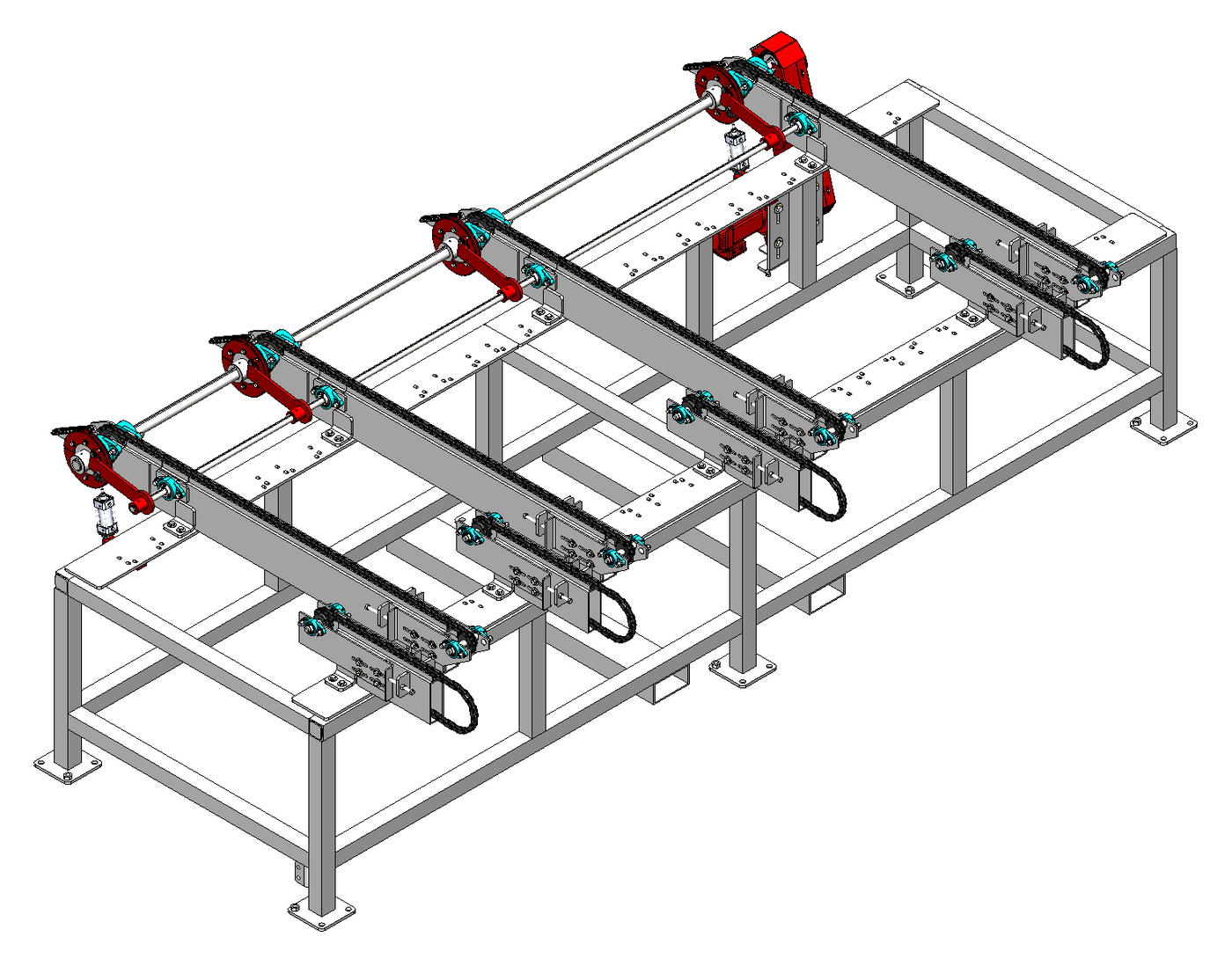

The Dealer Deck is the final staging section of the HD Unscrambler system, providing a controlled transfer point between the unscrambler and downstream equipment.
It delivers unscrambled material in a stable, consistent manner, to downstream machines. Final spacing and end alignment are handled by additional components such as even-end rollers or lug loaders where required.
Typically required for auto-fed systems, the Dealer Deck supports smooth, continuous flow into saws, stackers, and other automated equipment.
CLICK ON THE VIDEOS BELOW TO SEE OUR HD LUMBER UNSCRAMBLER SYSTEMS IN ACTION
machine details
3-Phase High Efficiency Helical Gearmotor
2060 Heavy-Duty Conveyor Chain
Heavy-Duty Modular Design
2" Drive Shaft
Four-Bolt Chain Idler Tensioners
Infeed Jump Chains
197" Long x 91" Wide x 48" Tall (20' Capacity Model)
w/ Lug Loader: 197" Long x 96" Wide x 49" Tall
48" Infeed Chain Height
Up to 24' (Smaller Capacities Available from 8' on up in 4' Increments)
Custom Data Collection Reports
Accessible via HMI or Email
Interfaces with Go Fast Machinery
Supports Custom Add-On E-Stops, Buttons & Sensors
Remote Access for Go Fast Engineering
Advanced Off-Site Diagnostics
Live Troubleshooting Screen in HMI
Displays Faults & Sensor States
Quick Diagnostic Access.
Board Counts
Machine Hours
Production Reports
3,000–7,000 Chain Lug Cycles Per Hour
Rotating Board Kick-Off Fingers
Catch Hooks for Doubled Boards
Thickness Limiter Bar
Seamless Conveyor Surface
Flat-Top Design Minimizes Angular Transitions
5-Strand 2060 Infeed
Evenly Spaced Cogs
UHMW Wear Strips
See-Through Guarding
Quick-Access Doors
Optional E-Stop Door Interlock
2HP Electric Motor
Welded Steel Frame
3/8" Thick Steel Plate Pit
3x2 Structural Steel Framing
1/4" Thick Steel Side Plates
Custom Frame Foot Risers (Increases Chain Infeed Height)
Additional Chain Strands & Custom Spacing (To Accommodate Varying Material Lengths)
Automatic Lumber Conveying (Utilizes two Sensors to Keep the Dealer Deck Full of Material)
Double-Stacked Lumber Sensing (Utilizes a Sensor to Pause the Dealer Deck if Boards Become Double-Stacked)
Even-End Rollers
Trim Saw Auto Feeder
Dealer Deck Stop Lever
Package Deck Extension
1/3HP Electric Motor
Actuated Transition Plates
Toggle Switch to Air Cylinders
Dual 2060 Cogged Chain Strands
Seamless UHMW Transitions
Smooth Transfer to Board Stackers
