UN1600C Unscrambler

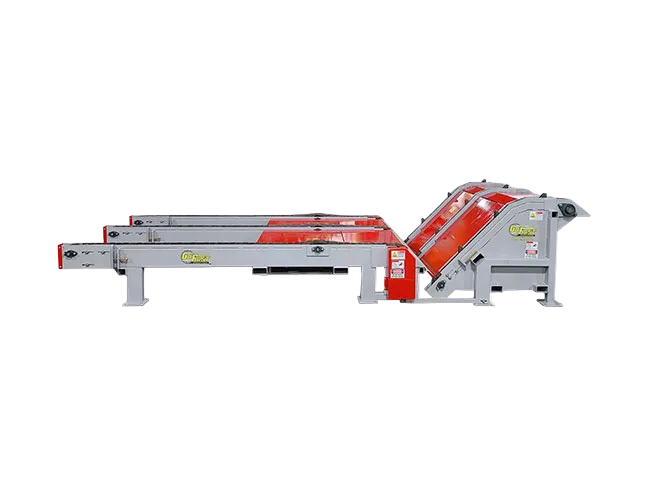

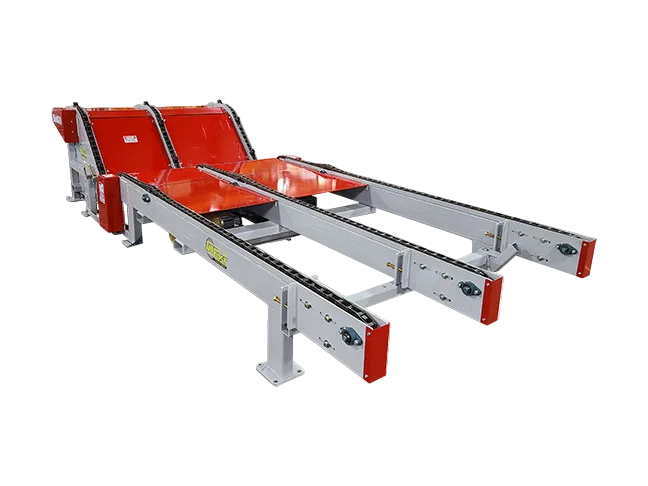

Introducing the Go-Fast 1600C: a conveying system designed for safety, durability, and efficiency in a compact package. Ideal for transferring material onto your system one piece at a time; it offers simple controls for operators.

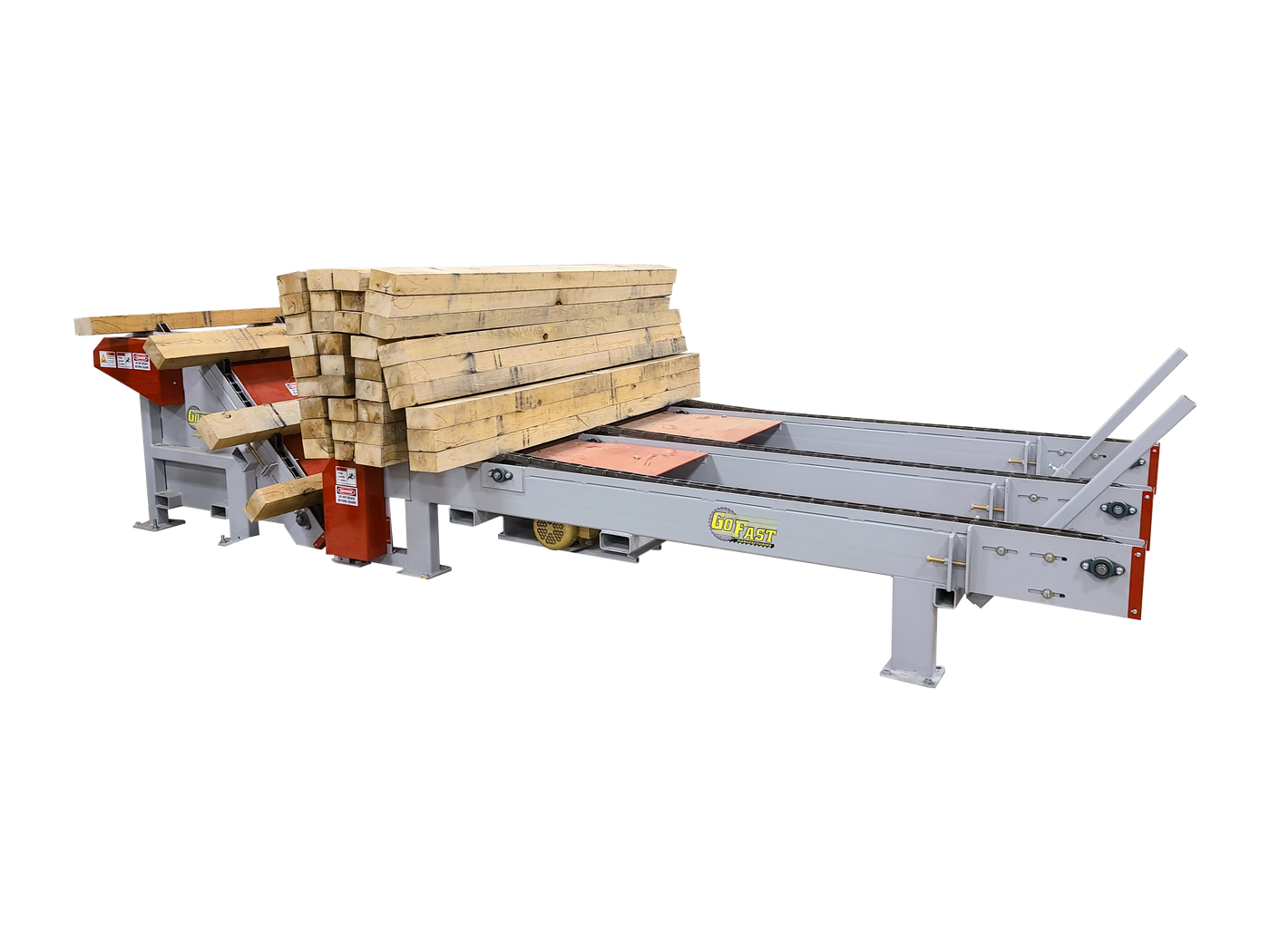

Just convey material on the package deck towards the v-pit until it falls in, then used the inclined conveyor to transfer pieces up and into your saw line. Utilizing heavy-duty 81X mill chain, it ensures reliable material transfer, while its 2 & 3HP gearmotors deliver impressive torque.

Optional features include a dealer deck and stop-and-go lever for added versatility and convenience. Experience seamless material handling with the Go-Fast 1600C.

Parts & Support Download Spec Sheet

NOTE: Pricing shown is a starting point. Final quote depends on options and plant layout.

}

Unscrambler Video Library

SEE THE BEST UNSCRAMBLER ON THE MARKET IN ACTION.

FOOTAGE OF: PROMOVIDEOS • TEST-RUNS • INSTALLS • OPTIONS

CLICK ON THE VIDEO BELOW TO SEE OUR STANDARD UNSCRAMBER IN ACTION

machine details

Standard Features

Package Deck and Unscrambler System (Dealer Deck Available)
Heavy-Duty 8x3 Tubular Chain Rails
81X Heavy Mill Chain & H78 Welded Steel Sprockets
UHMW Low-Friction Chain Strips

Power & Speed

Package Deck:
3HP Motor 3-Phase
Up to 21 FPM (Standard)

Unscrambler & Dealer Deck:
2HP Motor 3-Phase
Up to 54 FPM (Standard)

Dimensions

219" Long x 112" Wide x 46" Tall (Package Deck & Unscrambler)
24" Infeed Height
44" Outfeed Height (Unscrambler)
36" Outfeed Height (Dealer Deck)

Frame & Build

High Efficiency Helical Gearmotors
2" Drive Shafts
3x3 & 6x3 Tubular Framing

Board Length Capacity:

48" – 192" (Standard)

Custom Reports

Custom Data Collection Reports
Accessible via HMI or Email

Communication

Interfaces with Go Fast Machinery
Supports Custom Add-On E-Stops, Buttons & Sensors

Optional VPN

Remote Access for Go Fast Engineering
Advanced Off-Site Diagnostics

Troubleshooting

Live Troubleshooting Screen in HMI
Displays Faults & Sensor States
Quick Diagnostic Access.

Data Collection

Board Counts
Machine Hours
Production Reports

Adjustable Speed

3,000–7,000 Chain Lug Cycles Per Hour

Jam Prevention

Rotating Board Kick-Off Fingers
Catch Hooks for Doubled Boards
Thickness Limiter Bar
Seamless Conveyor Surface
Flat-Top Design Minimizes Angular Transitions

Infeed Chain

5-Strand 2060 Infeed
Evenly Spaced Cogs
UHMW Wear Strips

Guarding

See-Through Guarding
Quick-Access Doors
Optional E-Stop Door Interlock

Power

2HP Electric Motor

Construction

Welded Steel Frame
3/8" Thick Steel Plate Pit
3x2 Structural Steel Framing
1/4" Thick Steel Side Plates

Machine Options

Tipper Sprockets (Help Break Apart Frozen or Stickered Bundles)
Available w/ 2 or 3 Chain Strands
Frame Foot Risers (To Match Upstream Equipment Elevation)
Powered Outfeed Roll Case
Outfeed Conveyor Belt
Dealer Deck
Dealer Deck Stop Lever (Feeds Upstream Equipment One Piece at a Time)

System Options

Double-End Trimsaw
Multi-End Trimsaw
Standard Chopsaw
Multi-Head Chopsaw

Power

1/3HP Electric Motor

Setup Process

Actuated Transition Plates
Toggle Switch to Air Cylinders

Chain

Dual 2060 Cogged Chain Strands

Transitions

Seamless UHMW Transitions
Smooth Transfer to Board Stackers

Note Subject to change
